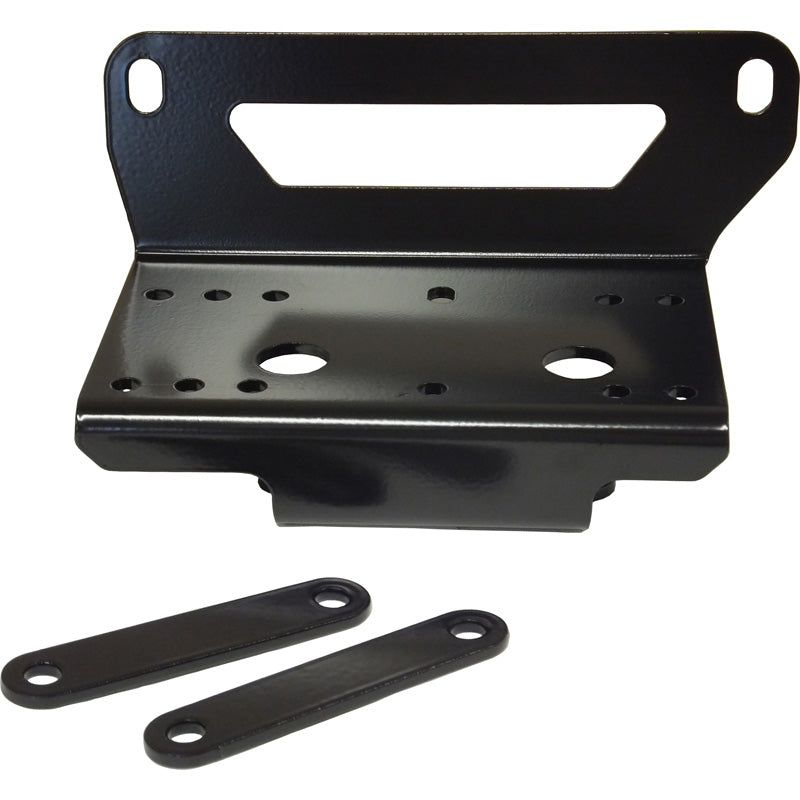

• WINCH MOUNT GATOR XUV550

WINCH MOUNT GATOR XUV550

WINCH MOUNT GATOR XUV550

Low stock! Only 1 left
$91.99
$91.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Mount designed to work with the following winches:

  • KFI: ST17/A2000/A2500-R2/A3000/U45-R2/U45w-R2/SE25/SE35/SE45-R2/SE45w-R2
  • KFI: AM-25/AM-35/AS-25/AS-35
  • KFI: AS-50/AS-50w
  • WARN: VRX 25/VRX 25-S/VRX 35/VRX 35-S
    • Requires Standard fairlead bracket
  • WARN: VRX 45/VRX 45-S
    • Requires Wide fairlead bracket
  • WARN: AXON 35/AXON 35-S/AXON 45RC
    • Requires Standard fairlead bracket
  • WARN: AXON 45/AXON 45-S/AXON 55/AXON 55-S
    • Requires Wide fairlead bracket
  • WARN: A2000/A2500/U2500/1.5ci/2.5ci/2.5ce/3.0ci/3.0ce/3.0s
  • WARN: RT15/RT25/RT30/XT15/XT25/XT30
  • WARN: RT40/XT40
  • WARN: Vantage 2000-3000 lb/Provantage 2500-3500 lb
  • WARN: Vantage 4000 lb/Provantage 4500 lb
  • RAMSEY: ATV2500/ATV3000
  • SUPERWINCH: Terra25/Terra35/Terra 45/A3500/LT2000/LT2500/LT3000/LT4000ATV/LT4000UTV
  • MILE MARKER: PE2.5/PE 3.5/VMX2.5/PE2000/PE3000/PE2500/PE3500
  • CYCLE COUNTRY: Work Power 1500 and 2500/Powermax 2500 and 3500
  • BADLAND: 2-Hole Winches: 68146/61258/61297/61840
  • BADLAND: Standard Winches: 68145/61604/61257/61383
  • BADLAND: WIDE Winches: 61384/68144/61605
  • CHAMPION: 2-Hole Winches: 10028/10032/12001/12002/12003/12004/13001/13005/100127/C20049/C20051/C20249/C30045 /C30145
  • CHAMPION: Standard Winches: 10013/10018/10020/10024/12053/12503/12551/13004/13050/13502/14001/14051/14061/14560/100129/100218/100243/100335
  • CHAMPION: WIDE Winches: 14008/14501/14551/14552/40252
  • KEEPER CORP. TRAKKER: KT2500/KT3000/KT2500C/KT3000C/KT4000/KT4000C
  • KEEPER CORP. TRAKKER: KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT: XRC 2.0
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT: XRC 3.0/XRC 4.0
  • XGEAR: X3000/X4000
    • 4- Hole Standard (3.00" x 4.875" bolt pattern
  • VENOM: 2000/2500/3000/3500/4000/4500/5000 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up
    • All with 3.00" x 6.600" bolt pattern mount-up
  • TRAVELLER: 1078311
  • TRAVELLER: 1078088/1078302
    • Require roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Possibly many others with the standard mounting patterns below, call to confirm.
    • 4- Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25/RP35

Specifications:

  • 100% MADE IN THE USA.
  • Constructed of 3/16" Grade 50 steel.
  • Plastic trimming may be required for certain models and winches.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Very easy to install.
  • Complete installation instructions included.
  • Mounts winch tucked back behind front bumper.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
WINCH MOUNT GATOR XUV550

$91.99

Product Specifications

General Information

Brandkfi
LabelWINCH MOUNT GATOR XUV550
Universevtt_utv
Categorypieces_et_accessoires_pour_treuils
Supplier Part #100940
ITL ID179-100940

Dimensions & Physical

Weight 6.261 lbs
Length11
Width6
Thickness6

Vehicle Fitment

Total Applications28
Applications JOHN DEERE GATOR RSX850I 2013JOHN DEERE GATOR RSX850I 2014JOHN DEERE GATOR RSX850I 2015JOHN DEERE GATOR RSX850I 2016JOHN DEERE GATOR RSX860E ALLJOHN DEERE GATOR RSX860I 2016JOHN DEERE GATOR RSX860I 2017JOHN DEERE GATOR RSX860M ALLJOHN DEERE GATOR XUV550 2012JOHN DEERE GATOR XUV550 2013JOHN DEERE GATOR XUV550 2014JOHN DEERE GATOR XUV550 2015JOHN DEERE GATOR XUV550 2016JOHN DEERE GATOR XUV550 S4 2012JOHN DEERE GATOR XUV550 S4 2013JOHN DEERE GATOR XUV550 S4 2014JOHN DEERE GATOR XUV550 S4 2015JOHN DEERE GATOR XUV550 S4 2016JOHN DEERE GATOR XUV560 2016JOHN DEERE GATOR XUV560 2017JOHN DEERE GATOR XUV560E ALLJOHN DEERE GATOR XUV560E S4 ALLJOHN DEERE GATOR XUV590E ALLJOHN DEERE GATOR XUV590E S4 ALLJOHN DEERE GATOR XUV590I 2016JOHN DEERE GATOR XUV590I 2017JOHN DEERE GATOR XUV590M ALLJOHN DEERE GATOR XUV590M S4 ALL
Makes JOHN DEERE
Models GATOR RSX850IGATOR RSX860EGATOR RSX860IGATOR RSX860MGATOR XUV550GATOR XUV550 S4GATOR XUV560GATOR XUV560EGATOR XUV560E S4GATOR XUV590EGATOR XUV590E S4GATOR XUV590IGATOR XUV590MGATOR XUV590M S4
Years 201220132014201520162017ALL
