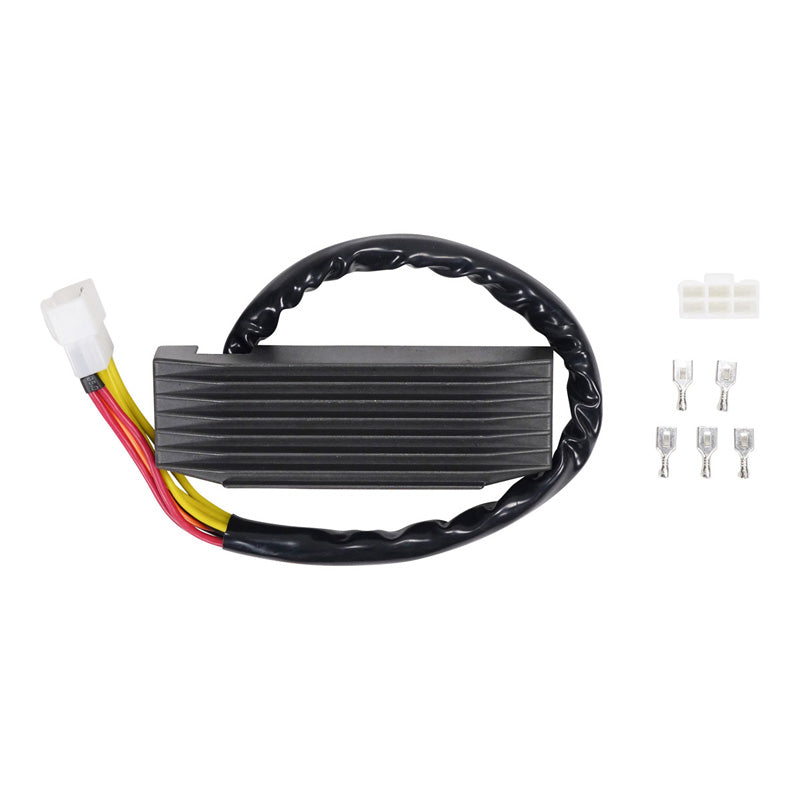

• VOLTAGE REGULATOR RECTIFIER (SUZUKI)

VOLTAGE REGULATOR RECTIFIER (SUZUKI)

VOLTAGE REGULATOR RECTIFIER (SUZUKI)

Out of stock
$169.99
$169.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

Brand new voltage regulator rectifier

Please note : There is two possible regulators for the VS 1400 GL Intruder model depending on the year of the vehicule. This regulator fits on 1996-2004 VS 1400 GL Intruder.

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • The Quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components.
  • All products shipped are tested

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions :
Width : 50mm
Length : 145mm
Height: 25mm
Wires length : 440mm

Other specifications :
Number of plugs : 1
Number of pins : 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelREGULATOR SUZ DR650 S|SE INTRUDER 800/1400 92-09
Universemoto
Categorysysteme_de_charge
Supplier Part #RM30010
ITL ID351-020012

Dimensions & Physical

Weight 0.88 lbs
Length6.3
Width6.3
Thickness2.8

Vehicle Fitment

Total Applications36
Applications SUZUKI DR650S 1992SUZUKI DR650S 1993SUZUKI DR650SE 1994SUZUKI DR650SE 1995SUZUKI VS1400 BOULEVARD S83 2005SUZUKI VS1400 BOULEVARD S83 2006SUZUKI VS1400 BOULEVARD S83 2007SUZUKI VS1400 BOULEVARD S83 2008SUZUKI VS1400 BOULEVARD S83 2009SUZUKI VS1400GL INTRUDER 1996SUZUKI VS1400GL INTRUDER 1997SUZUKI VS1400GL INTRUDER 1998SUZUKI VS1400GL INTRUDER 1999SUZUKI VS1400GL INTRUDER 2000SUZUKI VS1400GL INTRUDER 2001SUZUKI VS1400GL INTRUDER 2002SUZUKI VS1400GL INTRUDER 2003SUZUKI VS1400GL INTRUDER 2004SUZUKI VS800 BOULEVARD S50 2005SUZUKI VS800 BOULEVARD S50 2006SUZUKI VS800 BOULEVARD S50 2007SUZUKI VS800 BOULEVARD S50 2008SUZUKI VS800 BOULEVARD S50 2009SUZUKI VS800GL INTRUDER 1992SUZUKI VS800GL INTRUDER 1993SUZUKI VS800GL INTRUDER 1994SUZUKI VS800GL INTRUDER 1995SUZUKI VS800GL INTRUDER 1996SUZUKI VS800GL INTRUDER 1997SUZUKI VS800GL INTRUDER 1998SUZUKI VS800GL INTRUDER 1999SUZUKI VS800GL INTRUDER 2000SUZUKI VS800GL INTRUDER 2001SUZUKI VS800GL INTRUDER 2002SUZUKI VS800GL INTRUDER 2003SUZUKI VS800GL INTRUDER 2004
Makes SUZUKI
Models DR650SDR650SEVS1400 BOULEVARD S83VS1400GL INTRUDERVS800 BOULEVARD S50VS800GL INTRUDER
Years 199219931994199519961997199819992000200120022003200420052006200720082009
