• VOLTAGE REGULATOR RECTIFIER

VOLTAGE REGULATOR RECTIFIER

VOLTAGE REGULATOR RECTIFIER

Out of stock
$140.99
$140.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

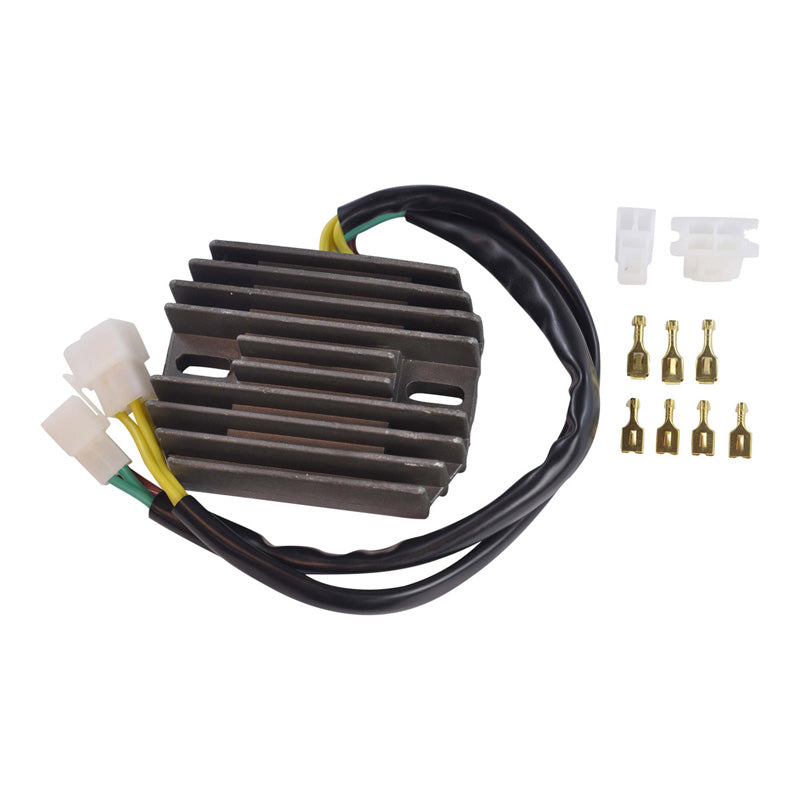

Brand new voltage regulator rectifier

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • The Quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components.
  • All products shipped are tested

*Certain models may need to be relocated.

*Beware, the DL V-Strom has two possible rectifier-regulators; the RM30F04 has lead wires coming off the rectifier-regulator and RM30806 has the direct connector.

Before buying please compare our picture to the part you have on the bike.

Please Note: when used as a replacement for the OEM 31400-300-035 (Honda CB 500 550 750 1969-1978), you must re-install your original connectors for this part to become plug and play.

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions :
Width : 33mm
Length : 103mm
Height: 80mm
Fixation holes center to center : 76mm
Wires length: 300mm

Other specifications :
Number of wires : 7
Number of plugs : 4
Number of pins : 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A / 300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelREGULATOR DUCATI 98-12|HON 86-03|SUZ 97-12
Universemoto
Categorysysteme_de_charge
Supplier Part #RM30F04
ITL ID351-020095

Dimensions & Physical

Weight 1.12 lbs
Length2
Width2.8
Thickness2.2

Vehicle Fitment

Total Applications37
Applications HONDA CBR600F HURRICANE 1987HONDA CBR600F HURRICANE 1988HONDA CBR600F HURRICANE 1989HONDA CBR600F HURRICANE 1990HONDA VF750C MAGNA 1994HONDA VF750C MAGNA 1995HONDA VF750C MAGNA 1996HONDA VF750C MAGNA 1997HONDA VF750C MAGNA 1998HONDA VF750C MAGNA 1999HONDA VF750C MAGNA 2000HONDA VF750C MAGNA 2001HONDA VF750C MAGNA 2002HONDA VF750C MAGNA 2003HONDA VFR750F INTERCEPTOR 1986HONDA VFR800FI INTERCEPTOR 1998HONDA VFR800FI INTERCEPTOR 1999HONDA VTR250 1990SUZUKI DL1000 V-STROM 2002SUZUKI DL1000 V-STROM 2003SUZUKI DL1000 V-STROM 2004SUZUKI DL1000 V-STROM 2005SUZUKI DL1000 V-STROM 2006SUZUKI DL1000 V-STROM 2007SUZUKI DL1000 V-STROM 2008SUZUKI DL1000 V-STROM 2009SUZUKI DL1000 V-STROM 2012SUZUKI TL1000R 1998SUZUKI TL1000R 1999SUZUKI TL1000R 2000SUZUKI TL1000R 2001SUZUKI TL1000R 2002SUZUKI TL1000S 1997SUZUKI TL1000S 1998SUZUKI TL1000S 1999SUZUKI TL1000S 2000SUZUKI TL1000S 2001
Makes HONDASUZUKI
Models CBR600F HURRICANEDL1000 V-STROMTL1000RTL1000SVF750C MAGNAVFR750F INTERCEPTORVFR800FI INTERCEPTORVTR250
Years 1986198719881989199019941995199619971998199920002001200220032004200520062007200820092012
