• SUREPOWER ECM BYPASS(POLARIS)

SUREPOWER ECM BYPASS(POLARIS)

SUREPOWER ECM BYPASS(POLARIS)

Low stock! Only 1 left
$251.99
$251.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Many years of Polaris ATV’s used the SurePower ECM module that controlled many things on the vehicle, including circuit breakers, cooling fan operation, and most importantly voltage regulation for the battery charging system. Most of these functions are reliable, except for the most important, the voltage regulator rectifier! The voltage regulator often fails, and leaves you faced with replacing the entire module just for this one function, which is likely to fail again.

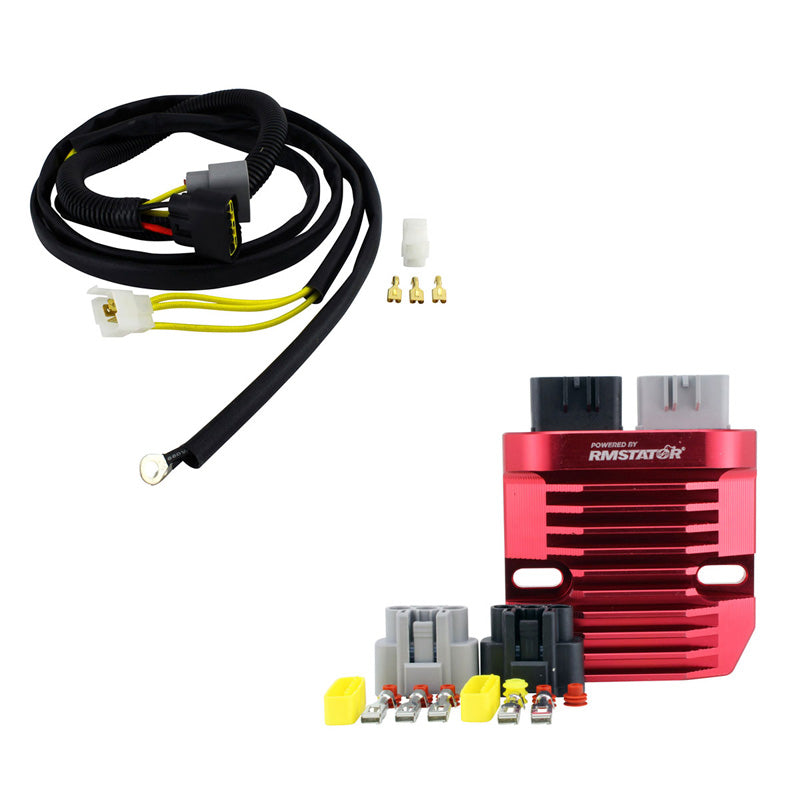

RMSTATOR now provides a SurePower module Regulator Bypass kit to eliminate this problem on these popular ATVs. Our kit includes our heavy duty CNC aluminum SERIES voltage regulator rectifier, a plug & play wiring harness, and mounting hardware. Simply mount the new voltage regulator on your frame, plug in and route the harness directly to the stator connector and battery terminals, and you’re ready to ride. You’ll never have to worry about a failing voltage regulator or SurePower replacement again.

BENEFITS OF SERIES VOLTAGE REGULATORS

SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.

Moreover, the regulator has our new machined billet aluminum casing which dissipate heat 33% better than standard molded casing.

Power only flows through the electrical components when the battery is charging.

Allows the stator to have lower current flowing when not used, extending its lifetime.

ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.

A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.

This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

INSTALL LIKE A PRO

We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.

  • Operation Temperature : -20° à 85°
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Automotive grade wiring harness with OEM-quality heavy-duty connectors

Made with the same Delphi connectors as OEM Polaris parts, our wiring harnesses are manufactured in a factory with controlled quality processes. They use the same Cross-Link braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.

Plug & Ride design

Our voltage regulator housings are manufactured to OEM specifications for a fast and easy installation.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
SUREPOWER ECM BYPASS(POLARIS)

$251.99

Product Specifications

General Information

Brandrms
LabelSUREPOWER ECM SPORTSMAM/RANGER 500 05-09
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS022-108420
ITL ID351-022010

Dimensions & Physical

Weight 2.7 lbs
Length11.5
Width13.5
Thickness3.5

Vehicle Fitment

Total Applications21
Applications POLARIS RANGER 500 2X4 2005POLARIS RANGER 500 2X4 2006POLARIS RANGER 500 2X4 2007POLARIS RANGER 500 2X4 2008POLARIS RANGER 500 4X4 2005POLARIS RANGER 500 4X4 2006POLARIS RANGER 500 4X4 2007POLARIS RANGER 500 6X6 2005POLARIS RANGER 500 EFI 4X4 2006POLARIS RANGER 500 EFI 4X4 2007POLARIS RANGER 700 EFI 6X6 2006POLARIS RANGER XP 700 2005POLARIS RANGER XP 700 2006POLARIS SPORTSMAN 450 2007POLARIS SPORTSMAN 500 6X6 2007POLARIS SPORTSMAN 500 6X6 2008POLARIS SPORTSMAN 500 EFI 2006POLARIS SPORTSMAN 500 EFI 2007POLARIS SPORTSMAN 500 HO 2008POLARIS SPORTSMAN 500 X2 2006POLARIS SPORTSMAN 500 X2 2007
Makes POLARIS
Models RANGER 500 2X4RANGER 500 4X4RANGER 500 6X6RANGER 500 EFI 4X4RANGER 700 EFI 6X6RANGER XP 700SPORTSMAN 450SPORTSMAN 500 6X6SPORTSMAN 500 EFISPORTSMAN 500 HOSPORTSMAN 500 X2
Years 2005200620072008
