• STATOR (YAMAHA)

STATOR (YAMAHA)

STATOR (YAMAHA)

Low stock! Only 1 left
$250.99
$250.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

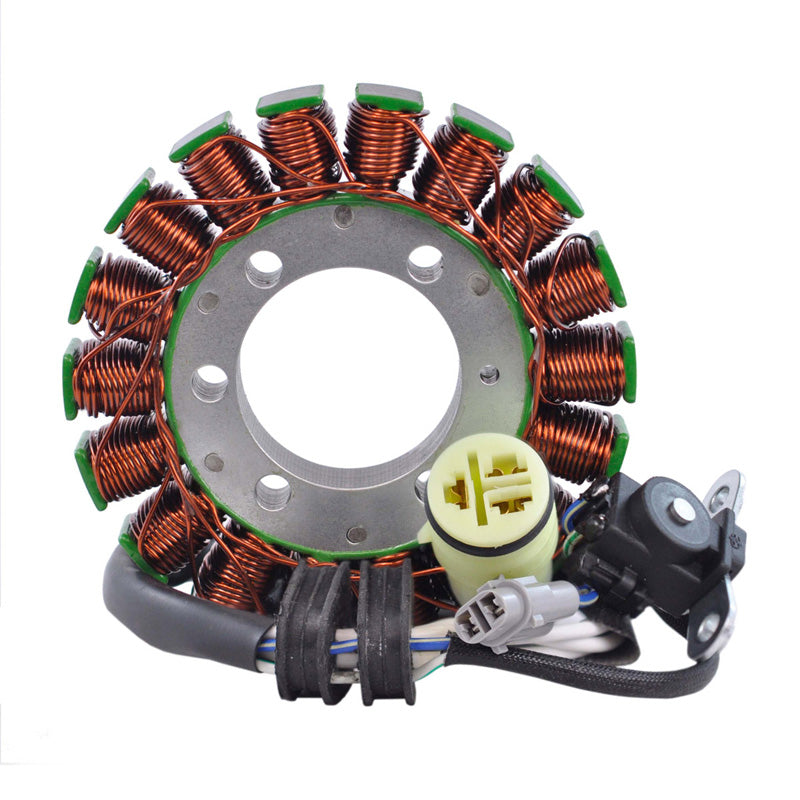

Brand new stator

  • Direct replacement to your original unit

  • Plug-and-play, direct fit, easy installation.

  • Highest grade lamination materials

  • Highest grade copper windings, resistant to 200 degrees Celsius.

  • Pick up pulsar coil included

  • Connector included

  • Rubber grommet included

  • All product shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 18 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 75 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.8 ohms +-20%
Pickup : Blue/White to White/Greeen = 250 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (YAMAHA)

$250.99

Product Specifications

General Information

Brandrms
LabelSTATOR YAM YFM700R RAPTOR 06-20
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM01397
ITL ID351-010169

Dimensions & Physical

Weight 2.09 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications20
Applications YAMAHA YFM700R - RAPTOR 700 2006YAMAHA YFM700R - RAPTOR 700 2007YAMAHA YFM700R - RAPTOR 700 2008YAMAHA YFM700R - RAPTOR 700 2009YAMAHA YFM700R - RAPTOR 700 2010YAMAHA YFM700R - RAPTOR 700 2011YAMAHA YFM700R - RAPTOR 700 2012YAMAHA YFM700R - RAPTOR 700 2013YAMAHA YFM700R - RAPTOR 700 2014YAMAHA YFM700R - RAPTOR 700 2015YAMAHA YFM700R - RAPTOR 700 2016YAMAHA YFM700R - RAPTOR 700 2017YAMAHA YFM700R - RAPTOR 700 2018YAMAHA YFM700R - RAPTOR 700 2019YAMAHA YFM700R - RAPTOR 700 2020YAMAHA YFM700R - RAPTOR 700 2021YAMAHA YFM700R - RAPTOR 700 2022YAMAHA YFM700R - RAPTOR 700 2023YAMAHA YFM700R - RAPTOR 700 2024YAMAHA YFM700R - RAPTOR 700 2025
Makes YAMAHA
Models YFM700R - RAPTOR 700
Years 20062007200820092010201120122013201420152016201720182019202020212022202320242025
