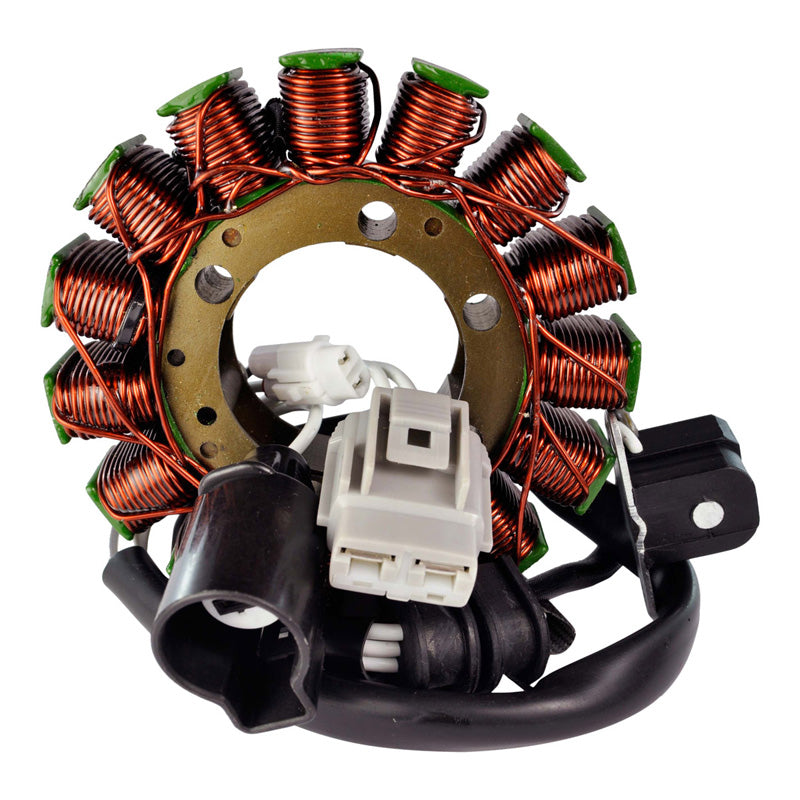

• STATOR (YAMAHA)

STATOR (YAMAHA)

STATOR (YAMAHA)

9 in stock
$280.99
$280.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Brand new stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 41mm
Exterior diameter : 105mm
Thickness : 19mm
Length of wires stator to grommet : 65mm
Length of wires grommet to plug : 400mm
Length of pickup coil's wire to grommet : 65mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.4ohms +/-20%
Pickup : White to Grey = 500ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Secure your shopping experience with various safe and trusted payment methods.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
FITMENT INFORMATION BELOW
STATOR (YAMAHA)

$280.99

Product Specifications

General Information

Brandrms
LabelSTATOR YAM RHINO|VIKING 700 08-24
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM01191
ITL ID351-010090

Dimensions & Physical

Weight 2.18 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications44
Applications YAMAHA YX70C - VIKING VI 700 EPS 2015YAMAHA YX70C - VIKING VI 700 EPS 2016YAMAHA YX70C - VIKING VI 700 EPS 2017YAMAHA YX70C - VIKING VI 700 EPS 2018YAMAHA YX70C - VIKING VI 700 EPS 2019YAMAHA YX70C - VIKING VI 700 EPS 2020YAMAHA YX70C - VIKING VI 700 EPS 2021YAMAHA YX70C - VIKING VI 700 EPS 2022YAMAHA YX70C - VIKING VI 700 EPS 2023YAMAHA YX70C - VIKING VI 700 EPS 2024YAMAHA YX70C - VIKING VI 700 EPS 2025YAMAHA YX70CF VIKING VI 700 2015YAMAHA YX70M - VIKING 700 2014YAMAHA YX70M - VIKING 700 2015YAMAHA YX70M - VIKING 700 2016YAMAHA YX70M - VIKING 700 2017YAMAHA YX70M - VIKING 700 2018YAMAHA YX70M VIKING 700 EPS 2015YAMAHA YX70M VIKING 700 EPS 2016YAMAHA YX70M VIKING 700 EPS 2017YAMAHA YX70M VIKING 700 EPS 2018YAMAHA YX70M VIKING 700 EPS 2019YAMAHA YX70M VIKING 700 EPS 2020YAMAHA YX70M VIKING 700 EPS 2021YAMAHA YX70M VIKING 700 EPS 2022YAMAHA YX70M VIKING 700 EPS 2023YAMAHA YX70M VIKING 700 EPS 2024YAMAHA YX70M VIKING 700 EPS 2025YAMAHA YX70M VIKING 700 EPS SE 2015YAMAHA YX70M VIKING 700 EPS SE 2016YAMAHA YX70M VIKING 700 EPS SE 2017YAMAHA YX70M VIKING 700 EPS SE 2018YAMAHA YX70M VIKING 700 EPS SE 2019YAMAHA YX70M VIKING 700 EPS SE 2020YAMAHA YX70M VIKING 700 EPS SE 2021YAMAHA YX70M VIKING 700 EPS SE 2022YAMAHA YX70M VIKING 700 EPS SE 2023YAMAHA YX70M VIKING 700 EPS SE 2024YAMAHA YX70M VIKING 700 EPS SE 2025YAMAHA YXR7F - RHINO 700 FI 4WD 2008YAMAHA YXR7F - RHINO 700 FI 4WD 2009YAMAHA YXR7F - RHINO 700 FI 4WD 2011YAMAHA YXR7F - RHINO 700 FI 4WD 2012YAMAHA YXR7F - RHINO 700 FI 4WD 2013
Makes YAMAHA
Models YX70C - VIKING VI 700 EPSYX70CF VIKING VI 700YX70M - VIKING 700YX70M VIKING 700 EPSYX70M VIKING 700 EPS SEYXR7F - RHINO 700 FI 4WD
Years 20082009201120122013201420152016201720182019202020212022202320242025
