• STATOR (YAMAHA)

STATOR (YAMAHA)

STATOR (YAMAHA)

Low stock! Only 2 left
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

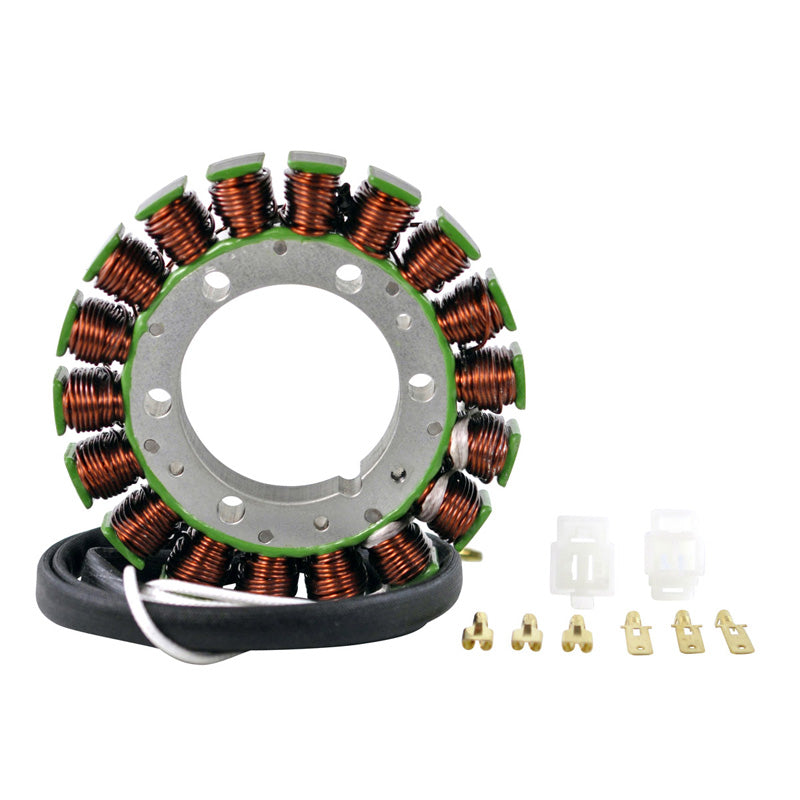

Brand new stator

  • You must re-install your original grommet and the new connector (see picture).
  • Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 17 mm
Length of wires stator : 700 mm

Other specifications :
Number of wires : 4
Number of pins : 4

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (YAMAHA)

$206.99

Product Specifications

General Information

Brandrms
LabelSTATOR YAM VIRAGO 750-1100 86-99
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01059
ITL ID351-010048

Dimensions & Physical

Weight 2.66 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications24
Applications YAMAHA XV1100 VIRAGO 1986YAMAHA XV1100 VIRAGO 1987YAMAHA XV1100 VIRAGO 1988YAMAHA XV1100 VIRAGO 1989YAMAHA XV1100 VIRAGO 1990YAMAHA XV1100 VIRAGO 1991YAMAHA XV1100 VIRAGO 1992YAMAHA XV1100 VIRAGO 1993YAMAHA XV1100 VIRAGO 1994YAMAHA XV1100 VIRAGO 1995YAMAHA XV1100 VIRAGO 1996YAMAHA XV1100 VIRAGO 1997YAMAHA XV1100 VIRAGO 1998YAMAHA XV1100 VIRAGO 1999YAMAHA XV750 VIRAGO 1988YAMAHA XV750 VIRAGO 1989YAMAHA XV750 VIRAGO 1990YAMAHA XV750 VIRAGO 1991YAMAHA XV750 VIRAGO 1992YAMAHA XV750 VIRAGO 1993YAMAHA XV750 VIRAGO 1994YAMAHA XV750 VIRAGO 1995YAMAHA XV750 VIRAGO 1996YAMAHA XV750 VIRAGO 1997
Makes YAMAHA
Models XV1100 VIRAGOXV750 VIRAGO
Years 19861987198819891990199119921993199419951996199719981999
