• STATOR (VICTORY)

STATOR (VICTORY)

STATOR (VICTORY)

Out of stock
$295.99
$295.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

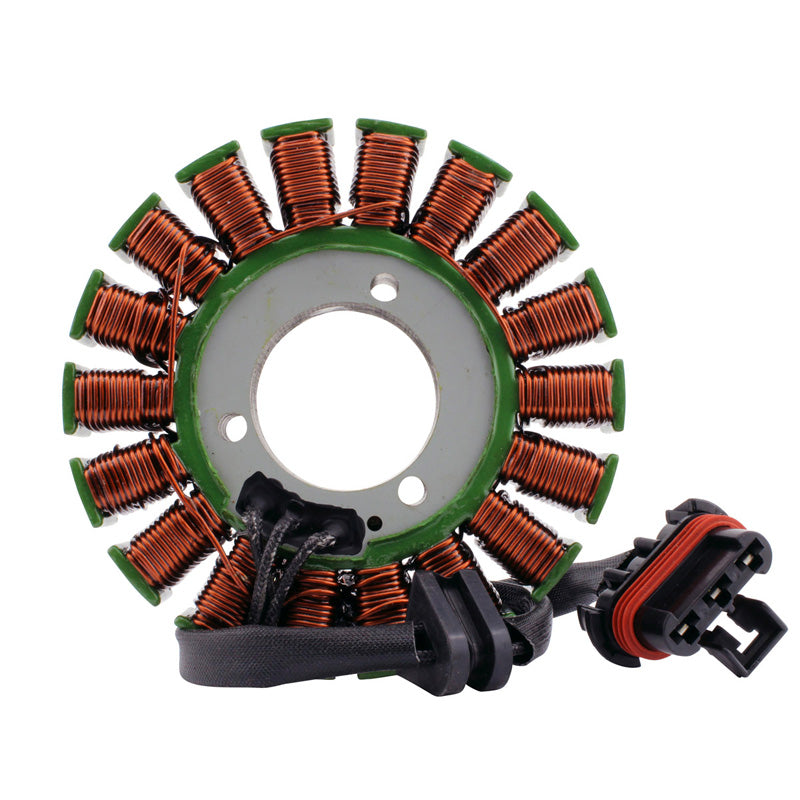

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 125 mm
Thickness : 21 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 250 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black to Black = 0.3 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

PLEASE NOTE : The OEM 2204532 is corresponding to the kit Stator + Rotor offered by Polaris Victory and it is a replacement for all the following OEM :

4011061
4011887
4011920
4012363
4012364

Our part corresponds to the stator in this kit WE DO NOT INCLUDED the rotor.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR VIC HAMMER|KINGPIN|VEGAS|8 BALL 08-17
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS010-100178
ITL ID351-010270

Dimensions & Physical

Weight 3.14 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications100
Applications VICTORY BOARDWALK 2013VICTORY BOARDWALK 2014VICTORY CROSS COUNTRY 2010VICTORY CROSS COUNTRY 2011VICTORY CROSS COUNTRY 2012VICTORY CROSS COUNTRY 2013VICTORY CROSS COUNTRY 2014VICTORY CROSS COUNTRY 2015VICTORY CROSS COUNTRY 2016VICTORY CROSS COUNTRY 2017VICTORY CROSS COUNTRY TOUR 2012VICTORY CROSS COUNTRY TOUR 2013VICTORY CROSS COUNTRY TOUR 2014VICTORY CROSS COUNTRY TOUR 2015VICTORY CROSS COUNTRY TOUR 2016VICTORY CROSS COUNTRY TOUR 2017VICTORY CROSS ROADS 2010VICTORY CROSS ROADS 8-BALL 2014VICTORY CROSS ROADS CLASSIC 2013VICTORY CROSS ROADS CLASSIC 2014VICTORY CROSS ROADS CUSTOM 2011VICTORY CROSS ROADS CUSTOM 2012VICTORY CROSS ROADS LE 2012VICTORY GUNNER 2015VICTORY GUNNER 2016VICTORY GUNNER 2017VICTORY HAMMER 2008VICTORY HAMMER 2009VICTORY HAMMER 2010VICTORY HAMMER 2011VICTORY HAMMER 8 BALL 2012VICTORY HAMMER 8 BALL 2013VICTORY HAMMER 8 BALL 2014VICTORY HAMMER 8 BALL 2015VICTORY HAMMER S 2008VICTORY HAMMER S 2009VICTORY HAMMER S 2010VICTORY HAMMER S 2011VICTORY HAMMER S 2012VICTORY HAMMER S 2016VICTORY HAMMER S 2017VICTORY HARD-BALL 2012VICTORY HARD-BALL 2013VICTORY HIGHBALL 2012VICTORY HIGHBALL 2013VICTORY HIGHBALL 2014VICTORY HIGHBALL 2015VICTORY HIGHBALL 2016VICTORY HIGHBALL 2017VICTORY JACKPOT 2008VICTORY JACKPOT 2009VICTORY JACKPOT 2010VICTORY JACKPOT 2011VICTORY JACKPOT 2012VICTORY JACKPOT 2013VICTORY JACKPOT 2014VICTORY JUDGE 2013VICTORY JUDGE 2014VICTORY KINGPIN 2008VICTORY KINGPIN 2009VICTORY KINGPIN 2010VICTORY KINGPIN 2011VICTORY KINGPIN 2012VICTORY KINGPIN 8 BALL 2010VICTORY KINGPIN 8 BALL 2011VICTORY KINGPIN TOUR 2008VICTORY KINGPIN TOUR 2009VICTORY MAGNUM 2015VICTORY MAGNUM 2016VICTORY MAGNUM 2017VICTORY VEGAS 2008VICTORY VEGAS 2009VICTORY VEGAS 2010VICTORY VEGAS 2011VICTORY VEGAS 2012VICTORY VEGAS 2016VICTORY VEGAS 2017VICTORY VEGAS 8 BALL 2013VICTORY VEGAS 8 BALL 2014VICTORY VEGAS 8 BALL 2015VICTORY VEGAS 8 BALL 2017VICTORY VISION (ARLEN NESS) 2009VICTORY VISION (ARLEN NESS) 2010VICTORY VISION (ARLEN NESS) 2011VICTORY VISION (ARLEN NESS) 2012VICTORY VISION (ARLEN NESS) 2013VICTORY VISION 8 BALL 2010VICTORY VISION 8 BALL 2011VICTORY VISION STREET 2008VICTORY VISION STREET 2009VICTORY VISION TOUR 2008VICTORY VISION TOUR 2009VICTORY VISION TOUR 2010VICTORY VISION TOUR 2011VICTORY VISION TOUR 2012VICTORY VISION TOUR 2013VICTORY VISION TOUR 2014VICTORY VISION TOUR 2015VICTORY VISION TOUR 2016VICTORY VISION TOUR 2017
Makes VICTORY
Models BOARDWALKCROSS COUNTRYCROSS COUNTRY TOURCROSS ROADSCROSS ROADS 8-BALLCROSS ROADS CLASSICCROSS ROADS CUSTOMCROSS ROADS LEGUNNERHAMMERHAMMER 8 BALLHAMMER SHARD-BALLHIGHBALLJACKPOTJUDGEKINGPINKINGPIN 8 BALLKINGPIN TOURMAGNUMVEGASVEGAS 8 BALLVISION (ARLEN NESS)VISION 8 BALLVISION STREETVISION TOUR
Years 2008200920102011201220132014201520162017
