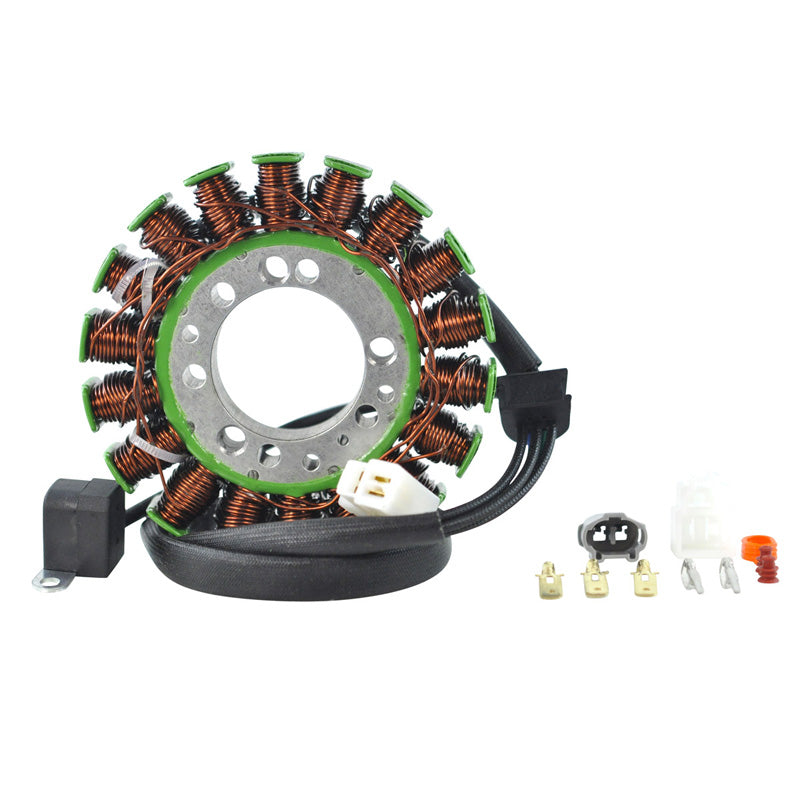

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side), as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 115 mm
Exterior diameter : 42 mm
Thickness : 21 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 140 mm
Length of pickup coil's wire to grommet : 105 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Between each Black = 0.5 ohms +/-20%
Pickup : Green to Blue = 230 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Stator failure on these Triumph motorcycles often affect the voltage regulator at a point where the defective voltage regulator will cause any new stator installed to fail prematurely. We highly recommend to replace your current voltage regulator with our voltage regulator # RMS022-105928. Where RMS900-107271 is the kit that fit the models.

Fitment notice:

Please note : There are multiple stators, flywheels and voltage regulators used on the 2006-2020 Triumph Daytona 675.

This stator replaces only OEM # T1300039, and was used on VIN #’s up to 564947. For VIN HIGHER than tha

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (TRIUMPH)

$265.99

Product Specifications

General Information

Brandrms
LabelSTATOR TRI DAYTONA|STREET TRIPLE 675/765 06-20
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01389
ITL ID351-010162

Dimensions & Physical

Weight 2.75 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications29
Applications TRIUMPH DAYTONA 675 2006TRIUMPH DAYTONA 675 2007TRIUMPH DAYTONA 675 2008TRIUMPH DAYTONA 675 2009TRIUMPH DAYTONA 675 2010TRIUMPH DAYTONA 675 2011TRIUMPH DAYTONA 675 2012TRIUMPH DAYTONA 675 2013TRIUMPH DAYTONA 675 2014TRIUMPH DAYTONA 675 2015TRIUMPH DAYTONA 675 2016TRIUMPH STREET TRIPLE 2008TRIUMPH STREET TRIPLE 2009TRIUMPH STREET TRIPLE 2010TRIUMPH STREET TRIPLE 2011TRIUMPH STREET TRIPLE 2012TRIUMPH STREET TRIPLE 2013TRIUMPH STREET TRIPLE R 2009TRIUMPH STREET TRIPLE R 2010TRIUMPH STREET TRIPLE R 2011TRIUMPH STREET TRIPLE R 2012TRIUMPH STREET TRIPLE R 2013TRIUMPH STREET TRIPLE R 2014TRIUMPH STREET TRIPLE R 2015TRIUMPH STREET TRIPLE R 2016TRIUMPH STREET TRIPLE R 2017TRIUMPH STREET TRIPLE R 2018TRIUMPH STREET TRIPLE R 2019TRIUMPH STREET TRIPLE R 2020
Makes TRIUMPH
Models DAYTONA 675STREET TRIPLESTREET TRIPLE R
Years 200620072008200920102011201220132014201520162017201820192020
