• STATOR (TRIUMPH)

STATOR (TRIUMPH)

STATOR (TRIUMPH)

Low stock! Only 1 left
$265.99
$265.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

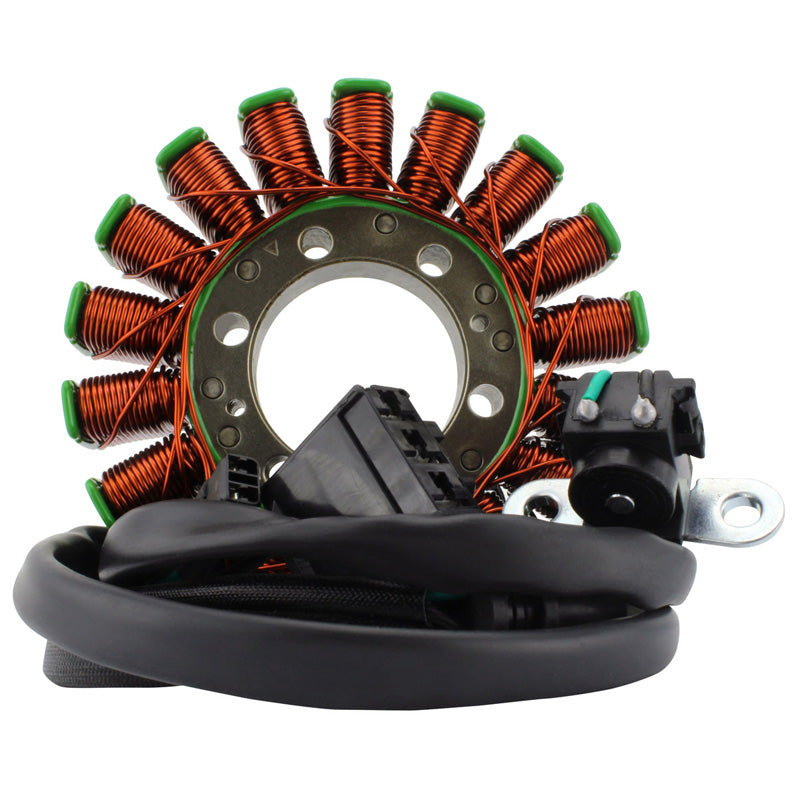

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Stator

Dimensions:
Interior diameter: 42mm
Exterior diameter: 115mm
Thickness: 18mm
Length of wires stator to grommet: 240mm
Length of wires grommet to plug: 190mm & 880mm
Length of pickup coil's wire to grommet: 270mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Alternator: to ground = O.L
Pickup: Green to black = 240 ohms +-20%

RMSTATOR Red Machined Aluminum Mosfet voltage regulator rectifier

Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 811 mm & 350 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Fitment notice:

Please note : There are multiple stators possible on the 2006-2020 Triumph Daytona 675 et Dayton 675 R.

This stator replaces only OEM # T1300181 and is used on vehicles with a VIN HIGHER than 564948. For vehicles with VIN up

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (TRIUMPH)

$265.99

Product Specifications

General Information

Brandrms
LabelSTATOR TRI DAYTONA 675|R 06-20
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS010-107393
ITL ID351-010434

Dimensions & Physical

Weight 2 lbs
Length5.1
Width2.4
Thickness6.3

Vehicle Fitment

Total Applications18
Applications TRIUMPH DAYTONA 675 2006TRIUMPH DAYTONA 675 2007TRIUMPH DAYTONA 675 2008TRIUMPH DAYTONA 675 2009TRIUMPH DAYTONA 675 2010TRIUMPH DAYTONA 675 2011TRIUMPH DAYTONA 675 2012TRIUMPH DAYTONA 675 2013TRIUMPH DAYTONA 675 2014TRIUMPH DAYTONA 675 2015TRIUMPH DAYTONA 675 2016TRIUMPH DAYTONA 675R 2011TRIUMPH DAYTONA 675R 2012TRIUMPH DAYTONA 675R 2013TRIUMPH DAYTONA 675R 2014TRIUMPH DAYTONA 675R 2015TRIUMPH DAYTONA 675R 2016TRIUMPH DAYTONA 675R 2017
Makes TRIUMPH
Models DAYTONA 675DAYTONA 675R
Years 200620072008200920102011201220132014201520162017
