STATOR (TRIUMPH)

STATOR (TRIUMPH)

Low stock! Only 2 left


Regular price $265.99
Sale price $265.99 Regular price
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088


  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

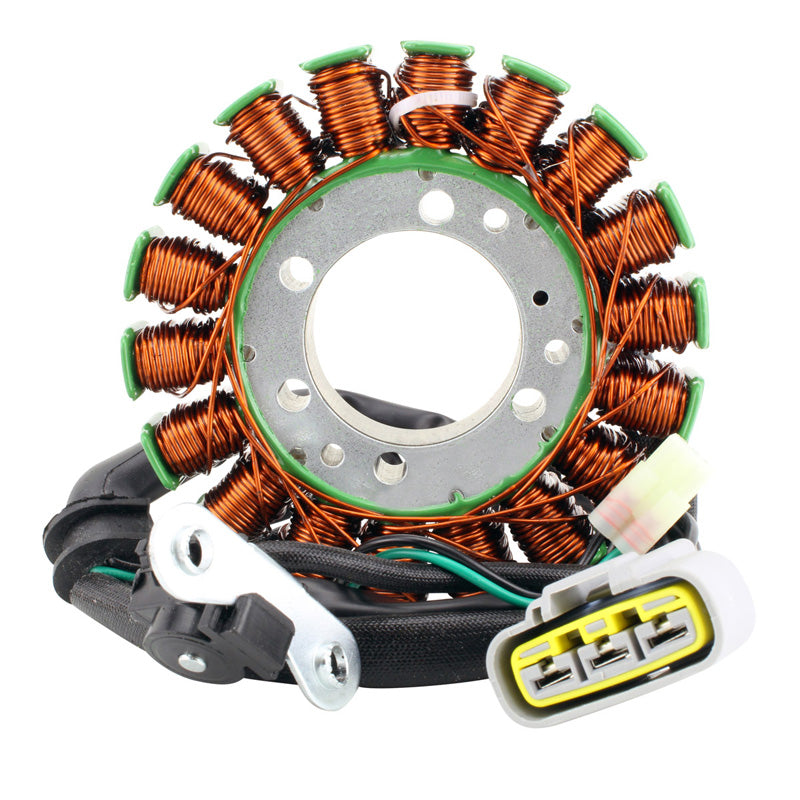

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 250 mm
Length of wires grommet to plug # 1 : 195 mm
Length of wires grommet to plug # 2 : 500 mm
Length of pickup coil's wire to grommet : 280 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator : Between each Black = 0.6 ohms +-20%
Pickup : Green To Grey = 244 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Stator failure on these Triumph motorcycles often affect the voltage regulator at a point where the defective voltage regulator will cause any new stator installed to fail prematurely. We highly recommend to replace your current voltage regulator with our voltage regulator RMS022-105928. Where RMS900-107277 is the kit that fit the models.

Fitment notice:

Please note That there are multiple possible stators for the 2007 to 2018 Street Triple. This stator will only fits on : Street Triple Standard This part will only fit Street triple Standard with a VIN HIG




Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

STATOR (TRIUMPH)

$265.99

Product Specifications

General Information

Brandrms
LabelSTATOR TRI STREET TRIPLE 675|765 07-20
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS010-106948
ITL ID351-010399

Dimensions & Physical

Weight 2.48 lbs
Length5.1
Width2.4
Thickness6.3

Vehicle Fitment

Total Applications25
Applications TRIUMPH STREET TRIPLE 2008TRIUMPH STREET TRIPLE 2009TRIUMPH STREET TRIPLE 2010TRIUMPH STREET TRIPLE 2011TRIUMPH STREET TRIPLE 2012TRIUMPH STREET TRIPLE 2013TRIUMPH STREET TRIPLE 2014TRIUMPH STREET TRIPLE 2015TRIUMPH STREET TRIPLE 2016TRIUMPH STREET TRIPLE R 2009TRIUMPH STREET TRIPLE R 2010TRIUMPH STREET TRIPLE R 2011TRIUMPH STREET TRIPLE R 2012TRIUMPH STREET TRIPLE R 2013TRIUMPH STREET TRIPLE R 2014TRIUMPH STREET TRIPLE R 2015TRIUMPH STREET TRIPLE R 2016TRIUMPH STREET TRIPLE R 2017TRIUMPH STREET TRIPLE R 2018TRIUMPH STREET TRIPLE R 2019TRIUMPH STREET TRIPLE R 2020TRIUMPH STREET TRIPLE RS 2019TRIUMPH STREET TRIPLE RS 2020TRIUMPH STREET TRIPLE S 2018TRIUMPH STREET TRIPLE S 2019
Makes TRIUMPH
Models STREET TRIPLESTREET TRIPLE RSTREET TRIPLE RSSTREET TRIPLE S
Years 2008200920102011201220132014201520162017201820192020
