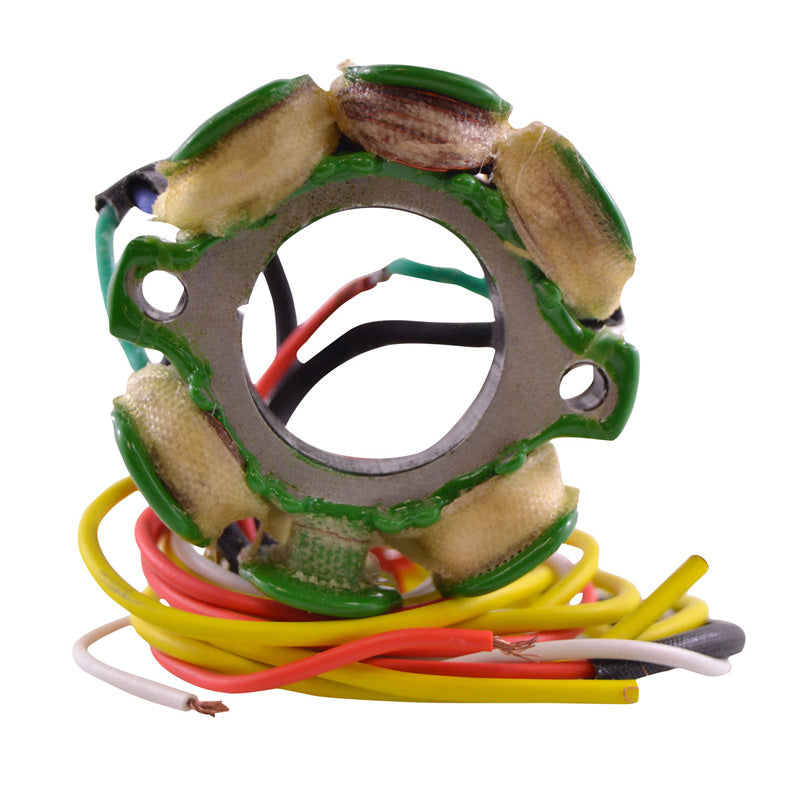

Brand new aftermarket stator

  • You must re-install your original connector and grommet (see picture).
  • Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
  • Higher grade of electric components.
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 28mm
Exterior diameter: 57mm
Thickness: 15mm
Length of wires stator to terminals: 600mm

Other specifications:
Number of wires: 4
Number of plugs: 0
Number of terminals: 4

Wire to wire resistance:
Source 1 : Red to White = 28 ohms +/-20%
Source 2 : Yellow to Yellow = 0.4 ohms +/- 20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR SUZ RM125/250 96-01
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01293
ITL ID351-010116

Dimensions & Physical

Weight 0.65 lbs
Length3.9
Width3.9
Thickness1.9

Vehicle Fitment

Total Applications14
Applications SUZUKI RM125 1996SUZUKI RM125 1997SUZUKI RM125 2001SUZUKI RM125 2002SUZUKI RM125 2003SUZUKI RM125 2004SUZUKI RM125 2005SUZUKI RM125 2006SUZUKI RM250 1996SUZUKI RM250 1997SUZUKI RM250 1998SUZUKI RM250 1999SUZUKI RM250 2000SUZUKI RM250 2001
Makes SUZUKI
Models RM125RM250
Years 19961997199819992000200120022003200420052006
