• STATOR (SUZUKI)

STATOR (SUZUKI)

STATOR (SUZUKI)

Low stock! Only 1 left
$265.99
$265.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

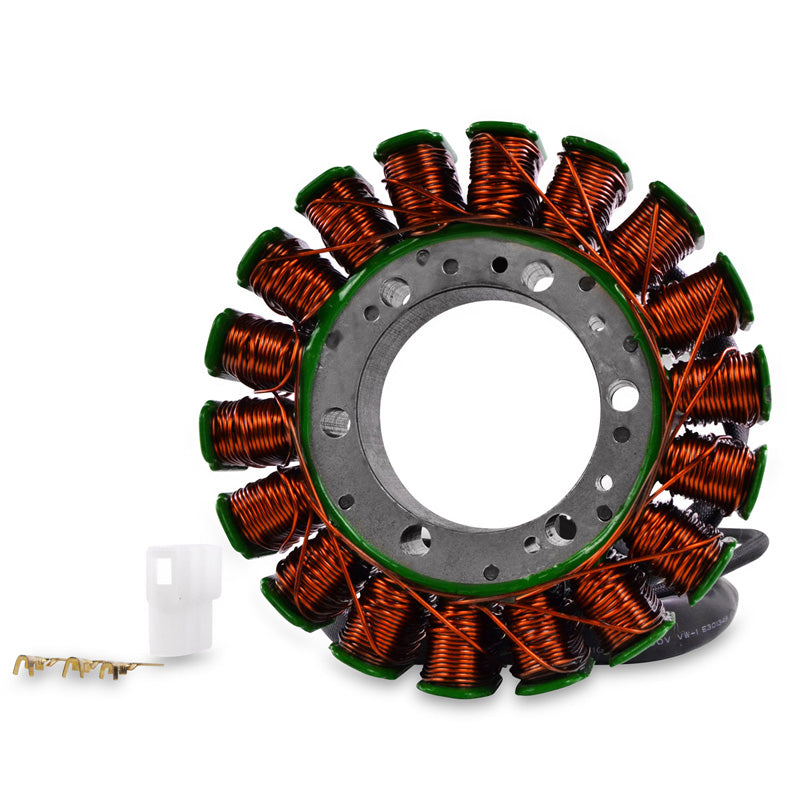

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 24 mm
Length of wires stator to grommet : 325 mm
Length of wires grommet to plug : 340 mm
Length of pickup coil's wire to grommet : 175 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.6 ohms +-20%
Pickup : Blue To Green = 246 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (SUZUKI)

$265.99

Product Specifications

General Information

Brandrms
LabelSTATOR SUZ C50|C50T|M50 05-19
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01573
ITL ID351-010245

Dimensions & Physical

Weight 3.54 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications51
Applications SUZUKI VL800 BOULEVARD C50 2005SUZUKI VL800 BOULEVARD C50 2006SUZUKI VL800 BOULEVARD C50 2007SUZUKI VL800 BOULEVARD C50 2008SUZUKI VL800 BOULEVARD C50 2009SUZUKI VL800 BOULEVARD C50 2010SUZUKI VL800 BOULEVARD C50 2011SUZUKI VL800 BOULEVARD C50 2012SUZUKI VL800 BOULEVARD C50 2013SUZUKI VL800 BOULEVARD C50 2014SUZUKI VL800 BOULEVARD C50 2015SUZUKI VL800 BOULEVARD C50 2016SUZUKI VL800 BOULEVARD C50 2017SUZUKI VL800 BOULEVARD C50 2018SUZUKI VL800 BOULEVARD C50 2019SUZUKI VL800 BOULEVARD C50 2020SUZUKI VL800 BOULEVARD C50 2021SUZUKI VL800 BOULEVARD C50 2022SUZUKI VL800 BOULEVARD C50 2023SUZUKI VL800T BOULEVARD C50T 2005SUZUKI VL800T BOULEVARD C50T 2006SUZUKI VL800T BOULEVARD C50T 2007SUZUKI VL800T BOULEVARD C50T 2008SUZUKI VL800T BOULEVARD C50T 2009SUZUKI VL800T BOULEVARD C50T 2010SUZUKI VL800T BOULEVARD C50T 2011SUZUKI VL800T BOULEVARD C50T 2012SUZUKI VL800T BOULEVARD C50T 2013SUZUKI VL800T BOULEVARD C50T 2014SUZUKI VL800T BOULEVARD C50T 2015SUZUKI VL800T BOULEVARD C50T 2016SUZUKI VL800T BOULEVARD C50T 2017SUZUKI VL800T BOULEVARD C50T 2018SUZUKI VL800T BOULEVARD C50T 2019SUZUKI VL800T BOULEVARD C50T 2020SUZUKI VL800T BOULEVARD C50T 2021SUZUKI VL800T BOULEVARD C50T 2022SUZUKI VL800T BOULEVARD C50T 2023SUZUKI VZ800 BOULEVARD M50 2005SUZUKI VZ800 BOULEVARD M50 2006SUZUKI VZ800 BOULEVARD M50 2007SUZUKI VZ800 BOULEVARD M50 2008SUZUKI VZ800 BOULEVARD M50 2009SUZUKI VZ800 BOULEVARD M50 2010SUZUKI VZ800 BOULEVARD M50 2011SUZUKI VZ800 BOULEVARD M50 2012SUZUKI VZ800 BOULEVARD M50 2013SUZUKI VZ800 BOULEVARD M50 2014SUZUKI VZ800 BOULEVARD M50 2015SUZUKI VZ800 BOULEVARD M50 2016SUZUKI VZ800 BOULEVARD M50 2017
Makes SUZUKI
Models VL800 BOULEVARD C50VL800T BOULEVARD C50TVZ800 BOULEVARD M50
Years 2005200620072008200920102011201220132014201520162017201820192020202120222023
