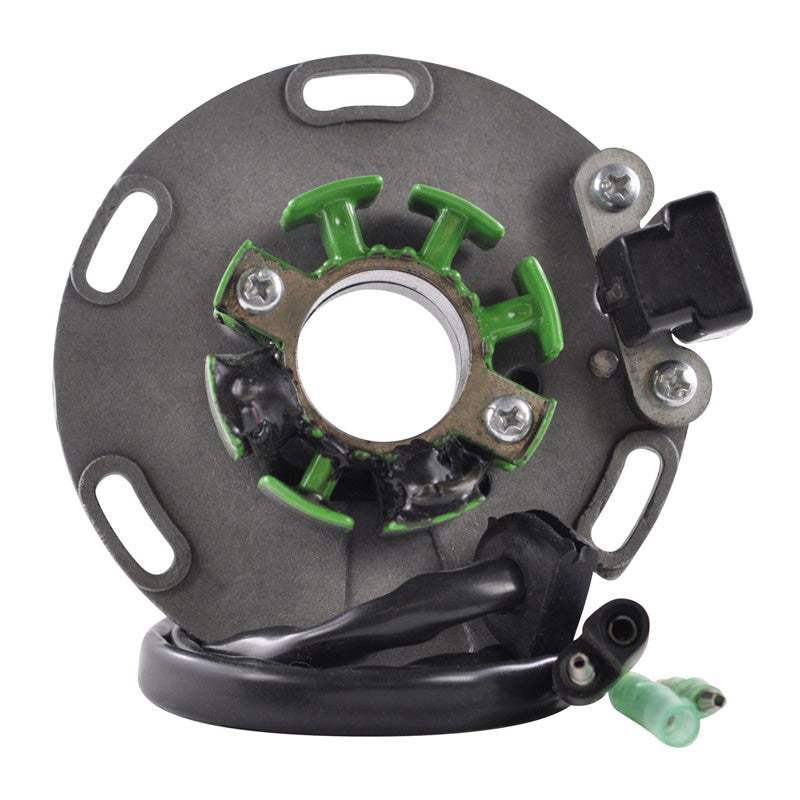

• STATOR (SUZUKI)

STATOR (SUZUKI)

STATOR (SUZUKI)

Out of stock
$236.99
$236.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Rubber grommet included
  • Back Plate included
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 12 mm
Length of wires stator to grommet : 65 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 95 mm

Other specifications :
Number of wires : 4
Number of pins : 4

Wire to wire resistance :
Pickup : Red to Green = 140 ohms +/-20%
Source : White/Red to Black/Red = 28 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR SUZ RM125/250 89-95
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01454
ITL ID351-010195

Dimensions & Physical

Weight 0.93 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications9
Applications SUZUKI RM125 1989SUZUKI RM125 1990SUZUKI RM125 1991SUZUKI RM125 1992SUZUKI RM125 1993SUZUKI RM125 1994SUZUKI RM125 1995SUZUKI RM250 1994SUZUKI RM250 1995
Makes SUZUKI
Models RM125RM250
Years 1989199019911992199319941995
