• STATOR (SUZUKI)

STATOR (SUZUKI)

STATOR (SUZUKI)

Out of stock
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

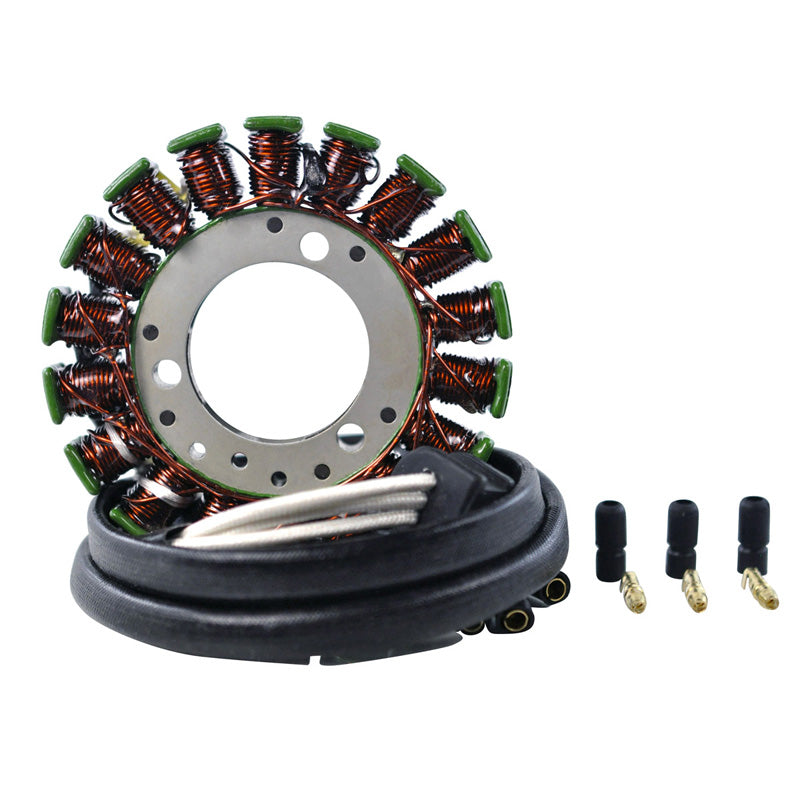

Brand new stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 34 mm
Exterior diameter : 93 mm
Thickness : 13 mm
Length of wires stator to grommet : 200 mm
Length of wires grommet to plug : 820 mm

Other specifications :
Number of wires : 3
Number of plugs : 3
Number of pins : 3

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR SUZ GS250-750 77-00
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01080
ITL ID351-010061

Dimensions & Physical

Weight 1.55 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications36
Applications SUZUKI GS250 1980SUZUKI GS250 1981SUZUKI GS300L 1982SUZUKI GS300L 1983SUZUKI GS400E 1980SUZUKI GS400E 1981SUZUKI GS400E 1982SUZUKI GS400E 1983SUZUKI GS425 1979SUZUKI GS425E 1979SUZUKI GS425L 1979SUZUKI GS450GA AUTO 1982SUZUKI GS450GA AUTO 1983SUZUKI GS450L 1983SUZUKI GS450L 1984SUZUKI GS450L 1985SUZUKI GS450T 1983SUZUKI GS500E 1989SUZUKI GS500E 1990SUZUKI GS500E 1991SUZUKI GS500E 1992SUZUKI GS500E 1993SUZUKI GS550E 1978SUZUKI GS550E 1979SUZUKI GS550E 1980SUZUKI GS550L 1979SUZUKI GS550L 1980SUZUKI GS550L 1981SUZUKI GS550L 1982SUZUKI GS550T 1981SUZUKI GS750 1977SUZUKI GS750 1978SUZUKI GS750 1979SUZUKI GS750E 1978SUZUKI GS750E 1979SUZUKI GS750L 1979
Makes SUZUKI
Models GS250GS300LGS400EGS425GS425EGS425LGS450GA AUTOGS450LGS450TGS500EGS550EGS550LGS550TGS750GS750EGS750L
Years 19771978197919801981198219831984198519891990199119921993
