• STATOR (POLARIS)

STATOR (POLARIS)

STATOR (POLARIS)

Out of stock
$295.99
$295.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

Brand new stator with new upgraded waterproof high amperage bulletproof connectors

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Rubber grommet included
  • All products shipped are tested

2011-2012 Polaris RZR are outputting a huge 720W of power making the stator failure prone. Our upgraded version now features 3 separate 40A rated waterproof connectors to help manage this much power and extend your stator life

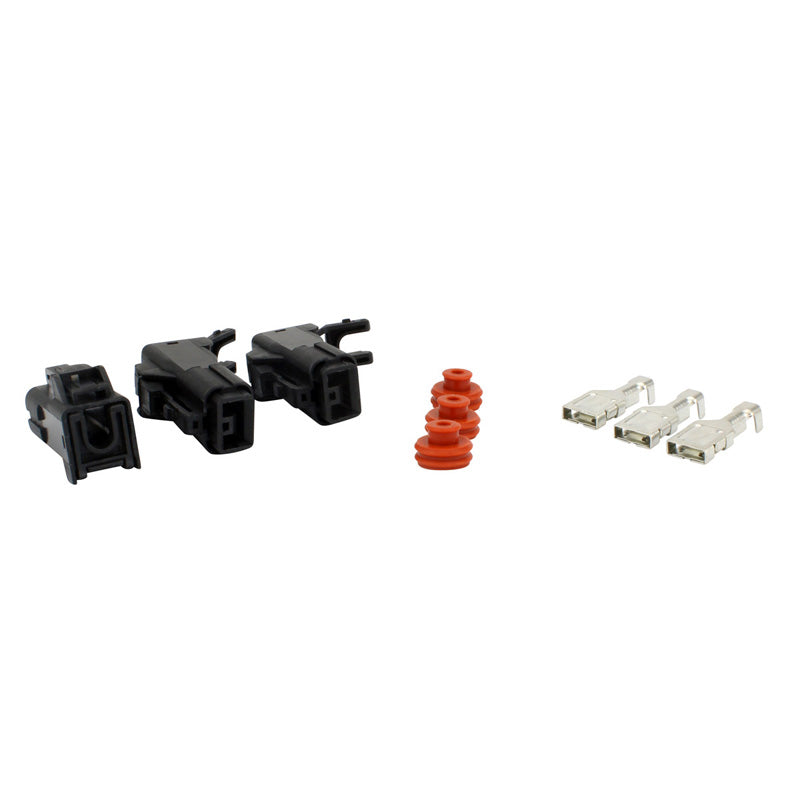

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Instructions:

Before installing your new stator

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Specifications:

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 127 mm
Thickness: 28 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 320 mm

Other specifications:
Number of wires: 3
Number of plugs: 3
Number of pins: 3
Number of poles: 18

Wire to wire resistance:
Alternator: White between each White = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

This is an improved version of the OEM stator. It includes premium 40Amp rated sealed waterproof individual connectors for each stator wire, and requires you to crimp and install the new mating connectors onto your vehicle side harness to match.

Fitment notice:

There are two possible stators for the RZR XP 900 and RZR 4 XP 900 models. This stator fits models built 3/15/12 and before (OEM# 4013224, stator thickness 28 mm). For the stator built 3/16/12 and after, the right part is RM01394 (OEM# 4013013, stator thickness 19 mm). Always check in the 'Fits models' section and please compare to your original part before buying.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR POLARIS RZR 900 XP/RZR 4 900 XP 11-12
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS010-108291
ITL ID351-010507

Dimensions & Physical

Weight 2 lbs
Length6.3
Width2.4
Thickness5.1

Vehicle Fitment

Total Applications3
Applications POLARIS RZR XP 4 900 2012POLARIS RZR XP 900 2011POLARIS RZR XP 900 2012
Makes POLARIS
Models RZR XP 4 900RZR XP 900
Years 20112012
