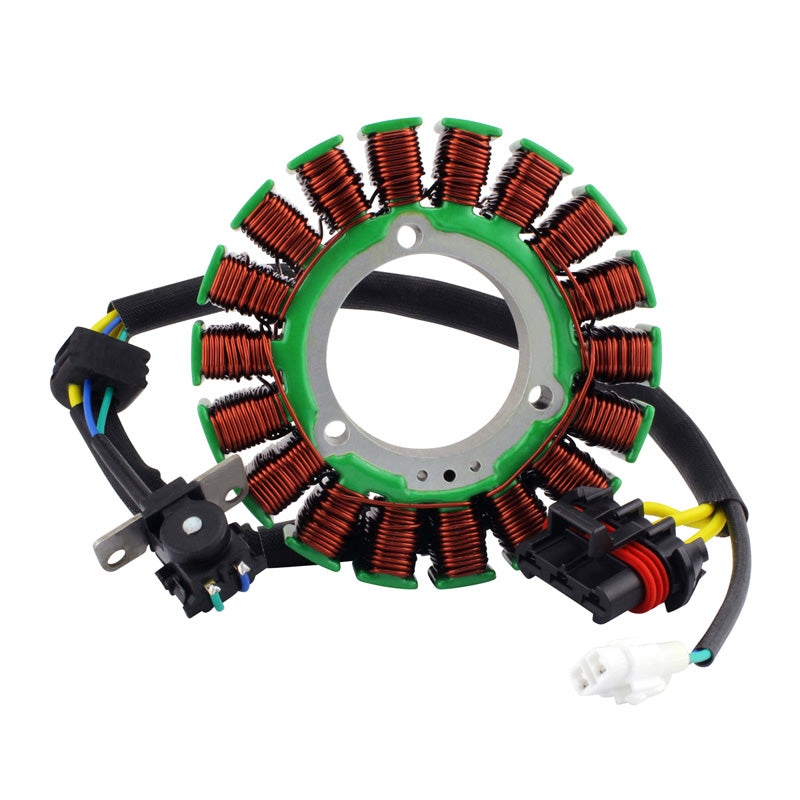

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 126 mm
Thickness: 20 mm
Length of wires stator to grommet: 130 mm
Length of wires grommet to plug: 365 mm
Length of pickup coil's wire to grommet: 70 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Pickup: = 125 ohms +-20%
Source: =0.4 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (POLARIS)

$295.99

Product Specifications

General Information

Brandrms
LabelSTATOR POL SPORTSMAN|RANGER 450-570 21-23
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS010-107775
ITL ID351-010467

Dimensions & Physical

Weight 3 lbs
Length5
Width2.5
Thickness6.5

Vehicle Fitment

Total Applications43
Applications POLARIS RANGER CREW SP570 2022POLARIS RANGER CREW SP570 NORTHSTAR EPS 2022POLARIS RANGER CREW SP570 PREMIUM CAMO EPS 2022POLARIS RANGER CREW SP570 PREMIUM CAMO EPS 2023POLARIS RANGER CREW SP570 PREMIUM EPS 2022POLARIS RANGER SP570 2022POLARIS RANGER SP570 NORTHSTAR EPS 2022POLARIS RANGER SP570 PREMIUM EPS 2022POLARIS RANGER SP570 PREMIUM EPS 2023POLARIS SPORTSMAN 450 2021POLARIS SPORTSMAN 450 2022POLARIS SPORTSMAN 450 2023POLARIS SPORTSMAN 450 EPS 2021POLARIS SPORTSMAN 450 EPS 2022POLARIS SPORTSMAN 450 EPS 2023POLARIS SPORTSMAN 450 EPS 2024POLARIS SPORTSMAN 450 UTILITY EDITION 2021POLARIS SPORTSMAN 450 UTILITY EDITION 2022POLARIS SPORTSMAN 450 UTILITY EDITION 2023POLARIS SPORTSMAN 450 UTILITY EDITION 2024POLARIS SPORTSMAN 570 2021POLARIS SPORTSMAN 570 2022POLARIS SPORTSMAN 570 2023POLARIS SPORTSMAN 570 2024POLARIS SPORTSMAN 570 EPS 2021POLARIS SPORTSMAN 570 EPS 2022POLARIS SPORTSMAN 570 EPS 2023POLARIS SPORTSMAN 570 EPS 2024POLARIS SPORTSMAN 570 EPS RIDE COMMAND 2022POLARIS SPORTSMAN 570 PREMIUM EPS 2021POLARIS SPORTSMAN 570 PREMIUM EPS 2022POLARIS SPORTSMAN 570 PREMIUM EPS 2023POLARIS SPORTSMAN 570 PREMIUM EPS 2024POLARIS SPORTSMAN 570 SP HUNTER EDITION 2021POLARIS SPORTSMAN 570 SP HUNTER EDITION 2022POLARIS SPORTSMAN 570 TRAIL EPS 2021POLARIS SPORTSMAN 570 TRAIL EPS 2022POLARIS SPORTSMAN 570 TRAIL EPS 2023POLARIS SPORTSMAN 570 TRAIL EPS 2024POLARIS SPORTSMAN 570 ULTIMATE TRAIL 2021POLARIS SPORTSMAN 570 ULTIMATE TRAIL LTD EPS 2022POLARIS SPORTSMAN 570 UTILITY EDITION EPS 2021POLARIS SPORTSMAN 570 UTILITY EDITION EPS 2022
Makes POLARIS
Models RANGER CREW SP570RANGER CREW SP570 NORTHSTAR EPSRANGER CREW SP570 PREMIUM CAMO EPSRANGER CREW SP570 PREMIUM EPSRANGER SP570RANGER SP570 NORTHSTAR EPSRANGER SP570 PREMIUM EPSSPORTSMAN 450SPORTSMAN 450 EPSSPORTSMAN 450 UTILITY EDITIONSPORTSMAN 570SPORTSMAN 570 EPSSPORTSMAN 570 EPS RIDE COMMANDSPORTSMAN 570 PREMIUM EPSSPORTSMAN 570 SP HUNTER EDITIONSPORTSMAN 570 TRAIL EPSSPORTSMAN 570 ULTIMATE TRAILSPORTSMAN 570 ULTIMATE TRAIL LTD EPSSPORTSMAN 570 UTILITY EDITION EPS
Years 2021202220232024
