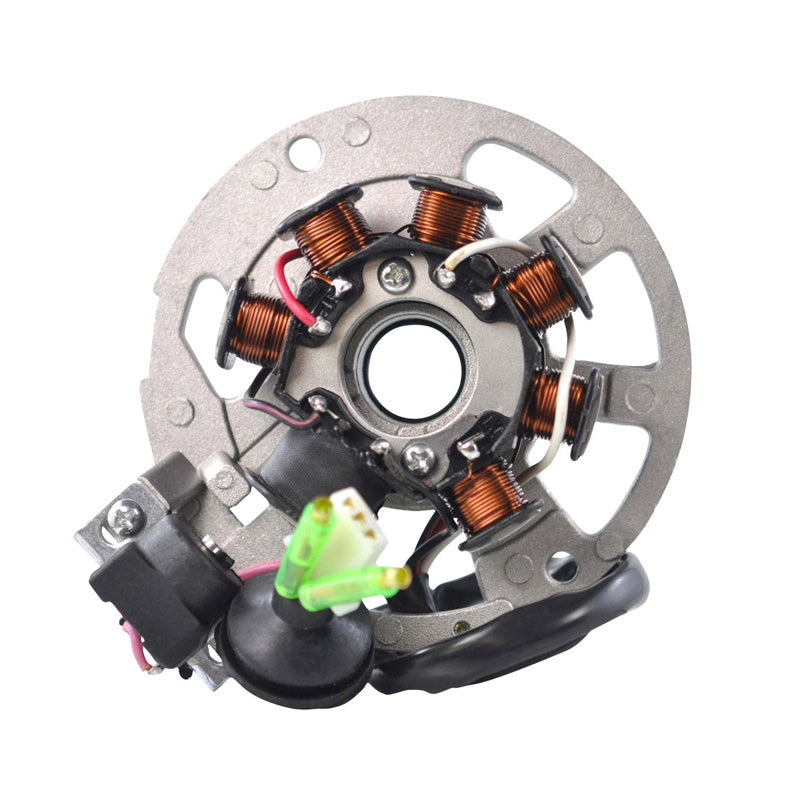

Brand new 7-coil stator with 5 wires for two stroke engines

  • 3-pin plug , 2 loose wires
  • 2 bolt holes, 103mm bolt hole spacing.
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Back Plate included
  • All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Specifications:

Dimensions :
Interior diameter : 79 mm
Exterior diameter : 27 mm
Thickness : 13 mm
Length of wires stator to grommet : 79 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 100 mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : Red to White = 0.4 ohms +/-20%
Pickup : Pink to Black = 500 ohms +/-20%
Source : Black/Red to Black = 300 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (POLARIS)

$147.99

Product Specifications

General Information

Brandrms
LabelSTATOR POL SPORTSMAN|PREDATOR 50-90 90-07
Universemoto,vtt_utv
Categorysysteme_de_charge
Supplier Part #RM01053
ITL ID351-010043

Dimensions & Physical

Weight 1.22 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications33
Applications POLARIS PREDATOR 50 2004POLARIS PREDATOR 50 2005POLARIS PREDATOR 50 2006POLARIS PREDATOR 90 2003POLARIS PREDATOR 90 2004POLARIS PREDATOR 90 2005POLARIS PREDATOR 90 2006POLARIS SCRAMBLER 50 2001POLARIS SCRAMBLER 50 2002POLARIS SCRAMBLER 50 2003POLARIS SCRAMBLER 90 2001POLARIS SCRAMBLER 90 2002POLARIS SPORTSMAN 90 2001POLARIS SPORTSMAN 90 2002POLARIS SPORTSMAN 90 2003POLARIS SPORTSMAN 90 2004POLARIS SPORTSMAN 90 2005POLARIS SPORTSMAN 90 2006YAMAHA CW50 BW'S R 1997YAMAHA CW50 BW'S R 1998YAMAHA CW50 BW'S R 1999YAMAHA CW50 BW'S R 2001YAMAHA CW50 ZUMA 1990YAMAHA CY50 JOG 1992YAMAHA CY50 JOG 1993YAMAHA CY50 JOG 1994YAMAHA CY50 JOG 1995YAMAHA CY50 JOG 1996YAMAHA CY50 JOG 1997YAMAHA CY50 JOG 1998YAMAHA CY50 JOG 1999YAMAHA CY50 JOG 2000YAMAHA CY50 JOG 2001
Makes POLARISYAMAHA
Models CW50 BW'S RCW50 ZUMACY50 JOGPREDATOR 50PREDATOR 90SCRAMBLER 50SCRAMBLER 90SPORTSMAN 90
Years 1990199219931994199519961997199819992000200120022003200420052006
