• STATOR (POLARIS)

STATOR (POLARIS)

STATOR (POLARIS)

Low stock! Only 2 left
$310.99
$310.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

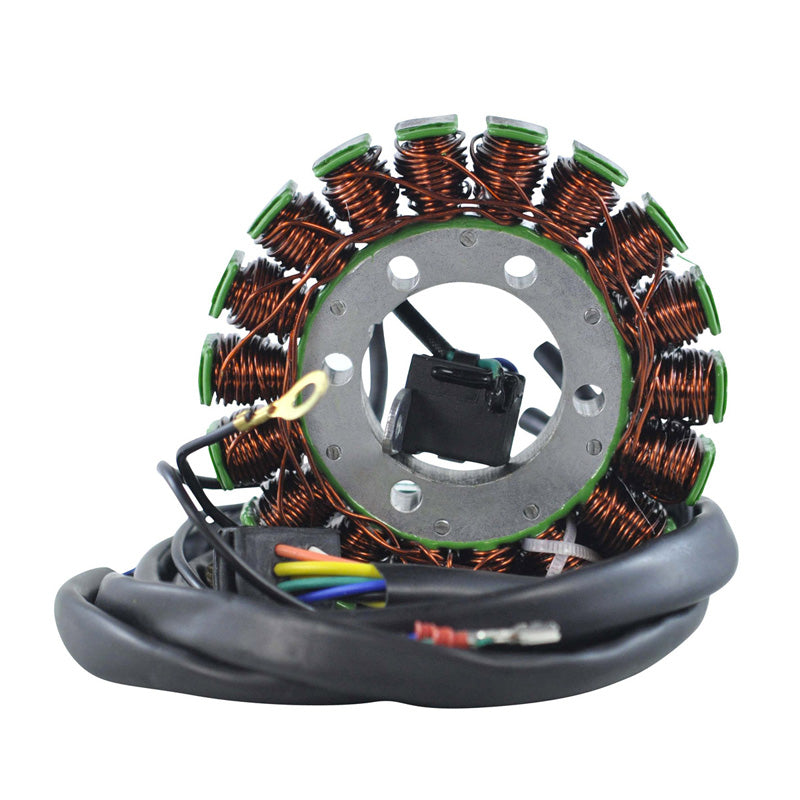

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

*This Stator does not include the factory 16 pins connector.
The stator outer diameter is 107 mm, internal diameter is 40 mm, thickness is 18 mm.
Please call for further clarification.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 40 mm
Exterior diameter : 107 mm
Thickness : 18 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 900 mm & 950 mm & 1200 mm
Length of pickup coil's wire to grommet : 200 mm

Other specifications :
Number of wires : 8
Number of plugs : 11
Number of pins : 11

Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = 0.L on display
Pickup : Blue to Green = 200 ohms +/-20%
Source : Red to White = 0.3 ohms +/-20%

Warning:

This stator is compatible with the Kokusan DC ignition system only. If you have a Ducati AC ignition system, please refer to product RM01292

This stator requires reusing your original 16-terminal connector. Please de-pin the stator wires from the connector, and install our wires, being careful to keep color and location the same.
Some applications of this stator will use a 3-terminal connector wiring jumper. We include this for you to replace your old connector if it matches your application.
If you do not have a 3-terminal connector wiring jumper, ours is not needed. These applications will instead have a 2-terminal wire jumper with a black rubber plug that will need to be reused.
We include a short wiring jumper with Black and White wires and a 2-terminal rubber plug to replace your original as well.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

There are two possible stators for the 2004-2005 Polaris Sportsman 600 & 700 / 2005 Polaris Sportsman MV7. This one has 18 charging poles. Please compare your current stator before buying.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (POLARIS)

$310.99

Product Specifications

General Information

Brandrms
LabelSTATOR POL SPORTSMAN 600/700 04-06
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM01330
ITL ID351-010130

Dimensions & Physical

Weight 2.38 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications3
Applications POLARIS SPORTSMAN 600 2005POLARIS SPORTSMAN 700 2005POLARIS SPORTSMAN 700 2006
Makes POLARIS
Models SPORTSMAN 600SPORTSMAN 700
Years 20052006
