• STATOR (POLARIS)

STATOR (POLARIS)

STATOR (POLARIS)

Low stock! Only 2 left
$288.99
$288.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

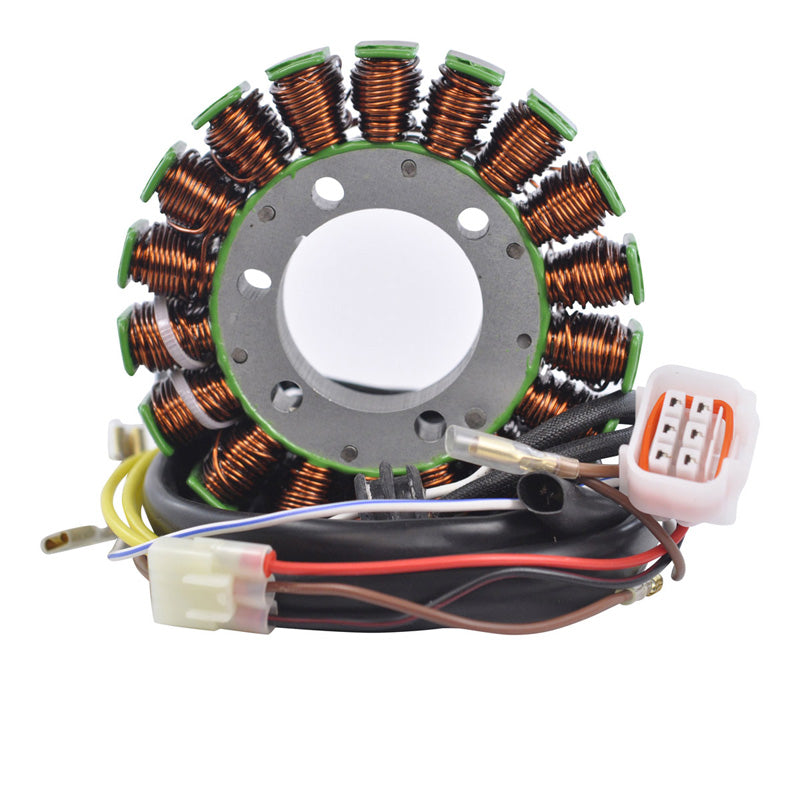

Brand new aftermarket stator

  • You must re-install the stator to regulator connector
  • Higher grade of electric components.
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 108 mm
Thickness: 19 mm

Other specifications:
Number of wires: 11
Number of plugs: 6
Number of pins: 9
Harness length Stator to grommet: 100 mm
Harness length grommet to plug: 1000 mm
Pickup coil`s wire length to grommet: 150 mm

Wire to wire resistance:
Alternator: Yellow between each yellow = 0.4 ohms +/-20%
Pickup: White to white/red = 100 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

There are two stators possible for the 2004 Polaris Sportsman 400 model. This stator has 18 poles. Please compare your current stator before buying.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (POLARIS)

$288.99

Product Specifications

General Information

Brandrms
LabelSTATOR POL SPORTSMAN 400-500 HO 04-14
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM01283
ITL ID351-010107

Dimensions & Physical

Weight 2.44 lbs
Length6.3
Width6.3
Thickness2.8

Vehicle Fitment

Total Applications31
Applications POLARIS ATP 500 HO 4X4 2005POLARIS RANGER 400 2010POLARIS RANGER 400 2011POLARIS RANGER 400 2012POLARIS RANGER 400 2013POLARIS RANGER 400 2014POLARIS RANGER 425 2X4 2004POLARIS RANGER 500 4X4 2004POLARIS RANGER 500 4X4 2005POLARIS RANGER 500 6X6 2004POLARIS SCRAMBLER 500 4X4 2004POLARIS SCRAMBLER 500 4X4 2005POLARIS SCRAMBLER 500 4X4 2006POLARIS SCRAMBLER 500 4X4 2007POLARIS SCRAMBLER 500 4X4 2008POLARIS SCRAMBLER 500 4X4 2009POLARIS SCRAMBLER 500 4X4 2010POLARIS SCRAMBLER 500 4X4 2011POLARIS SCRAMBLER 500 4X4 2012POLARIS SPORTSMAN 450 2006POLARIS SPORTSMAN 450 2007POLARIS SPORTSMAN 500 6X6 2004POLARIS SPORTSMAN 500 6X6 2005POLARIS SPORTSMAN 500 6X6 2006POLARIS SPORTSMAN 500 6X6 2007POLARIS SPORTSMAN 500 6X6 2008POLARIS SPORTSMAN 500 HO 2005POLARIS SPORTSMAN 500 HO 2006POLARIS SPORTSMAN 500 HO 2008POLARIS SPORTSMAN 500 HO 2009POLARIS SPORTSMAN 500 HO 2010
Makes POLARIS
Models ATP 500 HO 4X4RANGER 400RANGER 425 2X4RANGER 500 4X4RANGER 500 6X6SCRAMBLER 500 4X4SPORTSMAN 450SPORTSMAN 500 6X6SPORTSMAN 500 HO
Years 20042005200620072008200920102011201220132014
