• STATOR (POLARIS)

STATOR (POLARIS)

STATOR (POLARIS)

3 in stock
$288.99
$288.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

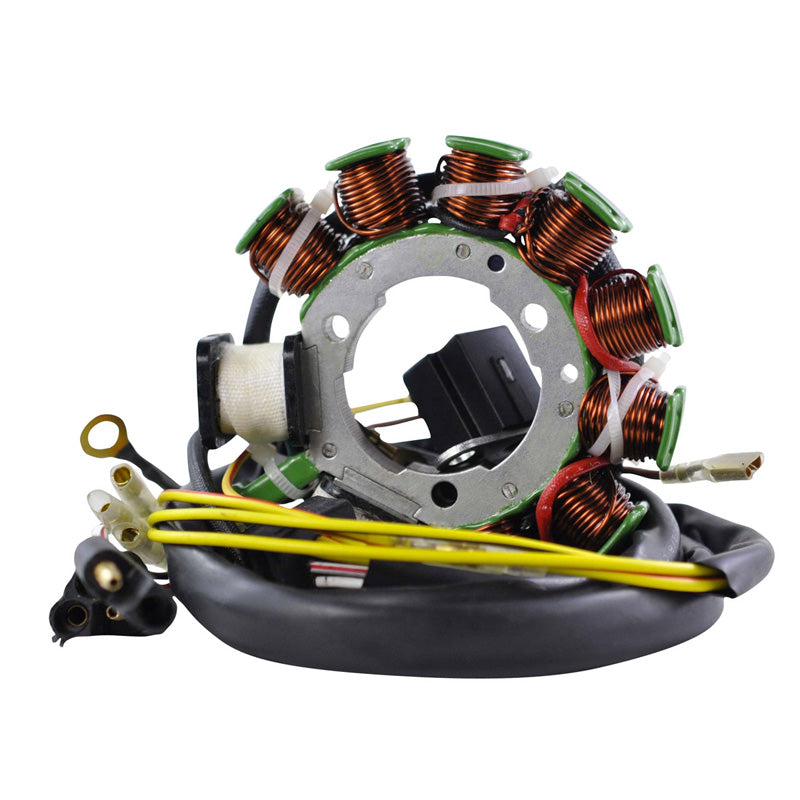

Brand new stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Please note : There is more than one possible Stator for these Polaris models. See specification tab for details. PLEASE VALIDATE THESE MEASUREMENTS WITH YOUR OLD STATOR BEFORE BUYING THIS PRODUCT! You may compare with the picture and confirm your number of wires

Specifications:

Dimensions :
Interior diameter : 42mm
Exterior diameter : 105mm
Thickness : 32mm
Length of wires stator to grommet : 140mm
Length of wires grommet to plug : 1000mm
Length of pickup coil's wire to grommet : 170mm

Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 12

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.4ohms +/-20%
Pickup : White/Red to White = 115ohms +/-20%
Source : Black/Red to Green = 450ohms +/-20%
Source 2 : Red to Green = 4.1ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

For Polaris Series 10 Ranger 2003, this stator only fits model code #A10RB42AA.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (POLARIS)

$288.99

Product Specifications

General Information

Brandrms
LabelSTATOR POL RANGER|SPORTSMAN 335-500 95-04
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM01052
ITL ID351-010042

Dimensions & Physical

Weight 2.1 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications20
Applications POLARIS MAGNUM 425 2X4 1995POLARIS MAGNUM 425 2X4 1996POLARIS MAGNUM 425 2X4 1997POLARIS MAGNUM 425 2X4 1998POLARIS MAGNUM 425 4X4 1995POLARIS MAGNUM 425 4X4 1996POLARIS MAGNUM 425 4X4 1997POLARIS MAGNUM 425 4X4 1998POLARIS MAGNUM 425 6X6 1996POLARIS MAGNUM 425 6X6 1997POLARIS SPORTSMAN 335 1999POLARIS SPORTSMAN 335 2000POLARIS SPORTSMAN 400 2001POLARIS SPORTSMAN 400 2002POLARIS SPORTSMAN 500 1996POLARIS SPORTSMAN 500 1997POLARIS XPEDITION 425 2000POLARIS XPEDITION 425 2001POLARIS XPEDITION 425 2002POLARIS XPLORER 500 1997
Makes POLARIS
Models MAGNUM 425 2X4MAGNUM 425 4X4MAGNUM 425 6X6SPORTSMAN 335SPORTSMAN 400SPORTSMAN 500XPEDITION 425XPLORER 500
Years 19951996199719981999200020012002
