• STATOR (KAWASAKI)

STATOR (KAWASAKI)

STATOR (KAWASAKI)

Out of stock
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

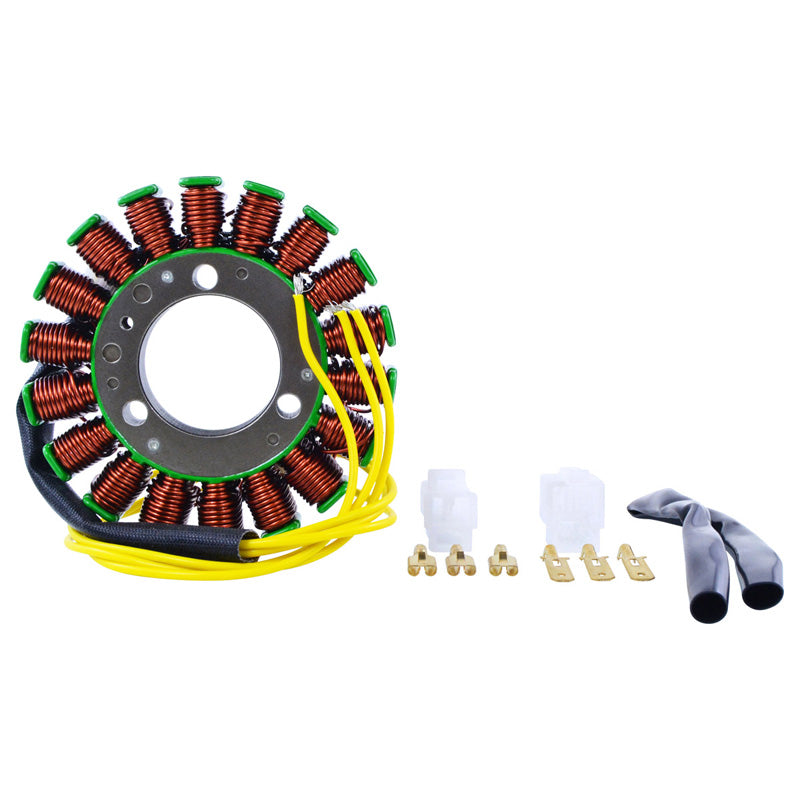

Brand new aftermarket Generator Stator

  • Direct replacement to your original unit
  • You must re-install your original grommet (see picture).
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Connector included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 38 mm
Exterior diameter : 102 mm
Thickness : 14 mm
Length of wires grommet to plug : 480 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.06 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR KAW ER500X|EX500/400|KLE400/500 85-09
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS010-104205
ITL ID351-010353

Dimensions & Physical

Weight 1.62 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications48
Applications KAWASAKI EN450-A 454 LTD 1985KAWASAKI EN450-A 454 LTD 1986KAWASAKI EN450-A 454 LTD 1987KAWASAKI EN450-A 454 LTD 1988KAWASAKI EN450-A 454 LTD 1989KAWASAKI EN450-A 454 LTD 1990KAWASAKI EN500-A VULCAN 1991KAWASAKI EN500-A VULCAN 1992KAWASAKI EN500-A VULCAN 1993KAWASAKI EN500-A VULCAN 1994KAWASAKI EN500-A VULCAN 1995KAWASAKI EN500-C VULCAN LTD 1996KAWASAKI EN500-C VULCAN LTD 1997KAWASAKI EN500-C VULCAN LTD 1998KAWASAKI EN500-C VULCAN LTD 1999KAWASAKI EN500-C VULCAN LTD 2000KAWASAKI EN500-C VULCAN LTD 2001KAWASAKI EN500-C VULCAN LTD 2002KAWASAKI EN500-C VULCAN LTD 2003KAWASAKI EN500-C VULCAN LTD 2004KAWASAKI EN500-C VULCAN LTD 2005KAWASAKI EN500-C VULCAN LTD 2006KAWASAKI EN500-C VULCAN LTD 2007KAWASAKI EN500-C VULCAN LTD 2008KAWASAKI EN500-C VULCAN LTD 2009KAWASAKI EX500-A EX 1987KAWASAKI EX500-A EX 1988KAWASAKI EX500-A EX 1989KAWASAKI EX500-A EX 1990KAWASAKI EX500-A EX 1991KAWASAKI EX500-A EX 1992KAWASAKI EX500-A EX 1993KAWASAKI EX500-D NINJA 1994KAWASAKI EX500-D NINJA 1995KAWASAKI EX500-D NINJA 1996KAWASAKI EX500-D NINJA 1997KAWASAKI EX500-D NINJA 1998KAWASAKI EX500-D NINJA 1999KAWASAKI EX500-D NINJA 2000KAWASAKI EX500-D NINJA 2001KAWASAKI EX500-D NINJA 2002KAWASAKI EX500-D NINJA 2003KAWASAKI EX500-D NINJA 2004KAWASAKI EX500-D NINJA 2005KAWASAKI EX500-D NINJA 2006KAWASAKI EX500-D NINJA 2007KAWASAKI EX500-D NINJA 2008KAWASAKI EX500-D NINJA 2009
Makes KAWASAKI
Models EN450-A 454 LTDEN500-A VULCANEN500-C VULCAN LTDEX500-A EXEX500-D NINJA
Years 1985198619871988198919901991199219931994199519961997199819992000200120022003200420052006200720082009
