• STATOR (HONDA)

STATOR (HONDA)

STATOR (HONDA)

Low stock! Only 2 left
$250.99
$250.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

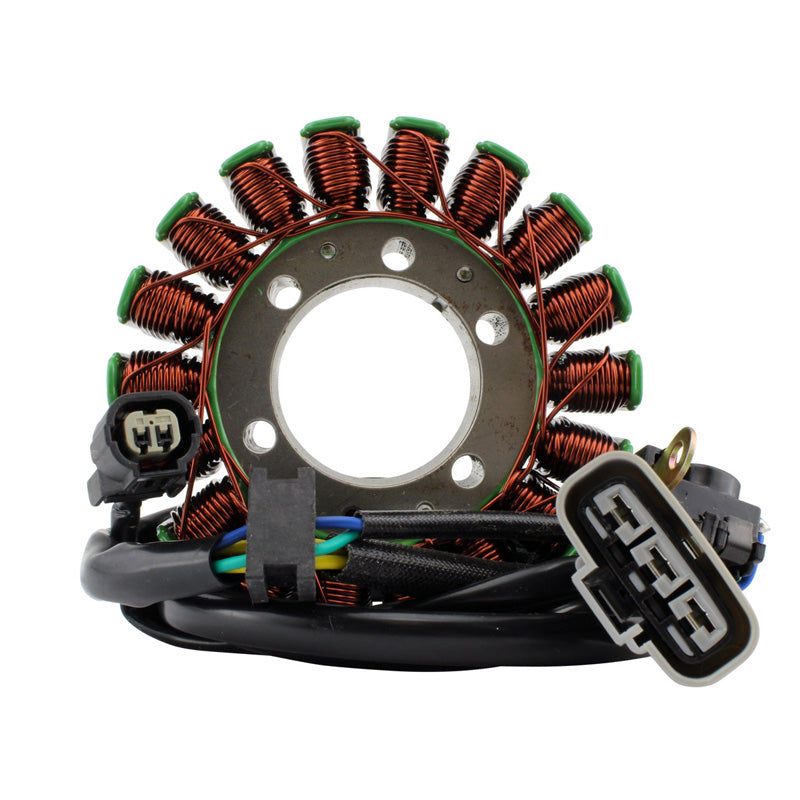

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 40 mm
Exterior diameter : 105 mm
Thickness : 35 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 940 mm
Length of pickup coil's wire to grommet : 60 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.5 ohms +-20%
Source : Blue/Yellow to Green = 240 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (HONDA)

$250.99

Product Specifications

General Information

Brandrms
LabelSTATOR HON TRX500|TRX520 FE|FM 14-20
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS010-106262
ITL ID351-010390

Dimensions & Physical

Weight 2.8 lbs
Length6.3
Width6.3
Thickness2.8

Vehicle Fitment

Total Applications24
Applications HONDA TRX500FE 4X4 FOREMAN 2015HONDA TRX500FE 4X4 FOREMAN 2016HONDA TRX500FE 4X4 FOREMAN 2017HONDA TRX500FE 4X4 FOREMAN 2018HONDA TRX500FE 4X4 FOREMAN 2019HONDA TRX500FM 4X4 FOREMAN 2014HONDA TRX500FM 4X4 FOREMAN 2015HONDA TRX500FM 4X4 FOREMAN 2016HONDA TRX500FM 4X4 FOREMAN 2017HONDA TRX500FM 4X4 FOREMAN 2018HONDA TRX500FM 4X4 FOREMAN 2019HONDA TRX500FM 4X4 IRS RUBICON 2015HONDA TRX500FM 4X4 IRS RUBICON 2016HONDA TRX500FM 4X4 IRS RUBICON 2017HONDA TRX500FM 4X4 IRS RUBICON EPS 2018HONDA TRX500FM 4X4 IRS RUBICON EPS 2019HONDA TRX500FPE 4X4 FOREMAN 2014HONDA TRX500FPM 4X4 FOREMAN 2014HONDA TRX520FE FOREMAN 2020HONDA TRX520FE FOREMAN 2021HONDA TRX520FM FOREMAN 2020HONDA TRX520FM FOREMAN 2021HONDA TRX520FM RUBICON IRS EPS 2020HONDA TRX520FM RUBICON IRS EPS 2021
Makes HONDA
Models TRX500FE 4X4 FOREMANTRX500FM 4X4 FOREMANTRX500FM 4X4 IRS RUBICONTRX500FM 4X4 IRS RUBICON EPSTRX500FPE 4X4 FOREMANTRX500FPM 4X4 FOREMANTRX520FE FOREMANTRX520FM FOREMANTRX520FM RUBICON IRS EPS
Years 20142015201620172018201920202021
