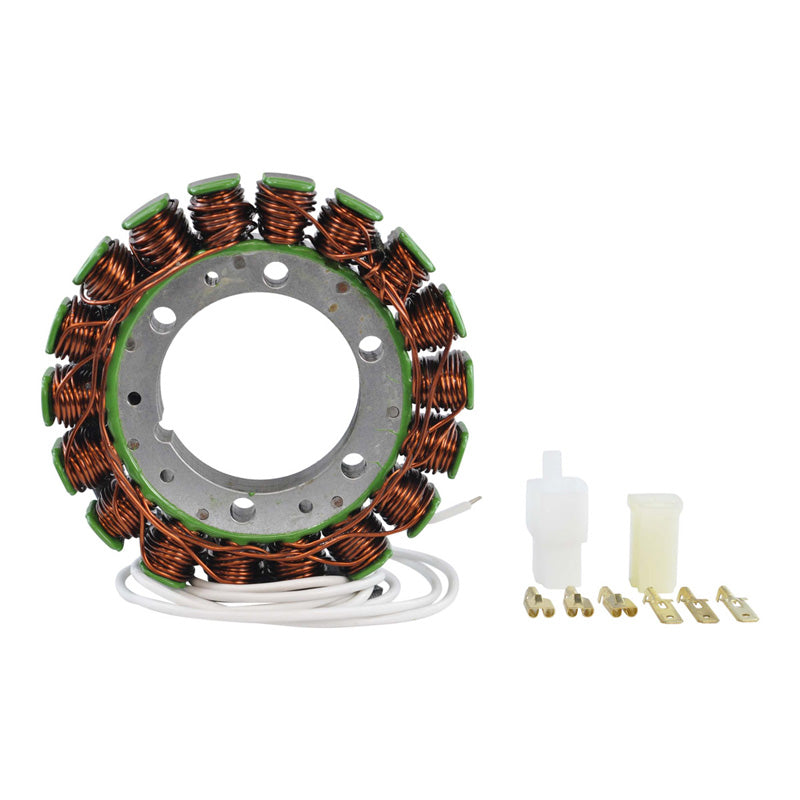

Brand new aftermarket stator

  • You must re-install your original connector and grommet (see picture).
  • Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
  • Higher grade of electric components.
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 16 mm
Length of wires stator to grommet: 1220 mm

Other specifications :
Number of wires: 3
Number of pins: 3

Wire to wire resistance :
Alternator: White Between each White = 0.2 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note : there are two possible stators for Suzuki Intruder VS 800 1992-1997. This stator will only fit on models N / P / R / S.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR BMW 97-11|HON 87-01|SUZ 86-95|YAM 82-90
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01040
ITL ID351-010031

Dimensions & Physical

Weight 2.66 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications36
Applications BMW F650 FUNDURO 1997BMW F650 FUNDURO 1998BMW F650 FUNDURO 1999BMW F650ST STRADA 1997BMW F650ST STRADA 1998BMW G650X CHALLENGE 2007BMW G650X COUNTRY 2007BMW G650X COUNTRY 2008BMW G650X COUNTRY 2009HONDA CBR929R 2000HONDA CBR929R 2001HONDA VT500C SHADOW 1983HONDA VT500C SHADOW 1984HONDA VT500C SHADOW 1985HONDA VT500C SHADOW 1986HONDA VT500FT ASCOT 1983HONDA VT500FT ASCOT 1984SUZUKI VS750GL INTRUDER 1986SUZUKI VS750GL INTRUDER 1987SUZUKI VS750GL INTRUDER 1988SUZUKI VS750GL INTRUDER 1989SUZUKI VS750GL INTRUDER 1990SUZUKI VS750GL INTRUDER 1991SUZUKI VS800GL INTRUDER 1992SUZUKI VS800GL INTRUDER 1993SUZUKI VS800GL INTRUDER 1994SUZUKI VS800GL INTRUDER 1995SUZUKI VS800GL INTRUDER 1996SUZUKI VS800GL INTRUDER 1997SUZUKI VX800 1990SUZUKI VX800 1991SUZUKI VX800 1992SUZUKI VX800 1993YAMAHA TDM850 1992YAMAHA XZ550R VISION 1982YAMAHA XZ550R VISION 1983
Makes BMWHONDASUZUKIYAMAHA
Models CBR929RF650 FUNDUROF650ST STRADAG650X CHALLENGEG650X COUNTRYTDM850VS750GL INTRUDERVS800GL INTRUDERVT500C SHADOWVT500FT ASCOTVX800XZ550R VISION
Years 19821983198419851986198719881989199019911992199319941995199619971998199920002001200720082009
