• STATOR (HONDA)

STATOR (HONDA)

STATOR (HONDA)

Low stock! Only 2 left
$280.99
$280.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

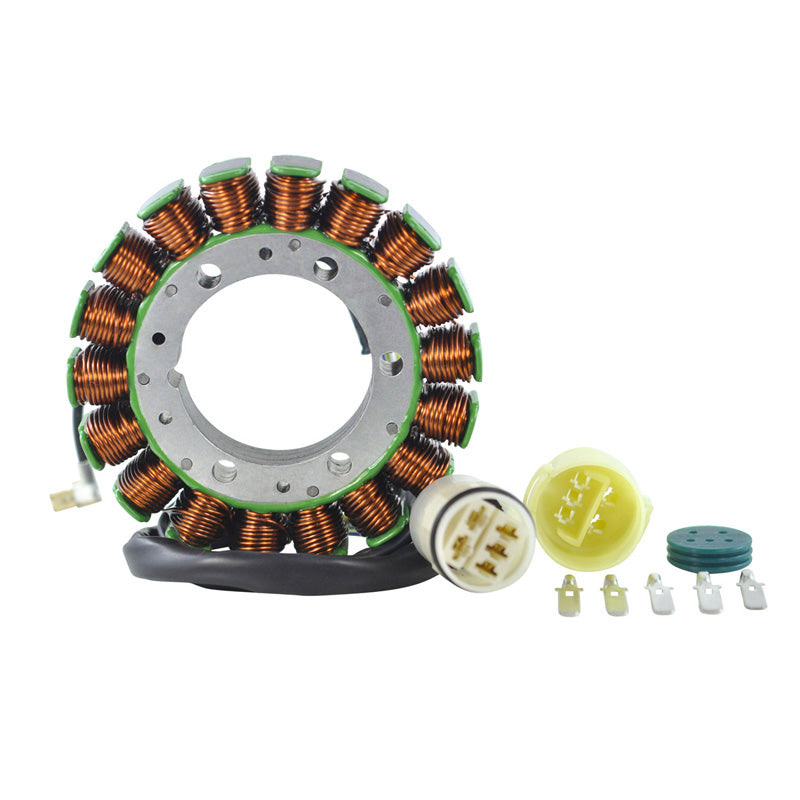

Brand new stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil sold separately (see RM00108)
  • Pick up pulsar coil's wire and plug included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 18 mm
Length of wires stator to grommet : 55 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to Ground = 360 ohms +/-20%
Please Note: The pickup pulsar coil is sold separately: please see RM00108

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (HONDA)

$280.99

Product Specifications

General Information

Brandrms
LabelSTATOR HON TRX400/450FW/FE/ES/FM 95-04
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM01361
ITL ID351-010144

Dimensions & Physical

Weight 2.28 lbs
Length6.3
Width6.3
Thickness2.8

Vehicle Fitment

Total Applications23
Applications HONDA TRX400FW 4X4 FOREMAN 1995HONDA TRX400FW 4X4 FOREMAN 1996HONDA TRX400FW 4X4 FOREMAN 1997HONDA TRX400FW 4X4 FOREMAN 1998HONDA TRX400FW 4X4 FOREMAN 1999HONDA TRX400FW 4X4 FOREMAN 2000HONDA TRX400FW 4X4 FOREMAN 2001HONDA TRX400FW 4X4 FOREMAN 2002HONDA TRX400FW 4X4 FOREMAN 2003HONDA TRX450ES 4X4 FOREMAN 1998HONDA TRX450ES 4X4 FOREMAN 1999HONDA TRX450ES 4X4 FOREMAN 2000HONDA TRX450ES 4X4 FOREMAN 2001HONDA TRX450FE 4X4 FOREMAN 2002HONDA TRX450FE 4X4 FOREMAN 2003HONDA TRX450FE 4X4 FOREMAN 2004HONDA TRX450FM 4X4 FOREMAN 2002HONDA TRX450FM 4X4 FOREMAN 2003HONDA TRX450FM 4X4 FOREMAN 2004HONDA TRX450S 4X4 FOREMAN 1998HONDA TRX450S 4X4 FOREMAN 1999HONDA TRX450S 4X4 FOREMAN 2000HONDA TRX450S 4X4 FOREMAN 2001
Makes HONDA
Models TRX400FW 4X4 FOREMANTRX450ES 4X4 FOREMANTRX450FE 4X4 FOREMANTRX450FM 4X4 FOREMANTRX450S 4X4 FOREMAN
Years 1995199619971998199920002001200220032004
