• STATOR (HONDA)

STATOR (HONDA)

STATOR (HONDA)

Low stock! Only 1 left
$236.99
$236.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

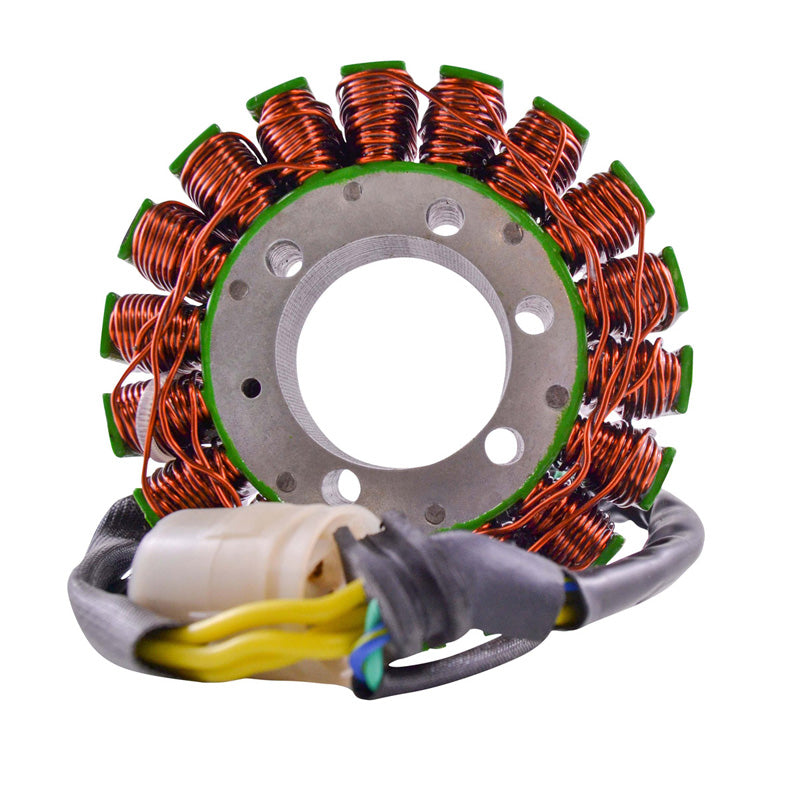

Brand new stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • Pick-up coil included
  • All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Alternator resistance (Yellow to Yellow) : 0.4 ohms +/- 20%
Pick-up 1 resistance (Blue/Yellow to Green) : 239 ohms +/- 20%
Number of wires : 5
Number of plugs : 1
Number of terminals : 5
Harness length - Stator to grommet (mm) : 130
Harness length - Grommet to plug (mm) : 270
Pick-up coil wire length - Coil to grommet (mm) : 70
Inside diameter (mm) : 41
Outside diameter (mm) : 107
Thickness (mm) : 21

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (HONDA)

$236.99

Product Specifications

General Information

Brandrms
LabelSTATOR HON TRX500|FE|FM|FPE|FPM 12-13
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM01154
ITL ID351-010088

Dimensions & Physical

Weight 2.55 lbs
Length2.8
Width6.3
Thickness6.3

Vehicle Fitment

Total Applications5
Applications HONDA TRX500FM 4X4 FOREMAN 2012HONDA TRX500FM 4X4 FOREMAN 2013HONDA TRX500FPE 4X4 FOREMAN 2013HONDA TRX500FPM 4X4 FOREMAN 2012HONDA TRX500FPM 4X4 FOREMAN 2013
Makes HONDA
Models TRX500FM 4X4 FOREMANTRX500FPE 4X4 FOREMANTRX500FPM 4X4 FOREMAN
Years 20122013
