• STATOR (DUCATI)

STATOR (DUCATI)

STATOR (DUCATI)

Low stock! Only 2 left
$221.99
$221.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

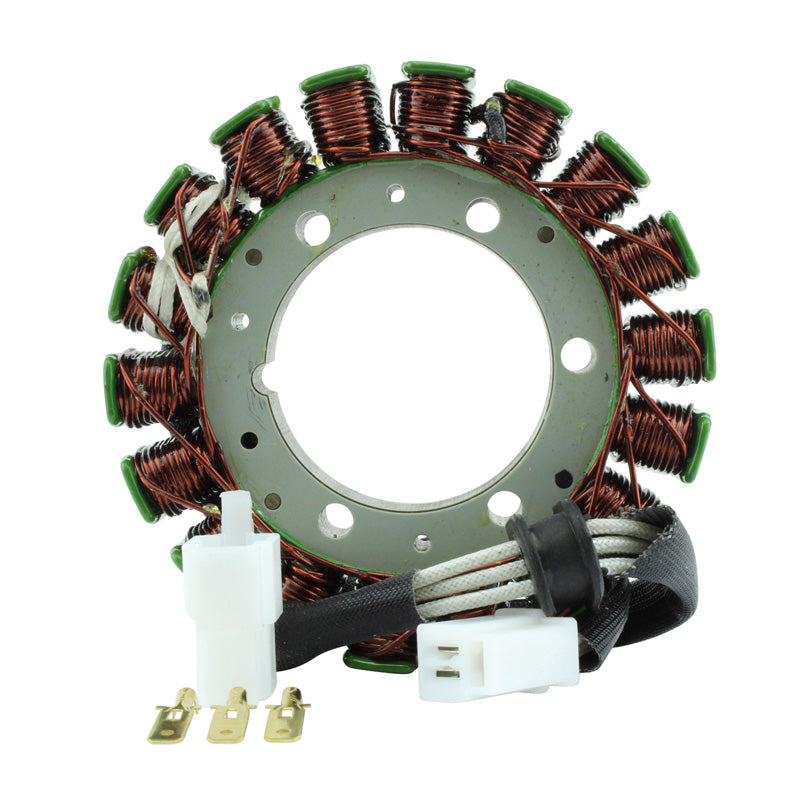

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 19 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 190 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Fitment notice:

Please take note : There are 2 possible stators for Ducati Multistrada 2003-2006. This stator has an outside diameter of 115 mm, an inner diameter of 54 mm and a stack height of 19 mm.

Before buying, please compare your origina

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (DUCATI)

$221.99

Product Specifications

General Information

Brandrms
LabelSTATOR DUCATI 749|999 03-07|1098|1198 03-11
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS010-104750
ITL ID351-010367

Dimensions & Physical

Weight 2.66 lbs
Length1.8
Width3.9
Thickness2.4

Vehicle Fitment

Total Applications40
Applications DUCATI 1098 SUPERBIKE 2007DUCATI 1098 SUPERBIKE 2008DUCATI 1098R SUPERBIKE 2008DUCATI 1098R SUPERBIKE 2009DUCATI 1098S SUPERBIKE 2007DUCATI 1098S SUPERBIKE 2008DUCATI 1198 SUPERBIKE 2009DUCATI 1198 SUPERBIKE 2010DUCATI 1198 SUPERBIKE 2011DUCATI 1198S SUPERBIKE 2009DUCATI 749 S 2004DUCATI 749 S 2005DUCATI 749 SUPERBIKE 2003DUCATI 749 SUPERBIKE 2004DUCATI 749 SUPERBIKE 2005DUCATI 749 SUPERBIKE 2006DUCATI 749R SUPERBIKE 2006DUCATI 749S SUPERBIKE 2006DUCATI 848 EVO SUPERBIKE 2011DUCATI 848 EVO SUPERBIKE 2012DUCATI 848 EVO SUPERBIKE 2013DUCATI 848 SUPERBIKE 2008DUCATI 848 SUPERBIKE 2009DUCATI 848 SUPERBIKE 2010DUCATI 999 SUPERBIKE 2003DUCATI 999 SUPERBIKE 2004DUCATI 999 SUPERBIKE 2005DUCATI 999 SUPERBIKE 2006DUCATI 999R SUPERBIKE 2005DUCATI 999R SUPERBIKE 2006DUCATI 999S SUPERBIKE 2003DUCATI 999S SUPERBIKE 2004DUCATI 999S SUPERBIKE 2005DUCATI 999S SUPERBIKE 2006DUCATI F1098S STREETFIGHTER S 2009DUCATI F1098S STREETFIGHTER S 2010DUCATI F1098S STREETFIGHTER S 2011DUCATI F1098S STREETFIGHTER S 2012DUCATI F848 STREETFIGHTER 2012DUCATI F848 STREETFIGHTER 2013
Makes DUCATI
Models 1098 SUPERBIKE1098R SUPERBIKE1098S SUPERBIKE1198 SUPERBIKE1198S SUPERBIKE749 S749 SUPERBIKE749R SUPERBIKE749S SUPERBIKE848 EVO SUPERBIKE848 SUPERBIKE999 SUPERBIKE999R SUPERBIKE999S SUPERBIKEF1098S STREETFIGHTER SF848 STREETFIGHTER
Years 20032004200520062007200820092010201120122013
