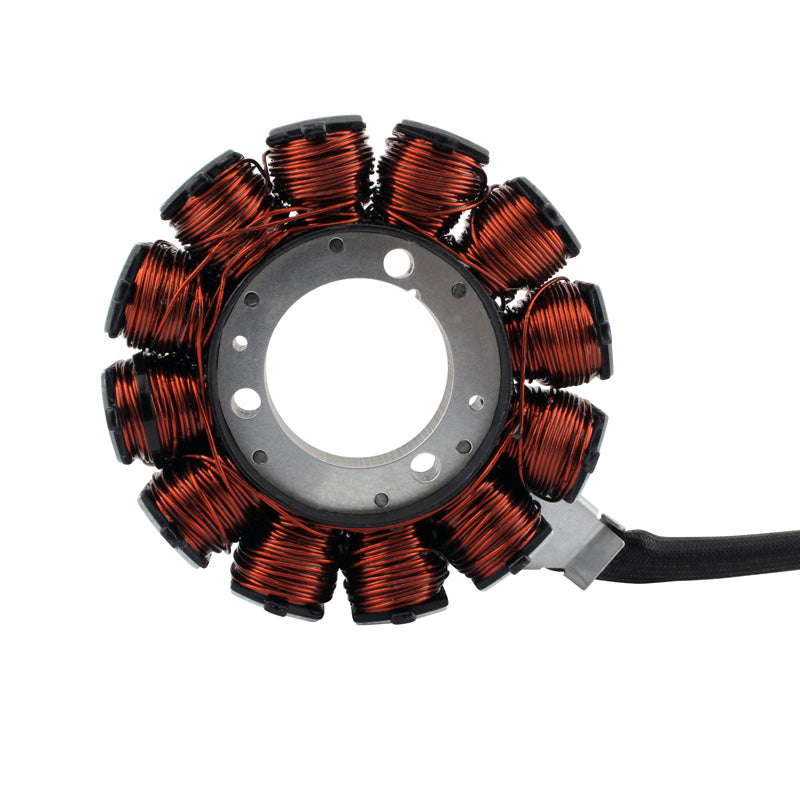

• STATOR (CAN-AM)

STATOR (CAN-AM)

STATOR (CAN-AM)

Low stock! Only 2 left
$295.99
$295.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included
Interior diameter 42 mm
Exterior diameter 115 mm
Thickness 17 mm
Length of wires stator to grommet 280 mm
Length of wires grommet to plug 995 mm
Number of wires 3
Number of plugs 1
Number of pins 3
Number of poles 12
Wire to wire resistance
Alternator: Yellow to Yellow 0.3 ohms +/-20%
Alternator: Yellow to ground

O.L



Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR (CAN-AM)

$295.99

Product Specifications

General Information

Brandrms
LabelSTATOR CAN-AM MAVERICK 1000 21-24
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS010-108366
ITL ID351-010494

Dimensions & Physical

Weight 4 lbs
Length5.5
Width6.5
Thickness3

Vehicle Fitment

Total Applications70
Applications BRP/CAN-AM MAVERICK 1000 X3 DS TURBO RR DPS 2022BRP/CAN-AM MAVERICK 1000 X3 DS TURBO RR DPS 2023BRP/CAN-AM MAVERICK 1000 X3 DS TURBO RR DPS 2024BRP/CAN-AM MAVERICK 1000 X3 DS TURBO RR DPS 2025BRP/CAN-AM MAVERICK 1000 X3 RS TURBO RR DPS 2022BRP/CAN-AM MAVERICK 1000 X3 RS TURBO RR DPS 2023BRP/CAN-AM MAVERICK 1000 X3 RS TURBO RR DPS 2024BRP/CAN-AM MAVERICK 1000 X3 RS TURBO RR DPS 2025BRP/CAN-AM MAVERICK 1000 X3 X DS TURBO RR DPS 2021BRP/CAN-AM MAVERICK 1000 X3 X DS TURBO RR DPS 2022BRP/CAN-AM MAVERICK 1000 X3 X DS TURBO RR DPS 2023BRP/CAN-AM MAVERICK 1000 X3 X DS TURBO RR DPS 2024BRP/CAN-AM MAVERICK 1000 X3 X DS TURBO RR DPS 2025BRP/CAN-AM MAVERICK 1000 X3 X MR TURBO RR 64 IN DPS 2022BRP/CAN-AM MAVERICK 1000 X3 X MR TURBO RR 64 IN DPS 2023BRP/CAN-AM MAVERICK 1000 X3 X MR TURBO RR 64 IN DPS 2024BRP/CAN-AM MAVERICK 1000 X3 X MR TURBO RR 64 IN DPS 2025BRP/CAN-AM MAVERICK 1000 X3 X MR TURBO RR 72 IN DPS 2022BRP/CAN-AM MAVERICK 1000 X3 X MR TURBO RR 72 IN DPS 2023BRP/CAN-AM MAVERICK 1000 X3 X MR TURBO RR 72 IN DPS 2024BRP/CAN-AM MAVERICK 1000 X3 X MR TURBO RR 72 IN DPS 2025BRP/CAN-AM MAVERICK 1000 X3 X MR TURBO RR DPS 2021BRP/CAN-AM MAVERICK 1000 X3 X RC TURBO RR 64IN DPS 2022BRP/CAN-AM MAVERICK 1000 X3 X RC TURBO RR 64IN DPS 2023BRP/CAN-AM MAVERICK 1000 X3 X RC TURBO RR 64IN DPS 2024BRP/CAN-AM MAVERICK 1000 X3 X RC TURBO RR 64IN DPS 2025BRP/CAN-AM MAVERICK 1000 X3 X RC TURBO RR 72 IN DPS 2022BRP/CAN-AM MAVERICK 1000 X3 X RC TURBO RR 72 IN DPS 2023BRP/CAN-AM MAVERICK 1000 X3 X RC TURBO RR 72 IN DPS 2024BRP/CAN-AM MAVERICK 1000 X3 X RC TURBO RR 72 IN DPS 2025BRP/CAN-AM MAVERICK 1000 X3 X RC TURBO RR DPS 2021BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS 2021BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS 2022BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS 2023BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS 2024BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS 2025BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS S. SHOX 2021BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS S. SHOX 2022BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS S. SHOX 2023BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS S. SHOX 2024BRP/CAN-AM MAVERICK 1000 X3 X RS TURBO RR DPS S. SHOX 2025BRP/CAN-AM MAVERICK MAX 1000 X3 DS TURBO RR DPS 2022BRP/CAN-AM MAVERICK MAX 1000 X3 DS TURBO RR DPS 2023BRP/CAN-AM MAVERICK MAX 1000 X3 DS TURBO RR DPS 2024BRP/CAN-AM MAVERICK MAX 1000 X3 DS TURBO RR DPS 2025BRP/CAN-AM MAVERICK MAX 1000 X3 RS TURBO RR DPS 2023BRP/CAN-AM MAVERICK MAX 1000 X3 RS TURBO RR DPS 2024BRP/CAN-AM MAVERICK MAX 1000 X3 RS TURBO RR DPS 2025BRP/CAN-AM MAVERICK MAX 1000 X3 X DS TURBO RR DPS 2021BRP/CAN-AM MAVERICK MAX 1000 X3 X DS TURBO RR DPS 2022BRP/CAN-AM MAVERICK MAX 1000 X3 X DS TURBO RR DPS 2023BRP/CAN-AM MAVERICK MAX 1000 X3 X DS TURBO RR DPS 2024BRP/CAN-AM MAVERICK MAX 1000 X3 X DS TURBO RR DPS 2025BRP/CAN-AM MAVERICK MAX 1000 X3 X MR TURBO RR DPS 2021BRP/CAN-AM MAVERICK MAX 1000 X3 X MR TURBO RR DPS 2022BRP/CAN-AM MAVERICK MAX 1000 X3 X MR TURBO RR DPS 2023BRP/CAN-AM MAVERICK MAX 1000 X3 X MR TURBO RR DPS 2024BRP/CAN-AM MAVERICK MAX 1000 X3 X MR TURBO RR DPS 2025BRP/CAN-AM MAVERICK MAX 1000 X3 X RC TURBO RR DPS 2024BRP/CAN-AM MAVERICK MAX 1000 X3 X RC TURBO RR DPS 2025BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS 2021BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS 2022BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS 2023BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS 2024BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS 2025BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS S.SHOX 2021BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS S.SHOX 2022BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS S.SHOX 2023BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS S.SHOX 2024BRP/CAN-AM MAVERICK MAX 1000 X3 X RS TURBO RR DPS S.SHOX 2025
Makes BRP/CAN-AM
Models MAVERICK 1000 X3 DS TURBO RR DPSMAVERICK 1000 X3 RS TURBO RR DPSMAVERICK 1000 X3 X DS TURBO RR DPSMAVERICK 1000 X3 X MR TURBO RR 64 IN DPSMAVERICK 1000 X3 X MR TURBO RR 72 IN DPSMAVERICK 1000 X3 X MR TURBO RR DPSMAVERICK 1000 X3 X RC TURBO RR 64IN DPSMAVERICK 1000 X3 X RC TURBO RR 72 IN DPSMAVERICK 1000 X3 X RC TURBO RR DPSMAVERICK 1000 X3 X RS TURBO RR DPSMAVERICK 1000 X3 X RS TURBO RR DPS S. SHOXMAVERICK MAX 1000 X3 DS TURBO RR DPSMAVERICK MAX 1000 X3 RS TURBO RR DPSMAVERICK MAX 1000 X3 X DS TURBO RR DPSMAVERICK MAX 1000 X3 X MR TURBO RR DPSMAVERICK MAX 1000 X3 X RC TURBO RR DPSMAVERICK MAX 1000 X3 X RS TURBO RR DPSMAVERICK MAX 1000 X3 X RS TURBO RR DPS S.SHOX
Years 20212022202320242025
