• STATOR + ALUMINUM MOSFET REGULATOR (TRIUMPH)

STATOR + ALUMINUM MOSFET REGULATOR (TRIUMPH)

STATOR + ALUMINUM MOSFET REGULATOR (TRIUMPH)

Low stock! Only 1 left
$472.99
$472.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

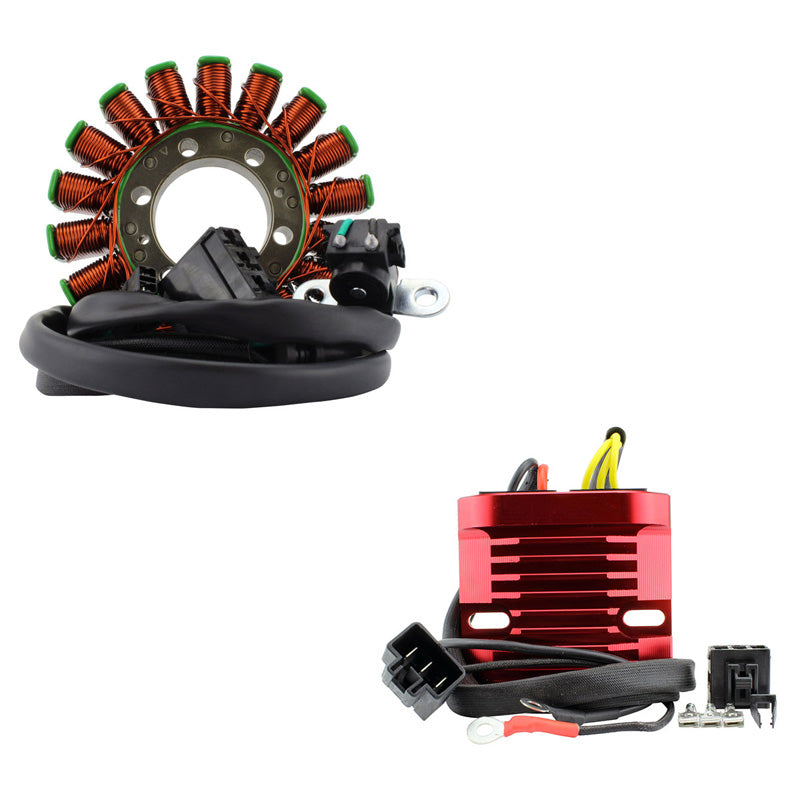

Brand new aftermarket Generator Stator + RMSTATOR Red CNC Machined Aluminum Mosfet Regulator kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Generator Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included

RMSTATOR Red Machined Aluminum Mosfet Regulator

Our new RMSTATORmachined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATORred regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.



  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components



We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 18 mm
Length of wires stator to grommet: 240 mm
Length of wires grommet to plug: 190 mm & 880 mm
Length of pickup coil's wire to grommet: 270 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Alternator: to ground = O.L
Pickup: Green to black = 240 ohms +-20%

RMSTATOR Red Machined Aluminum Mosfet Regulator

Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 1010 mm & 350 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

This special regulator bypasses the vehicle’s failure-prone wiring harness between the regulator and battery, and instead connects directly to the battery with ring terminals for the best possible connection. For Triumph fitments please check your stator to regulator connector as there were 2 versions used and select the correct one. Our possible part numbers are :

  • RMS022-106222
  • RMS022-107616

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note : There are multiple stators possible on the 2006-2020 Triumph Daytona 675 et Dayton 675 R.

This stator replaces only OEM # T1300181 and is used on vehicles with a VIN HIGHER than 564948. For vehicles with VIN up

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR + ALUMINUM MOSFET REGULATOR (TRIUMPH)

$472.99

Product Specifications

General Information

Brandrms
LabelKIT TRIUMPH DAYTONA 675|DAYTONA 675 R 06-20
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-107634
ITL ID351-900249

Dimensions & Physical

Weight 0 lbs
Length5.1
Width2.4
Thickness6.3

Vehicle Fitment

Total Applications19
Applications POLARIS SCRAMBLER 1000 XP EPS 2019TRIUMPH DAYTONA 675 2006TRIUMPH DAYTONA 675 2007TRIUMPH DAYTONA 675 2008TRIUMPH DAYTONA 675 2009TRIUMPH DAYTONA 675 2010TRIUMPH DAYTONA 675 2011TRIUMPH DAYTONA 675 2012TRIUMPH DAYTONA 675 2013TRIUMPH DAYTONA 675 2014TRIUMPH DAYTONA 675 2015TRIUMPH DAYTONA 675 2016TRIUMPH DAYTONA 675R 2011TRIUMPH DAYTONA 675R 2012TRIUMPH DAYTONA 675R 2013TRIUMPH DAYTONA 675R 2014TRIUMPH DAYTONA 675R 2015TRIUMPH DAYTONA 675R 2016TRIUMPH DAYTONA 675R 2017
Makes POLARISTRIUMPH
Models DAYTONA 675DAYTONA 675RSCRAMBLER 1000 XP EPS
Years 2006200720082009201020112012201320142015201620172019
