• STATOR

STATOR

STATOR

Low stock! Only 1 left
$236.99
$236.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

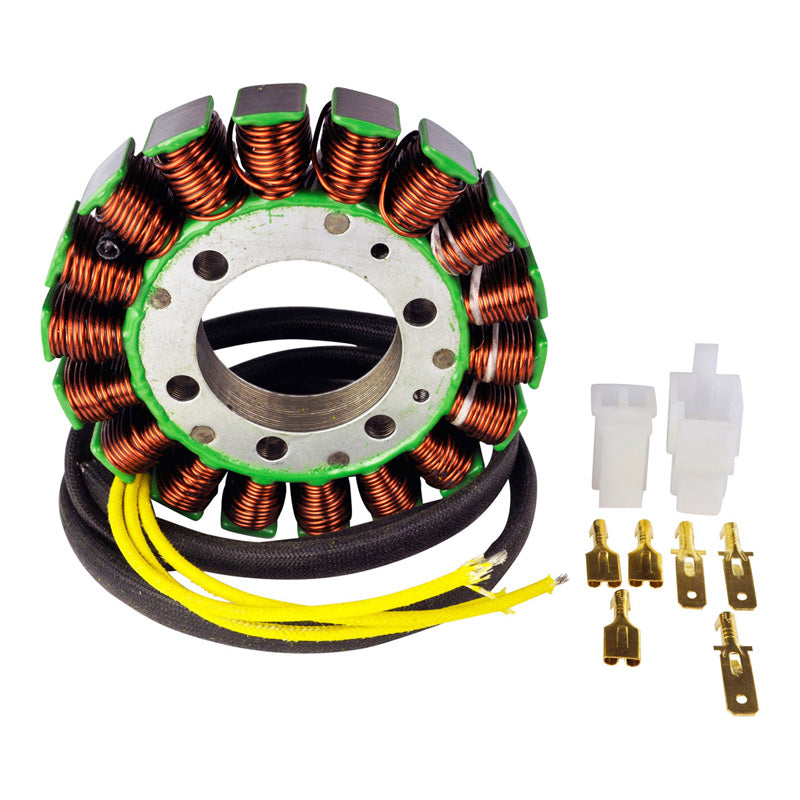

Brand new stator

  • You must re-install your original grommet and the new connector (see picture).
  • Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 42mm
Exterior diameter: 103mm
Thickness: 16mm
Length of wires stator to connectors: 900mm

Other specifications:
Number of wires : 3
Number of terminals : 3

Wire to wire resistance:
Alternator : Yellow between each Yellow = 0.4 ohms+/-20%
Alternator : Yellow to Ground ?= O.L. ON DISPLAY

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note : there are two possible stators for Suzuki Intruder VS 800 1992-1997. This stator will only fit on models T and V.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR

$236.99

Product Specifications

General Information

Brandrms
LabelSTATOR HON VFR|SUZ VL/VZ|YAM XV/XT|POL 88-09
Universemoto,vtt_utv
Categorysysteme_de_charge
Supplier Part #RM01042
ITL ID351-010033

Dimensions & Physical

Weight 1.6 lbs
Length2.4
Width6.3
Thickness5.1

Vehicle Fitment

Total Applications47
Applications HONDA VTR250 1990POLARIS ATP 330 2004POLARIS MAGNUM 330 2X4 2003POLARIS MAGNUM 330 2X4 2004POLARIS MAGNUM 330 4X4 2003POLARIS MAGNUM 330 4X4 2004POLARIS MAGNUM 330 4X4 2005POLARIS MAGNUM 330 4X4 2006POLARIS TRAIL BLAZER 330 2008POLARIS TRAIL BLAZER 330 2009POLARIS TRAIL BOSS 330 2003POLARIS TRAIL BOSS 330 2004POLARIS TRAIL BOSS 330 2005POLARIS TRAIL BOSS 330 2006POLARIS TRAIL BOSS 330 2007POLARIS TRAIL BOSS 330 2008POLARIS TRAIL BOSS 330 2009SUZUKI VS800 BOULEVARD S50 2005SUZUKI VS800 BOULEVARD S50 2006SUZUKI VS800 BOULEVARD S50 2007SUZUKI VS800 BOULEVARD S50 2008SUZUKI VS800 BOULEVARD S50 2009SUZUKI VS800GL INTRUDER 1992SUZUKI VS800GL INTRUDER 1993SUZUKI VS800GL INTRUDER 1994SUZUKI VS800GL INTRUDER 1995SUZUKI VS800GL INTRUDER 1996SUZUKI VS800GL INTRUDER 1997SUZUKI VS800GL INTRUDER 1998SUZUKI VS800GL INTRUDER 1999SUZUKI VS800GL INTRUDER 2000SUZUKI VS800GL INTRUDER 2001SUZUKI VS800GL INTRUDER 2002SUZUKI VS800GL INTRUDER 2003SUZUKI VS800GL INTRUDER 2004SUZUKI VZ800 MARAUDER 1997SUZUKI VZ800 MARAUDER 1998SUZUKI VZ800 MARAUDER 1999SUZUKI VZ800 MARAUDER 2000SUZUKI VZ800 MARAUDER 2001SUZUKI VZ800 MARAUDER 2002SUZUKI VZ800 MARAUDER 2003SUZUKI VZ800 MARAUDER 2004YAMAHA XT600 1990YAMAHA XV250 VIRAGO 1988YAMAHA XV250 VIRAGO 1989YAMAHA XV250 VIRAGO 1990
Makes HONDAPOLARISSUZUKIYAMAHA
Models ATP 330MAGNUM 330 2X4MAGNUM 330 4X4TRAIL BLAZER 330TRAIL BOSS 330VS800 BOULEVARD S50VS800GL INTRUDERVTR250VZ800 MARAUDERXT600XV250 VIRAGO
Years 198819891990199219931994199519961997199819992000200120022003200420052006200720082009
