• STATOR

STATOR

STATOR

Out of stock
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

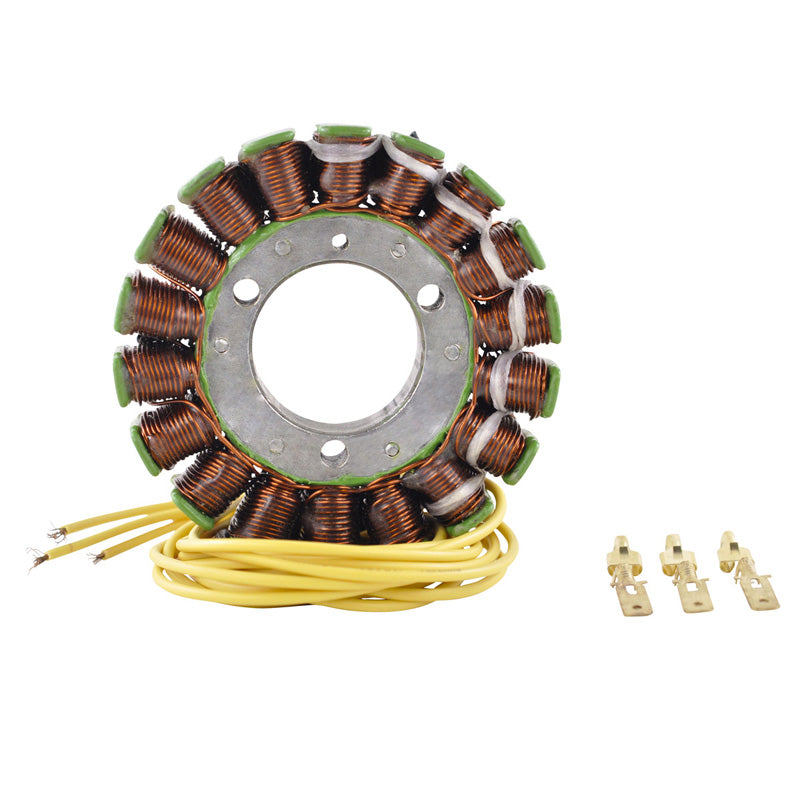

Brand new aftermarket generator stator

  • You must re-install your original connector and grommet (see picture).
  • Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
  • Higher grade of electric components.
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.9 ohms+/-20%
Alternator : Yellow to Ground = O.L. ON DISPLAY
Dimensions :
Interior diameter : 34 mm
Exterior diameter : 93 mm
Thickness : 27 mm
Harness length : 800 mm

Other specifications :
Number of wires : 3
Number of terminals : 3

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

*Beware, the KAWASAKI ZN1300 Voyager has two stators, this one is the smallest of the two (left side). Please compare to your original part before buying.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR SUZ GS500F 01-09 KAW ZN 1300 83-88
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01038
ITL ID351-010030

Dimensions & Physical

Weight 1.64 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications13
Applications KAWASAKI ZN1300-A VOYAGER 1983KAWASAKI ZN1300-A VOYAGER 1984KAWASAKI ZN1300-A VOYAGER 1985KAWASAKI ZN1300-A VOYAGER 1986SUZUKI GS500 2001SUZUKI GS500 2002SUZUKI GS500 2003SUZUKI GS500F 2004SUZUKI GS500F 2005SUZUKI GS500F 2006SUZUKI GS500F 2007SUZUKI GS500F 2008SUZUKI GS500F 2009
Makes KAWASAKISUZUKI
Models GS500GS500FZN1300-A VOYAGER
Years 1983198419851986200120022003200420052006200720082009
