• STATOR

STATOR

STATOR

Low stock! Only 1 left
$250.99
$250.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

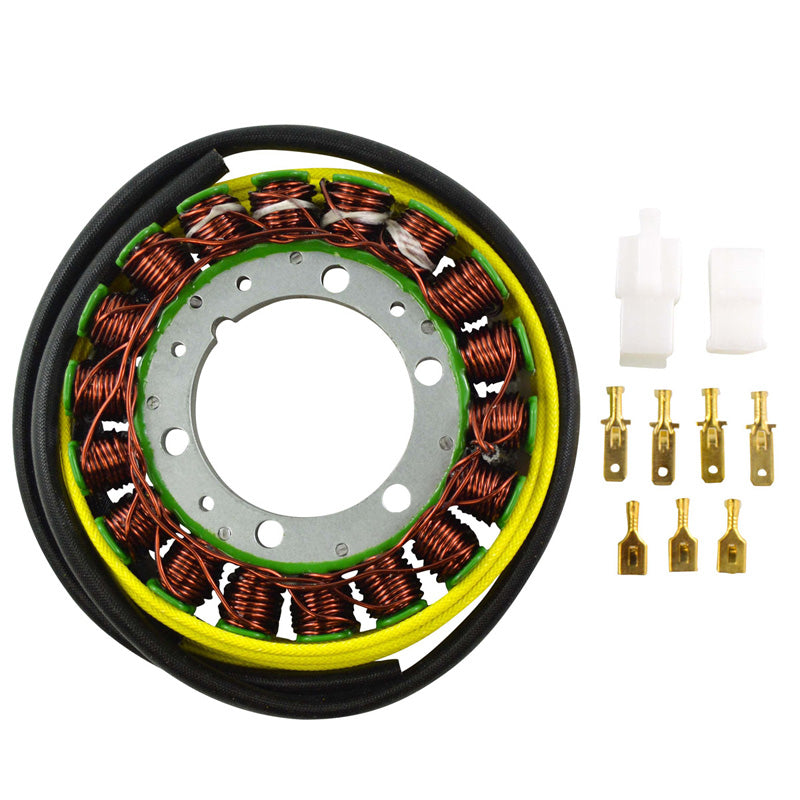

Brand new stator

  • You must re-install your original connector and grommet (see picture).
  • Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
  • Higher grade of electric components.
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 28 mm
Length of wires stator to terminals: 700 mm

Other specifications:
Number of wires:3
Number of pins:3

Wire to wire resistance:
Alternator: Between each White = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR

$250.99

Product Specifications

General Information

Brandrms
LabelSTATOR KAW VN1500|SUZ LS650|HON XR650L 86-20
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01021
ITL ID351-010016

Dimensions & Physical

Weight 1.95 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications76
Applications HONDA XR650L 1993HONDA XR650L 1994HONDA XR650L 1995HONDA XR650L 1996HONDA XR650L 1997HONDA XR650L 1998HONDA XR650L 1999HONDA XR650L 2000HONDA XR650L 2001HONDA XR650L 2002HONDA XR650L 2003HONDA XR650L 2004HONDA XR650L 2005HONDA XR650L 2006HONDA XR650L 2007HONDA XR650L 2008HONDA XR650L 2009HONDA XR650L 2010HONDA XR650L 2011HONDA XR650L 2012HONDA XR650L 2013HONDA XR650L 2014HONDA XR650L 2015HONDA XR650L 2016HONDA XR650L 2017KAWASAKI VN1500-A VULCAN 88 1987KAWASAKI VN1500-A VULCAN 88 1988KAWASAKI VN1500-A VULCAN 88 1989KAWASAKI VN1500-A VULCAN CLASSIC 1992KAWASAKI VN1500-A VULCAN CLASSIC 1993KAWASAKI VN1500-A VULCAN CLASSIC 1994KAWASAKI VN1500-A VULCAN CLASSIC 1995KAWASAKI VN1500-D VULCAN CLASSIC 1996KAWASAKI VN1500-D VULCAN CLASSIC 1997KAWASAKI VN1500-E VULCAN CLASSIC 1998KAWASAKI VN1500-E VULCAN CLASSIC 1999KAWASAKI ZX600-G NINJA ZX-6R 1998KAWASAKI ZX600-G NINJA ZX-6R 1999KAWASAKI ZX900-C NINJA ZX-9R 1998KAWASAKI ZX900-C NINJA ZX-9R 1999KAWASAKI ZX900-E NINJA ZX-9R 2000KAWASAKI ZX900-E NINJA ZX-9R 2001KAWASAKI ZX900-F NINJA ZX-9R 2002KAWASAKI ZX900-F NINJA ZX-9R 2003SUZUKI LS650 BOULEVARD S40 2005SUZUKI LS650 BOULEVARD S40 2006SUZUKI LS650 BOULEVARD S40 2007SUZUKI LS650 BOULEVARD S40 2008SUZUKI LS650 BOULEVARD S40 2009SUZUKI LS650 BOULEVARD S40 2010SUZUKI LS650 BOULEVARD S40 2011SUZUKI LS650 BOULEVARD S40 2012SUZUKI LS650 BOULEVARD S40 2013SUZUKI LS650 BOULEVARD S40 2014SUZUKI LS650 BOULEVARD S40 2015SUZUKI LS650 BOULEVARD S40 2016SUZUKI LS650 BOULEVARD S40 2017SUZUKI LS650 BOULEVARD S40 2018SUZUKI LS650 BOULEVARD S40 2019SUZUKI LS650 SAVAGE 1986SUZUKI LS650 SAVAGE 1987SUZUKI LS650 SAVAGE 1988SUZUKI LS650 SAVAGE 1989SUZUKI LS650 SAVAGE 1990SUZUKI LS650 SAVAGE 1991SUZUKI LS650 SAVAGE 1992SUZUKI LS650 SAVAGE 1993SUZUKI LS650 SAVAGE 1996SUZUKI LS650 SAVAGE 1997SUZUKI LS650 SAVAGE 1998SUZUKI LS650 SAVAGE 1999SUZUKI LS650 SAVAGE 2000SUZUKI LS650 SAVAGE 2001SUZUKI LS650 SAVAGE 2002SUZUKI LS650 SAVAGE 2003SUZUKI LS650 SAVAGE 2004
Makes HONDAKAWASAKISUZUKI
Models LS650 BOULEVARD S40LS650 SAVAGEVN1500-A VULCAN 88VN1500-A VULCAN CLASSICVN1500-D VULCAN CLASSICVN1500-E VULCAN CLASSICXR650LZX600-G NINJA ZX-6RZX900-C NINJA ZX-9RZX900-E NINJA ZX-9RZX900-F NINJA ZX-9R
Years 1986198719881989199019911992199319941995199619971998199920002001200220032004200520062007200820092010201120122013201420152016201720182019
