• STATOR

STATOR

STATOR

3 in stock
$280.99
$280.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

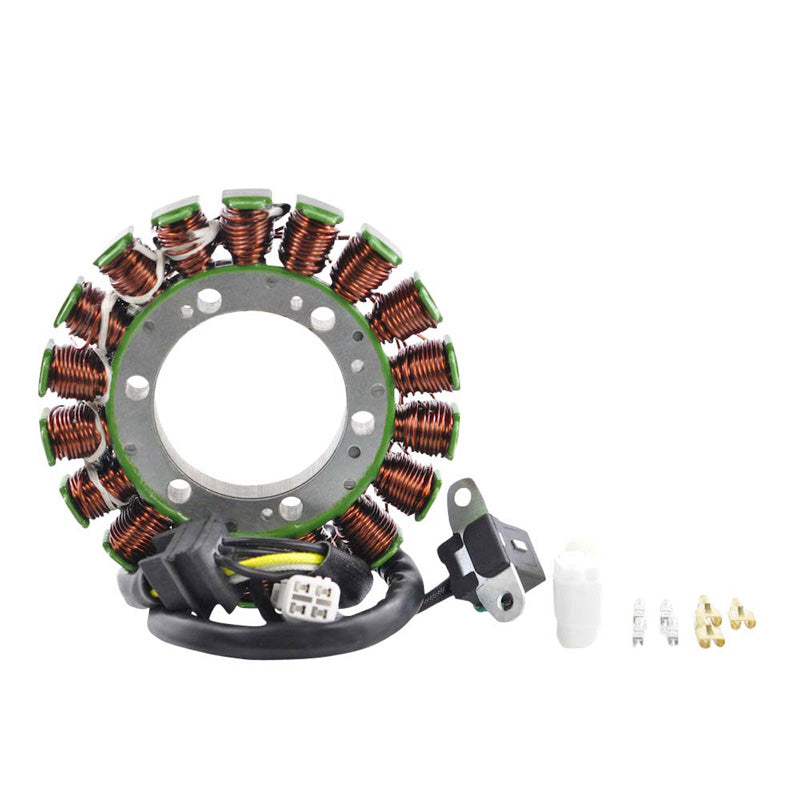

Brand new stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Rubber grommet included
  • All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm

Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7

Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
STATOR

$280.99

Product Specifications

General Information

Brandrms
LabelSTATOR A-C 375-650 02-12|SUZ LT-A/F400 02-07
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM01015
ITL ID351-010011

Dimensions & Physical

Weight 2.31 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications67
Applications ARCTIC CAT 375 2X4 AUTOMATIC 2002ARCTIC CAT 375 4X4 AUTOMATIC 2002ARCTIC CAT 400 2X4 AUTOMATIC FIS 2003ARCTIC CAT 400 2X4 AUTOMATIC FIS 2004ARCTIC CAT 400 2X4 MANUAL FIS 2003ARCTIC CAT 400 2X4 MANUAL FIS 2004ARCTIC CAT 400 4X4 AUTOMATIC 2003ARCTIC CAT 400 4X4 AUTOMATIC 2004ARCTIC CAT 400 4X4 AUTOMATIC 2005ARCTIC CAT 400 4X4 AUTOMATIC FIS 2003ARCTIC CAT 400 4X4 AUTOMATIC FIS 2004ARCTIC CAT 400 4X4 AUTOMATIC FIS 2005ARCTIC CAT 400 4X4 AUTOMATIC FIS 2006ARCTIC CAT 400 4X4 AUTOMATIC FIS 2007ARCTIC CAT 400 4X4 AUTOMATIC FIS 2008ARCTIC CAT 400 4X4 AUTOMATIC TBX 2004ARCTIC CAT 400 4X4 AUTOMATIC TBX 2005ARCTIC CAT 400 4X4 AUTOMATIC TBX 2006ARCTIC CAT 400 4X4 AUTOMATIC TRV 2006ARCTIC CAT 400 4X4 AUTOMATIC TRV 2007ARCTIC CAT 400 4X4 AUTOMATIC TRV 2008ARCTIC CAT 400 4X4 AUTOMATIC VP 2005ARCTIC CAT 400 4X4 AUTOMATIC VP 2006ARCTIC CAT 400 4X4 MANUAL 2003ARCTIC CAT 400 4X4 MANUAL 2004ARCTIC CAT 400 4X4 MANUAL 2006ARCTIC CAT 400 4X4 MANUAL FIS 2003ARCTIC CAT 400 4X4 MANUAL FIS 2004ARCTIC CAT 400 4X4 MANUAL FIS 2005ARCTIC CAT 400 4X4 MANUAL FIS 2006ARCTIC CAT 400 4X4 MANUAL FIS 2007ARCTIC CAT 400 4X4 MANUAL FIS 2008ARCTIC CAT 400 4X4 MANUAL VP 2005ARCTIC CAT 400 4X4 MANUAL VP 2006ARCTIC CAT 650 4X4 AUTOMATIC MUDPRO 2010ARCTIC CAT 650 H1 2011ARCTIC CAT 650 H1 4X4 AUTOMATIC 2005ARCTIC CAT 650 H1 4X4 AUTOMATIC 2006ARCTIC CAT 650 H1 4X4 AUTOMATIC FIS 2007ARCTIC CAT 650 H1 4X4 AUTOMATIC FIS 2008ARCTIC CAT 650 H1 4X4 AUTOMATIC TBX 2007ARCTIC CAT 650 H1 4X4 AUTOMATIC TRV 2007ARCTIC CAT 650 H1 4X4 AUTOMATIC TRV 2008ARCTIC CAT 650 TBX 2009ARCTIC CAT 650 TRV 2009ARCTIC CAT PROWLER 650 H1 2007ARCTIC CAT PROWLER 650 H1 2008ARCTIC CAT PROWLER 650 XT 2009ARCTIC CAT PROWLER 650 XT H1 2006ARCTIC CAT PROWLER 650 XT H1 2007ARCTIC CAT PROWLER 650 XT H1 2008SUZUKI LT-A400 - EIGER AUTO 2WD 2003SUZUKI LT-A400 - EIGER AUTO 2WD 2004SUZUKI LT-A400F - EIGER AUTO 4WD 2002SUZUKI LT-A400F - EIGER AUTO 4WD 2003SUZUKI LT-A400F - EIGER AUTO 4WD 2004SUZUKI LT-A400F - EIGER AUTO 4WD 2005SUZUKI LT-A400F - EIGER AUTO 4WD 2006SUZUKI LT-A400F - EIGER AUTO 4WD 2007SUZUKI LT-F400 - EIGER 2WD 2003SUZUKI LT-F400 - EIGER 2WD 2004SUZUKI LT-F400F - EIGER 4WD 2002SUZUKI LT-F400F - EIGER 4WD 2003SUZUKI LT-F400F - EIGER 4WD 2004SUZUKI LT-F400F - EIGER 4WD 2005SUZUKI LT-F400F - EIGER 4WD 2006SUZUKI LT-F400F - EIGER 4WD 2007
Makes ARCTIC CATSUZUKI
Models 375 2X4 AUTOMATIC375 4X4 AUTOMATIC400 2X4 AUTOMATIC FIS400 2X4 MANUAL FIS400 4X4 AUTOMATIC400 4X4 AUTOMATIC FIS400 4X4 AUTOMATIC TBX400 4X4 AUTOMATIC TRV400 4X4 AUTOMATIC VP400 4X4 MANUAL400 4X4 MANUAL FIS400 4X4 MANUAL VP650 4X4 AUTOMATIC MUDPRO650 H1650 H1 4X4 AUTOMATIC650 H1 4X4 AUTOMATIC FIS650 H1 4X4 AUTOMATIC TBX650 H1 4X4 AUTOMATIC TRV650 TBX650 TRVLT-A400 - EIGER AUTO 2WDLT-A400F - EIGER AUTO 4WDLT-F400 - EIGER 2WDLT-F400F - EIGER 4WDPROWLER 650 H1PROWLER 650 XTPROWLER 650 XT H1
Years 2002200320042005200620072008200920102011
