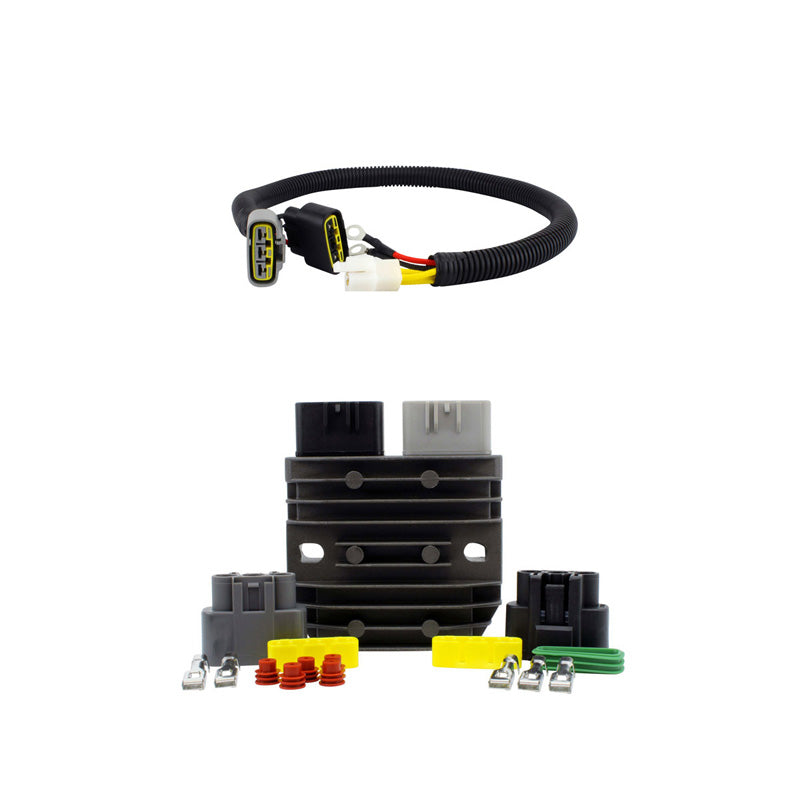

• SERIES VOLTAGE REGULATOR RECTIFIER BYPASS FREE POWER MOD

SERIES VOLTAGE REGULATOR RECTIFIER BYPASS FREE POWER MOD

SERIES VOLTAGE REGULATOR RECTIFIER BYPASS FREE POWER MOD

Low stock! Only 2 left
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

BENEFITS OF SERIES VOLTAGE REGULATORS

SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifiers and way cooler than OEM parts.

Power only flows through the electrical components when the battery is charging.

Allows the stator to have lower current flowing when not used, extending its lifetime.

The regulator is easier to mount because it is smaller than the OEM.

ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.

A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.

This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

ABOUT THE BYPASS HARNESS

This bypass harness allows you to connect your new series regulator directly to your battery. Bypassing feet of wire and multiple connectors on your main wiring harness to provide a safer and more direct connection.

INSTALL LIKE A PRO

We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.

Specifications:

Series Regulator :

Dimensions:
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Bypass Harness :

Dimensions:
Wires length: 640 mm
Number of plugs: 3
Number of pins: 5
Number of wires: 5

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
SERIES VOLTAGE REGULATOR RECTIFIER BYPASS FREE POWER MOD

$206.99

Product Specifications

General Information

Brandrms
LabelREGULATOR SUZ DRZ400 00-22|KAW KLX400 03-04
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS020-108148
ITL ID351-020270

Dimensions & Physical

Weight 1 lbs
Length6.3
Width6.3
Thickness2.8

Vehicle Fitment

Total Applications48
Applications KAWASAKI KLX400-B 2003KAWASAKI KLX400-B 2004SUZUKI DR-Z400E 2000SUZUKI DR-Z400E 2001SUZUKI DR-Z400E 2002SUZUKI DR-Z400E 2003SUZUKI DR-Z400E 2004SUZUKI DR-Z400S 2000SUZUKI DR-Z400S 2001SUZUKI DR-Z400S 2002SUZUKI DR-Z400S 2003SUZUKI DR-Z400S 2004SUZUKI DR-Z400S 2005SUZUKI DR-Z400S 2006SUZUKI DR-Z400S 2007SUZUKI DR-Z400S 2008SUZUKI DR-Z400S 2009SUZUKI DR-Z400S 2010SUZUKI DR-Z400S 2011SUZUKI DR-Z400S 2012SUZUKI DR-Z400S 2013SUZUKI DR-Z400S 2014SUZUKI DR-Z400S 2015SUZUKI DR-Z400S 2016SUZUKI DR-Z400S 2017SUZUKI DR-Z400S 2018SUZUKI DR-Z400S 2019SUZUKI DR-Z400S 2020SUZUKI DR-Z400S 2021SUZUKI DR-Z400S 2022SUZUKI DR-Z400S 2023SUZUKI DR-Z400SM SUPER MOTO 2005SUZUKI DR-Z400SM SUPER MOTO 2006SUZUKI DR-Z400SM SUPER MOTO 2007SUZUKI DR-Z400SM SUPER MOTO 2008SUZUKI DR-Z400SM SUPER MOTO 2009SUZUKI DR-Z400SM SUPER MOTO 2010SUZUKI DR-Z400SM SUPER MOTO 2013SUZUKI DR-Z400SM SUPER MOTO 2014SUZUKI DR-Z400SM SUPER MOTO 2015SUZUKI DR-Z400SM SUPER MOTO 2016SUZUKI DR-Z400SM SUPER MOTO 2017SUZUKI DR-Z400SM SUPER MOTO 2018SUZUKI DR-Z400SM SUPER MOTO 2019SUZUKI DR-Z400SM SUPER MOTO 2020SUZUKI DR-Z400SM SUPER MOTO 2023SUZUKI DR-Z400SM SUPER MOTO 2024SUZUKI RMX250 1998
Makes KAWASAKISUZUKI
Models DR-Z400EDR-Z400SDR-Z400SM SUPER MOTOKLX400-BRMX250
Years 19982000200120022003200420052006200720082009201020112012201320142015201620172018201920202021202220232024
