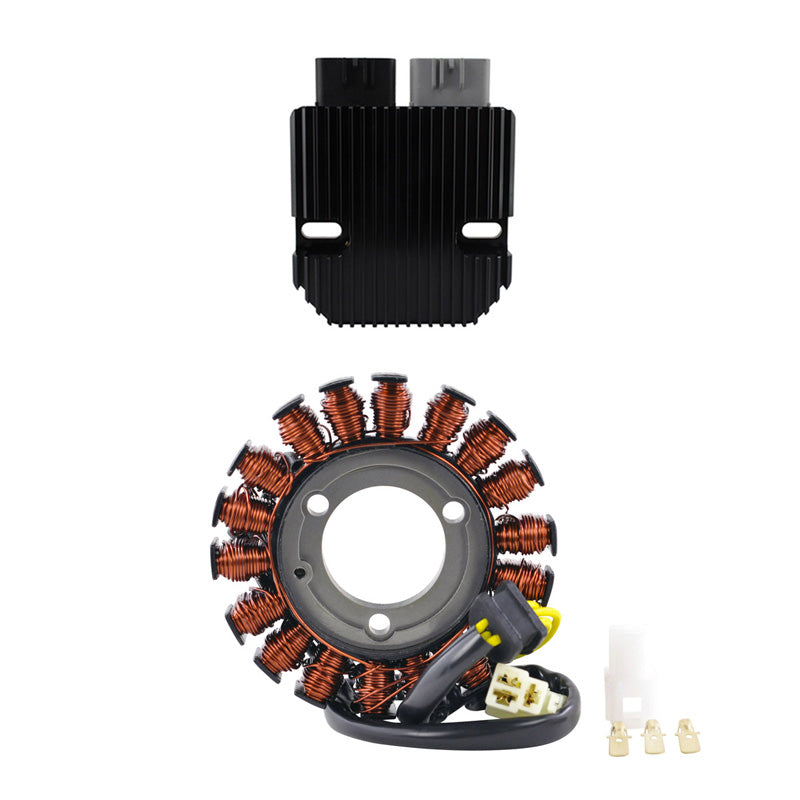

• REVOLT VOLTAGE REGULATOR + STATOR (SUZUKI)

REVOLT VOLTAGE REGULATOR + STATOR (SUZUKI)

REVOLT VOLTAGE REGULATOR + STATOR (SUZUKI)

Low stock! Only 2 left
$591.99
$591.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Brand new REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market

SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.

DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN USA
REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards. Say farewell to failures due to uneven quality control processes.

LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.

Join REVOLT, the new era of voltage regulation!

Specifications:

REVOLT Voltage Regulator Rectifier :

Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Stator :
Interior diameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 330 mm

Other specifications :
Number of wires:3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

Warning:

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
REVOLT VOLTAGE REGULATOR + STATOR (SUZUKI)

$591.99

Product Specifications

General Information

Brandrms
LabelKIT SUZ GSX-R 600 750 06-19
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS020-108028
ITL ID351-900146

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications36
Applications SUZUKI GSX-R600 2006SUZUKI GSX-R600 2007SUZUKI GSX-R600 2008SUZUKI GSX-R600 2009SUZUKI GSX-R600 2010SUZUKI GSX-R600 2011SUZUKI GSX-R600 2012SUZUKI GSX-R600 2013SUZUKI GSX-R600 2014SUZUKI GSX-R600 2015SUZUKI GSX-R600 2016SUZUKI GSX-R600 2017SUZUKI GSX-R600 2018SUZUKI GSX-R600 2019SUZUKI GSX-R600 2021SUZUKI GSX-R600 2022SUZUKI GSX-R600 2023SUZUKI GSX-R600 2024SUZUKI GSX-R750 2006SUZUKI GSX-R750 2007SUZUKI GSX-R750 2008SUZUKI GSX-R750 2009SUZUKI GSX-R750 2010SUZUKI GSX-R750 2011SUZUKI GSX-R750 2012SUZUKI GSX-R750 2013SUZUKI GSX-R750 2014SUZUKI GSX-R750 2015SUZUKI GSX-R750 2016SUZUKI GSX-R750 2017SUZUKI GSX-R750 2018SUZUKI GSX-R750 2019SUZUKI GSX-R750 2021SUZUKI GSX-R750 2022SUZUKI GSX-R750 2023SUZUKI GSX-R750 2024
Makes SUZUKI
Models GSX-R600GSX-R750
Years 200620072008200920102011201220132014201520162017201820192021202220232024
