• REVOLT VOLTAGE REGULATOR (POLARIS)

REVOLT VOLTAGE REGULATOR (POLARIS)

REVOLT VOLTAGE REGULATOR (POLARIS)

Low stock! Only 1 left
$399.99
$399.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

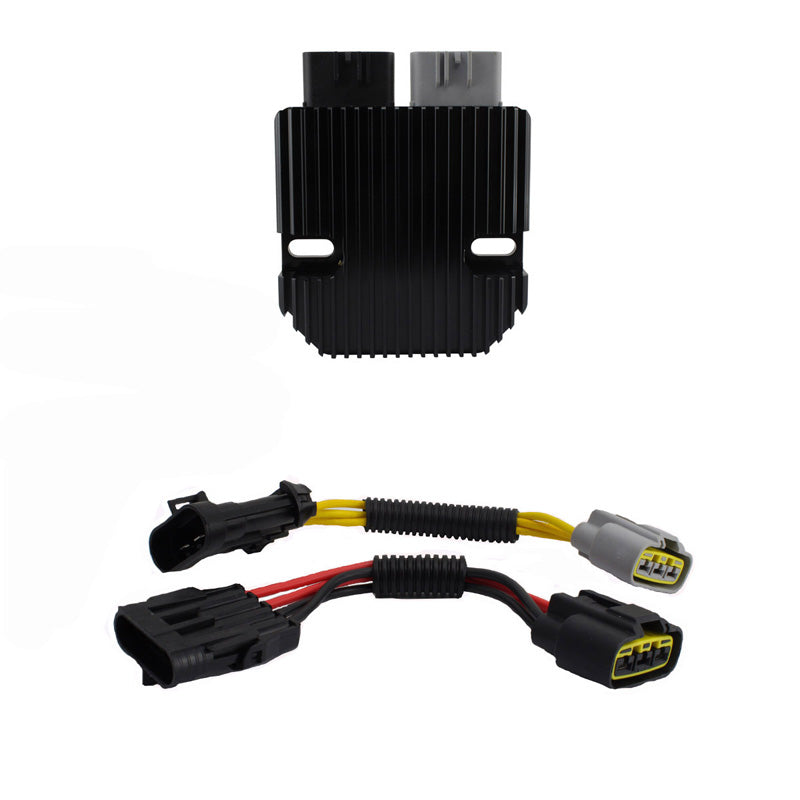

Brand new RMSTATOR REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market

SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market to considerably improve the rectifier reliability.

DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN USA
REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards. Say farewell to failures due to uneven quality control processes.

LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.

Join REVOLT, the new era of voltage regulation!

Specifications:

REVOLT Voltage Regulator Rectifier :

Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

REVOLT Harness :

Wires length : 150 mm
Number of yellow wires : 3
Number of red wires : 1
Number of green wires : 1
Number of plugs : 3

Warning:

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
REVOLT VOLTAGE REGULATOR (POLARIS)

$399.99

Product Specifications

General Information

Brandrms
LabelREGULATOR POL RANGER|RZR|SPORTSMAN 500-800 07-10
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS020-108032
ITL ID351-020269

Dimensions & Physical

Weight 1 lbs
Length6
Width4
Thickness9

Vehicle Fitment

Total Applications29
Applications POLARIS RANGER 500 EFI 4X4 2008POLARIS RANGER 500 EFI 4X4 2009POLARIS RANGER 700 EFI 2007POLARIS RANGER 700 EFI 6X6 2008POLARIS RANGER 700 EFI 6X6 2009POLARIS RANGER 700 EFI CREW 2008POLARIS RANGER 700 EFI CREW 2009POLARIS RANGER 700 HD 2009POLARIS RANGER XP 700 EFI 2008POLARIS RANGER XP 700 EFI 2009POLARIS RZR 800 2008POLARIS RZR 800 2009POLARIS RZR S 800 2009POLARIS SPORTSMAN 500 EFI 2008POLARIS SPORTSMAN 500 EFI 2009POLARIS SPORTSMAN 500 TOURING 2008POLARIS SPORTSMAN 500 X2 2008POLARIS SPORTSMAN 500 X2 2009POLARIS SPORTSMAN 700 EFI 2007POLARIS SPORTSMAN 800 EFI 2007POLARIS SPORTSMAN 800 EFI 2010POLARIS SPORTSMAN 800 EFI BIG BOSS 6X6 2009POLARIS SPORTSMAN 800 EFI BIG BOSS 6X6 2010POLARIS SPORTSMAN 800 EFI TOURING 2008POLARIS SPORTSMAN 800 HO EFI 2008POLARIS SPORTSMAN 800 HO EFI 2009POLARIS SPORTSMAN X2 700 EFI 2008POLARIS SPORTSMAN X2 800 EFI 2007POLARIS SPORTSMAN X2 800 EFI 2009
Makes POLARIS
Models RANGER 500 EFI 4X4RANGER 700 EFIRANGER 700 EFI 6X6RANGER 700 EFI CREWRANGER 700 HDRANGER XP 700 EFIRZR 800RZR S 800SPORTSMAN 500 EFISPORTSMAN 500 TOURINGSPORTSMAN 500 X2SPORTSMAN 700 EFISPORTSMAN 800 EFISPORTSMAN 800 EFI BIG BOSS 6X6SPORTSMAN 800 EFI TOURINGSPORTSMAN 800 HO EFISPORTSMAN X2 700 EFISPORTSMAN X2 800 EFI
Years 2007200820092010
