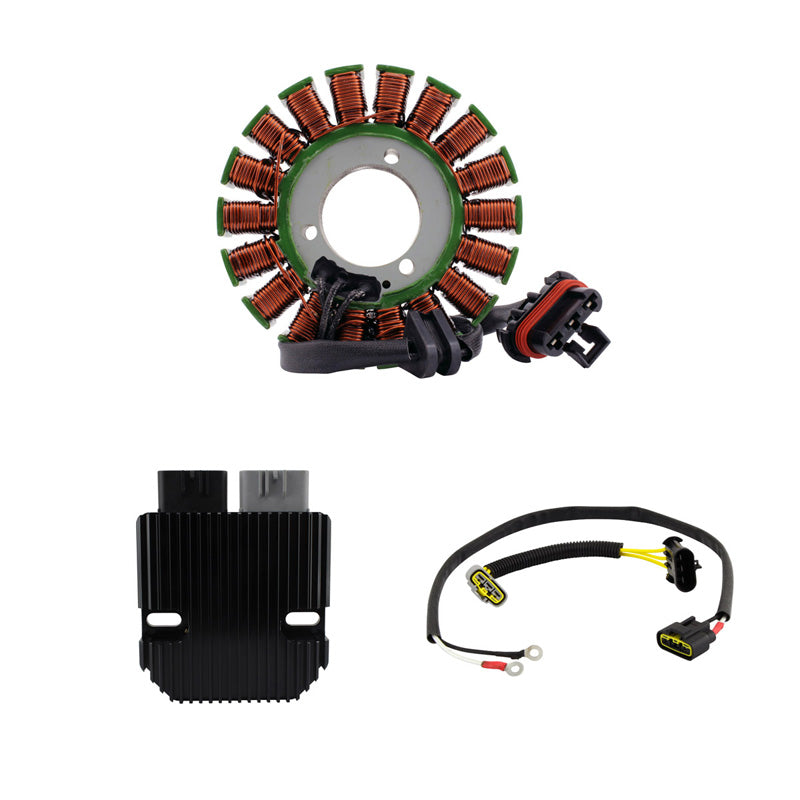

REVOLT REGULATOR + STATOR (VICTORY)

REVOLT REGULATOR + STATOR (VICTORY)

Out of stock
$695.99
$695.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

Brand new REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market

SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.

DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN USA
REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards. Say farewell to failures due to uneven quality control processes.

LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.

Join REVOLT, the new era of voltage regulation!

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Connectors included
  • Rubber grommet included
  • Back Plate included
  • All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

REVOLT Voltage Regulator Rectifier :

Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.6 V +/- 0.3 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Stator :

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 125 mm
Thickness : 21 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 250 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black to Black = 0.3 ohms +/-20%

Harness :

Wires length : 720 mm
Wires length : 250 mm
Number of yellow wires : 3
Number of red wires : 1
Number of green wires : 1
Number of plugs : 2

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

PLEASE NOTE : The OEM 2204532 is corresponding to the kit Stator + Rotor offered by Victory. Our part corresponds to the stator in this kit. WE DO NOT INCLUDE the rotor.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT VIC CROSS COUNTRY|VISION 08-17
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-108114
ITL ID351-900257

Dimensions & Physical

Weight 4 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications46
Applications POLARIS SPORTSMAN 1000 XP EPS 2019VICTORY CROSS COUNTRY 2010VICTORY CROSS COUNTRY 2011VICTORY CROSS COUNTRY 2012VICTORY CROSS COUNTRY 2013VICTORY CROSS COUNTRY 2014VICTORY CROSS COUNTRY 2015VICTORY CROSS COUNTRY 2016VICTORY CROSS COUNTRY 2017VICTORY CROSS COUNTRY TOUR 2012VICTORY CROSS COUNTRY TOUR 2013VICTORY CROSS COUNTRY TOUR 2014VICTORY CROSS COUNTRY TOUR 2015VICTORY CROSS COUNTRY TOUR 2016VICTORY CROSS COUNTRY TOUR 2017VICTORY CROSS ROADS 2010VICTORY CROSS ROADS 8-BALL 2014VICTORY CROSS ROADS CLASSIC 2013VICTORY CROSS ROADS CLASSIC 2014VICTORY CROSS ROADS CUSTOM 2011VICTORY CROSS ROADS CUSTOM 2012VICTORY CROSS ROADS LE 2012VICTORY HARD-BALL 2012VICTORY HARD-BALL 2013VICTORY MAGNUM 2015VICTORY MAGNUM 2016VICTORY MAGNUM 2017VICTORY VISION (ARLEN NESS) 2009VICTORY VISION (ARLEN NESS) 2010VICTORY VISION (ARLEN NESS) 2011VICTORY VISION (ARLEN NESS) 2012VICTORY VISION (ARLEN NESS) 2013VICTORY VISION 8 BALL 2010VICTORY VISION 8 BALL 2011VICTORY VISION STREET 2008VICTORY VISION STREET 2009VICTORY VISION TOUR 2008VICTORY VISION TOUR 2009VICTORY VISION TOUR 2010VICTORY VISION TOUR 2011VICTORY VISION TOUR 2012VICTORY VISION TOUR 2013VICTORY VISION TOUR 2014VICTORY VISION TOUR 2015VICTORY VISION TOUR 2016VICTORY VISION TOUR 2017
Makes POLARISVICTORY
Models CROSS COUNTRYCROSS COUNTRY TOURCROSS ROADSCROSS ROADS 8-BALLCROSS ROADS CLASSICCROSS ROADS CUSTOMCROSS ROADS LEHARD-BALLMAGNUMSPORTSMAN 1000 XP EPSVISION (ARLEN NESS)VISION 8 BALLVISION STREETVISION TOUR
Years 20082009201020112012201320142015201620172019
