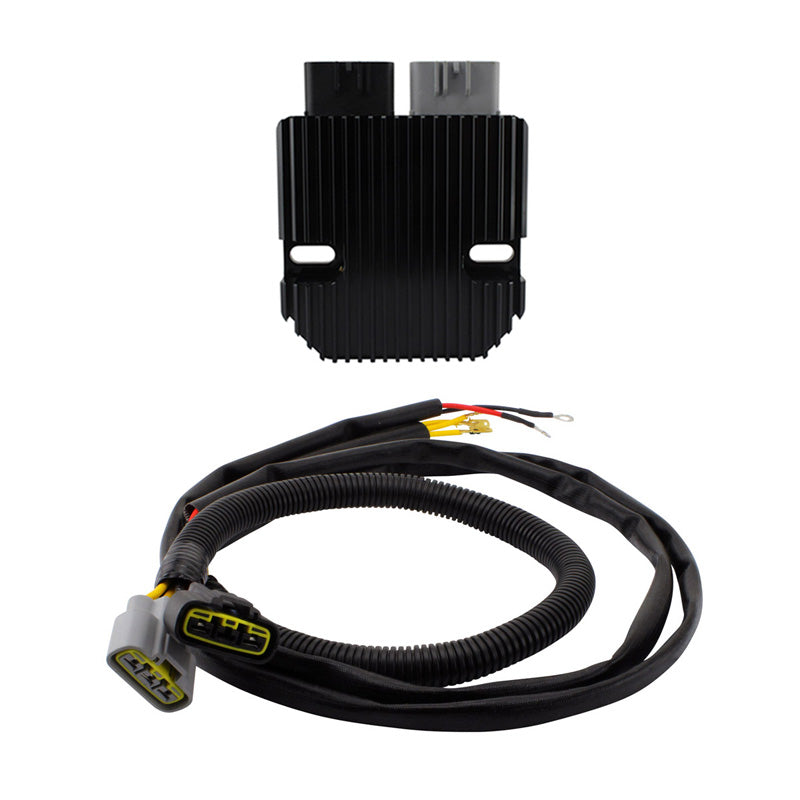

REVOLT REGULATOR + RMSTATOR POLARIS SUREPOWER ECM BYPASS HARNESS (POLARIS)

REVOLT REGULATOR + RMSTATOR POLARIS SUREPOWER ECM BYPASS HARNESS (POLARIS)

Out of stock
$399.99
$399.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

Brand new REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market

SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.

DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN USA
REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards. Say farewell to failures due to uneven quality control processes.

LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.

Join REVOLT, the new era of voltage regulation!

Specifications:

REVOLT Voltage Regulator Rectifier :

Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Polaris Surepower Module Regulator bypass Harness :

Wires length : 1000 mm
Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 3

Warning:

Many years of Polaris ATV’s used the SurePower ECM module that controlled many things on the vehicle, including circuit breakers, cooling fan operation, and most importantly voltage regulation for the battery charging system. Most of these functions are reliable, except for the most important, the voltage regulator rectifier! The voltage regulator often fails, and leaves you faced with replacing the entire module just for this one function, which is likely to fail again.

RMSTATOR now provides a SurePower module Regulator Bypass kit to eliminate this problem on these popular ATVs. Our kit includes our heavy duty CNC aluminum MOSFET voltage regulator rectifier, a plug & play wiring harness, and mounting hardware. Simply mount the new voltage regulator on your frame, plug in and route the harness directly to the stator connector and battery terminals, and you’re ready to ride. You’ll never have to worry about a failing voltage regulator or SurePower replacement again.

This replacement kit is only meant to bypass the internal voltage regulator on Polaris ATVs that use the older black box and newer silver box (with single large connector) SurePower ECM Module.

Replaces these OEM Numbers :

4010684
4011088
4010937
4011110
2203348
2203349
4010697
4010944

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelREGULATOR SPORTSMAN|MAGNUM 330-700 03-06
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS020-107998
ITL ID351-020266

Dimensions & Physical

Weight 5 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications15
Applications POLARIS ATP 330 2004POLARIS MAGNUM 330 2X4 2003POLARIS MAGNUM 330 2X4 2004POLARIS MAGNUM 330 4X4 2003POLARIS MAGNUM 330 4X4 2004POLARIS SCRAMBLER 500 4X4 2005POLARIS SCRAMBLER 500 4X4 2006POLARIS SPORTSMAN 450 2006POLARIS SPORTSMAN 500 6X6 2004POLARIS SPORTSMAN 500 6X6 2005POLARIS SPORTSMAN 500 6X6 2006POLARIS SPORTSMAN 500 HO 2005POLARIS SPORTSMAN 500 HO 2006POLARIS TRAIL BOSS 330 2003POLARIS TRAIL BOSS 330 2004
Makes POLARIS
Models ATP 330MAGNUM 330 2X4MAGNUM 330 4X4SCRAMBLER 500 4X4SPORTSMAN 450SPORTSMAN 500 6X6SPORTSMAN 500 HOTRAIL BOSS 330
Years 2003200420052006
