• REGULATOR RECTIFIER (BMW)

REGULATOR RECTIFIER (BMW)

REGULATOR RECTIFIER (BMW)

Out of stock
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

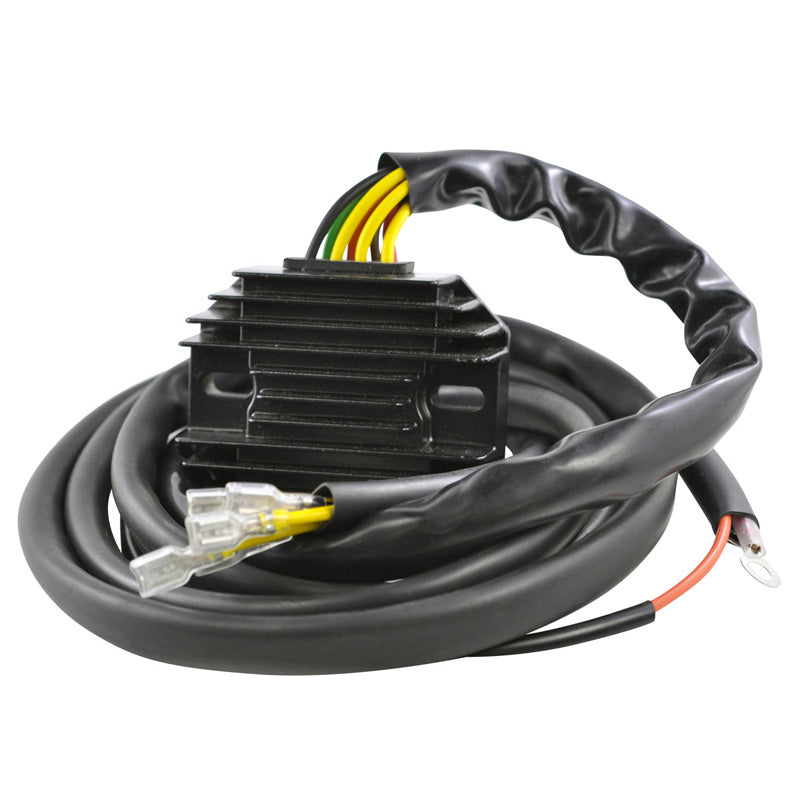

Brand new aftermarket voltage regulator rectifier

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 71 mm
Length: 81 mm
Height: 29 mm
Wires length: 1030, 1450, 1530 mm
Fixation holes center to center: 60 mm

Other specifications:
Number of plugs: 6
Number of pins: 8
Number of wires: 8
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20? to 85?

Wire Color & Function
3 Yellow : Stator connection
Black: D- terminal (field coil negative)
Brown: DF terminal (field coil positive)
Red: Battery +
Green: Battery –
Orange: Ignition Switch +

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelREGULATOR BMW R50-R100|MOTO GUZZI 750-850 70-01
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS020-102772
ITL ID351-020154

Dimensions & Physical

Weight 1.51 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications84
Applications BMW R100 1981BMW R100 1982BMW R100 1983BMW R100 1984BMW R100/7 1977BMW R100/7 1978BMW R100CS 1981BMW R100GS 1988BMW R100GS 1989BMW R100GS 1990BMW R100GS 1991BMW R100GS 1992BMW R100GS 1993BMW R100GS 1994BMW R100GS PARIS-DAKAR 1989BMW R100GS PARIS-DAKAR 1990BMW R100GS PARIS-DAKAR 1991BMW R100GS PARIS-DAKAR 1992BMW R100GS PARIS-DAKAR 1993BMW R100R 1992BMW R100R 1993BMW R100R 1994BMW R100R 1995BMW R100RS 1977BMW R100RS 1978BMW R100RS 1979BMW R100RS 1980BMW R100RS 1981BMW R100RS 1982BMW R100RS 1983BMW R100RS 1984BMW R100RS 1987BMW R100RS 1988BMW R100RS 1989BMW R100RS 1990BMW R100RS 1991BMW R100RS 1992BMW R100RS 1993BMW R100RT 1979BMW R100RT 1980BMW R100RT 1981BMW R100RT 1982BMW R100RT 1983BMW R100RT 1984BMW R100RT 1988BMW R100RT 1989BMW R100RT 1990BMW R100RT 1991BMW R100RT 1992BMW R100RT 1993BMW R100RT 1994BMW R100RT 1995BMW R100S 1977BMW R100S 1978BMW R100S 1979BMW R100S 1980BMW R65 1979BMW R65 1980BMW R65 1981BMW R65 1982BMW R65 1983BMW R65 1984BMW R65 1985BMW R65 1986BMW R65 1987BMW R65 1988BMW R65LS 1982BMW R65LS 1983BMW R65LS 1984BMW R75/7 1977BMW R80/7 1980BMW R80GS 1981BMW R80GS 1982BMW R80GS 1983BMW R80GS 1984BMW R80GS 1985BMW R80GS 1986BMW R80RT 1983BMW R80RT 1984BMW R80RT 1985BMW R80RT 1986BMW R80RT 1987BMW R80ST 1983BMW R80ST 1984
Makes BMW
Models R100R100/7R100CSR100GSR100GS PARIS-DAKARR100RR100RSR100RTR100SR65R65LSR75/7R80/7R80GSR80RTR80ST
Years 1977197819791980198119821983198419851986198719881989199019911992199319941995
