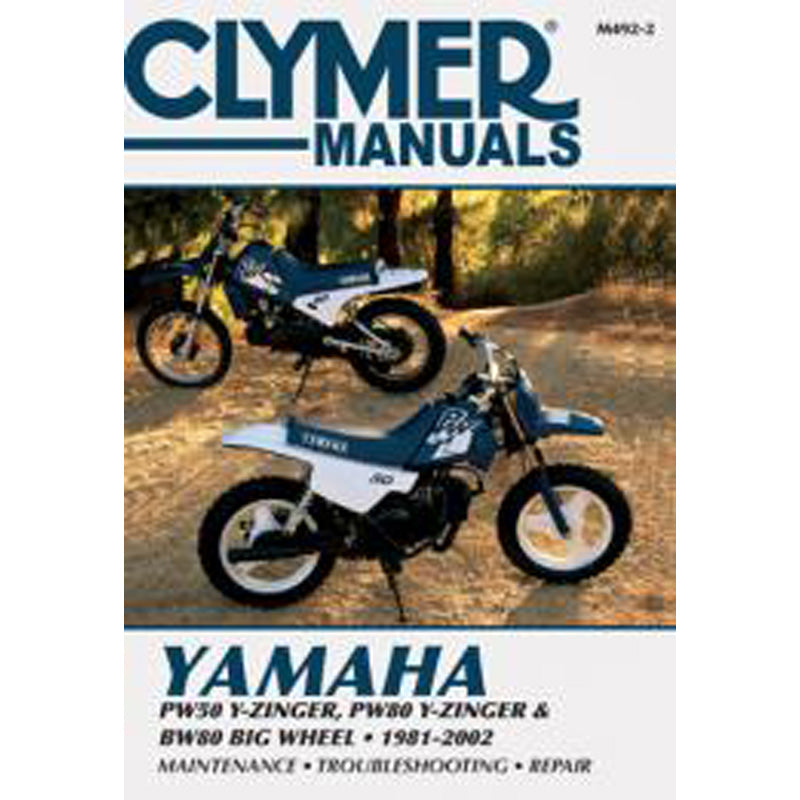

MODELS COVERED:

PW50 Y-Zinger (1981-1983, 1985-1987, 1990-2002)
PW80 Y-Zinger (1983, 1985, 1991-2002)
BW80 Big Wheel (1986-1988, 1990)

This Yamaha motorcycle manual is 416 pages.

QUICK REFERENCE DATA

CHAPTER ONE / GENERAL INFORMATION
Manual organization / Notes, cautions and warnings / Message to parents / Safety first / Cleaning parts / Handling gasoline safely / Service hints / Serial numbers / Warning labels / Torque specifications / Fasteners / Lubricants/ Sealants, cements and cleaners / Threadlocking compound / Expendable supplies / Basic hand tools / Precision measuring instruments / Test equipment / Special tools / Mechanic's tips / Ball bearing replacement / Seals / Specifications
