• MOSFET REGULATOR (POLARIS)

MOSFET REGULATOR (POLARIS)

MOSFET REGULATOR (POLARIS)

Out of stock
$236.99
$236.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

Our Mosfet regulator rectifiers are praised by ADV Moto! Read all about it online.
Read the article (English) >

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.


Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

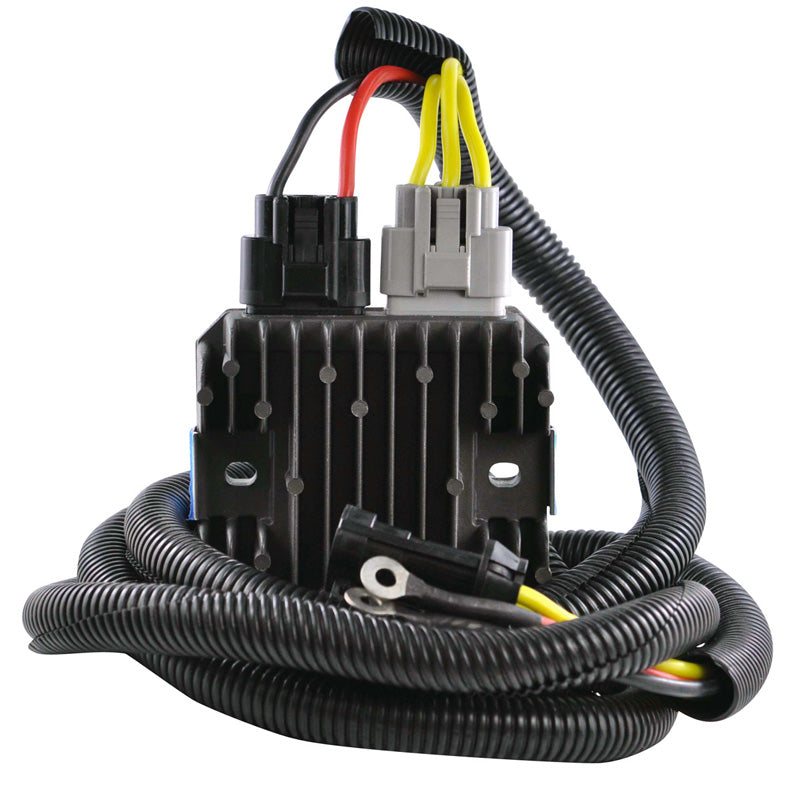

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 110 mm
Length: 121 mm
Height: 43 mm
Fixation holes center to center: 85 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Wires Length: 2500 mm
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Warning:

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Fitment notice:

Important notice: This product is a relocation kit to Polaris Recall Z-16-01-C (OEM # 2206620, 2206367, 2206473). We strongly recommend changing the location of the regulator to avoid it to overcharge due to dust, mud and rocks. If yo

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT POL RZR|RANGER|SPORTSMAN 570|1000 12-21
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS020-103775
ITL ID351-900127

Dimensions & Physical

Weight 2.5 lbs
Length2.8
Width6.3
Thickness6.3

Vehicle Fitment

Total Applications17
Applications POLARIS SPORTSMAN 570 BIG BOSS 6X6 EPS 2017POLARIS SPORTSMAN 570 BIG BOSS 6X6 EPS 2018POLARIS SPORTSMAN 570 BIG BOSS 6X6 EPS 2019POLARIS SPORTSMAN 570 BIG BOSS 6X6 EPS 2020POLARIS SPORTSMAN 570 TOURING 2014POLARIS SPORTSMAN 570 TOURING 2015POLARIS SPORTSMAN 570 TOURING 2016POLARIS SPORTSMAN 570 TOURING 2017POLARIS SPORTSMAN 570 TOURING 2018POLARIS SPORTSMAN 570 TOURING EPS 2015POLARIS SPORTSMAN 570 TOURING EPS 2016POLARIS SPORTSMAN 570 TOURING EPS 2017POLARIS SPORTSMAN 570 TOURING EPS 2018POLARIS SPORTSMAN 570 TOURING SP EPS 2015POLARIS SPORTSMAN 570 TOURING SP EPS 2016POLARIS SPORTSMAN 570 TOURING SP EPS 2017POLARIS SPORTSMAN 570 TOURING SP EPS 2018
Makes POLARIS
Models SPORTSMAN 570 BIG BOSS 6X6 EPSSPORTSMAN 570 TOURINGSPORTSMAN 570 TOURING EPSSPORTSMAN 570 TOURING SP EPS
Years 2014201520162017201820192020
