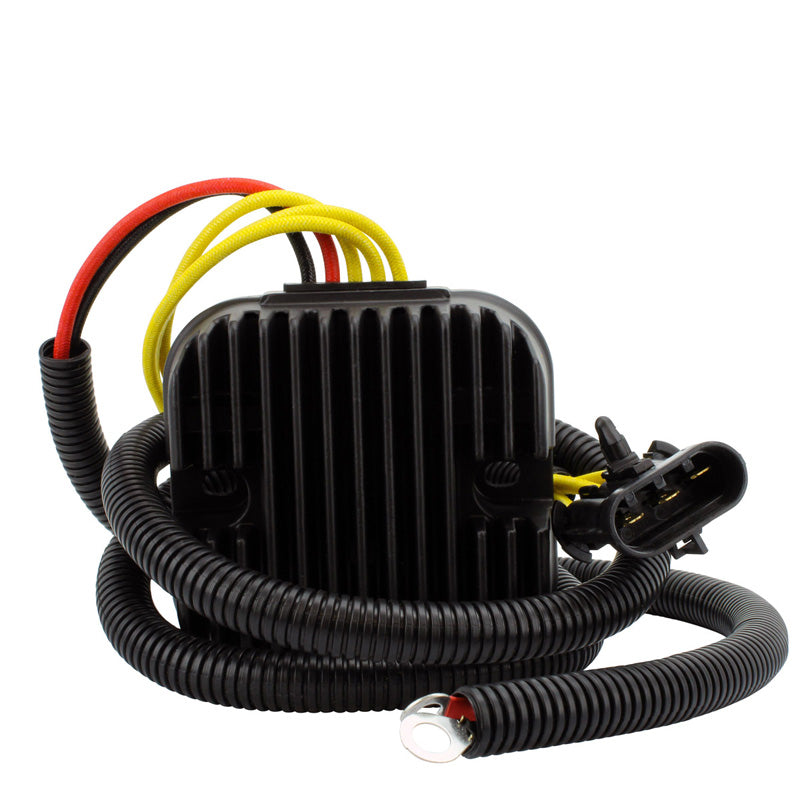

• MOSFET REGULATOR (POLARIS)

MOSFET REGULATOR (POLARIS)

MOSFET REGULATOR (POLARIS)

9 in stock
$147.99
$147.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

Specifications:

Dimensions :
Width : 50 mm
Length : 112 mm
Height : 108 mm
Fixation holes center to center : 84 mm
Wires Length: 600 mm & 1200 mm

Other specifications :
Number of plugs : 3
Number of pins : 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: <15 V
Operation Temperature: -20° to 85°

Warning:

When using this regulator on 2016-2018 Polaris Sportsman 570 models, please pay close attention to the stator and regulator wiring harness routing. The OEM wire routing was very poor, and allowed the harness to rub against the motor, damaging the insulation and damaging the charging system. We recommend routing your stator/regulator wiring outside of the frame rail, and securing the harness to the frame with zip ties. This should prevent any future damage to the wiring harness.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please Note: There were 2 different regulators used on 2017-2018 Polaris Sportsman 570 models. Please compare your original to our pictures.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
MOSFET REGULATOR (POLARIS)

$147.99

Product Specifications

General Information

Brandrms
LabelMOSFET REG POL SCRAMBLER|SPORTSMAN 325-1000 10-20
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS020-100174
ITL ID351-021041

Dimensions & Physical

Weight 2.61 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications65
Applications POLARIS SCRAMBLER 1000 XP EPS 2014POLARIS SCRAMBLER 1000 XP EPS 2015POLARIS SCRAMBLER 1000 XP EPS 2016POLARIS SCRAMBLER 850 2015POLARIS SCRAMBLER 850 2016POLARIS SCRAMBLER 850 XP 2014POLARIS SPORTSMAN 1000 TOURING XP EPS 2015POLARIS SPORTSMAN 1000 TOURING XP EPS 2016POLARIS SPORTSMAN 1000 XP EPS 2015POLARIS SPORTSMAN 1000 XP EPS 2016POLARIS SPORTSMAN 1000 XP HIGH LIFTER EPS 2016POLARIS SPORTSMAN 325 ETX 2015POLARIS SPORTSMAN 450 2016POLARIS SPORTSMAN 450 2017POLARIS SPORTSMAN 450 2018POLARIS SPORTSMAN 450 EPS 2016POLARIS SPORTSMAN 450 EPS 2017POLARIS SPORTSMAN 450 EPS 2018POLARIS SPORTSMAN 550 2011POLARIS SPORTSMAN 550 2012POLARIS SPORTSMAN 550 2013POLARIS SPORTSMAN 550 EPS 2012POLARIS SPORTSMAN 550 EPS 2013POLARIS SPORTSMAN 550 EPS 2014POLARIS SPORTSMAN 550 TOURING EPS 2011POLARIS SPORTSMAN 550 TOURING EPS 2012POLARIS SPORTSMAN 550 TOURING EPS 2013POLARIS SPORTSMAN 550 TOURING EPS 2014POLARIS SPORTSMAN 550 XP 2010POLARIS SPORTSMAN 570 2015POLARIS SPORTSMAN 570 2016POLARIS SPORTSMAN 570 EPS 2016POLARIS SPORTSMAN 570 EPS 2017POLARIS SPORTSMAN 570 EPS 2018POLARIS SPORTSMAN 570 EPS 2019POLARIS SPORTSMAN 570 EPS 2020POLARIS SPORTSMAN 570 EPS 2021POLARIS SPORTSMAN 570 SP EPS 2015POLARIS SPORTSMAN 570 SP EPS 2016POLARIS SPORTSMAN 570 SP EPS 2017POLARIS SPORTSMAN 570 SP EPS 2018POLARIS SPORTSMAN 570 SP EPS LE 2015POLARIS SPORTSMAN 850 2015POLARIS SPORTSMAN 850 2016POLARIS SPORTSMAN 850 HIGH LIFTER EPS 2016POLARIS SPORTSMAN 850 SP EPS 2015POLARIS SPORTSMAN 850 SP EPS 2016POLARIS SPORTSMAN 850 TOURING EPS 2011POLARIS SPORTSMAN 850 TOURING EPS 2012POLARIS SPORTSMAN 850 TOURING EPS 2013POLARIS SPORTSMAN 850 TOURING EPS 2014POLARIS SPORTSMAN 850 TOURING SP EPS 2015POLARIS SPORTSMAN 850 TOURING SP EPS 2016POLARIS SPORTSMAN 850 XP 2010POLARIS SPORTSMAN 850 XP 2011POLARIS SPORTSMAN 850 XP 2012POLARIS SPORTSMAN 850 XP 2013POLARIS SPORTSMAN 850 XP EPS 2012POLARIS SPORTSMAN 850 XP EPS 2013POLARIS SPORTSMAN 850 XP EPS 2014POLARIS SPORTSMAN X2 550 2011POLARIS SPORTSMAN X2 550 2012POLARIS SPORTSMAN X2 550 2013POLARIS SPORTSMAN X2 550 EPS 2014POLARIS SPORTSMAN X2 850 2011
Makes POLARIS
Models SCRAMBLER 1000 XP EPSSCRAMBLER 850SCRAMBLER 850 XPSPORTSMAN 1000 TOURING XP EPSSPORTSMAN 1000 XP EPSSPORTSMAN 1000 XP HIGH LIFTER EPSSPORTSMAN 325 ETXSPORTSMAN 450SPORTSMAN 450 EPSSPORTSMAN 550SPORTSMAN 550 EPSSPORTSMAN 550 TOURING EPSSPORTSMAN 550 XPSPORTSMAN 570SPORTSMAN 570 EPSSPORTSMAN 570 SP EPSSPORTSMAN 570 SP EPS LESPORTSMAN 850SPORTSMAN 850 HIGH LIFTER EPSSPORTSMAN 850 SP EPSSPORTSMAN 850 TOURING EPSSPORTSMAN 850 TOURING SP EPSSPORTSMAN 850 XPSPORTSMAN 850 XP EPSSPORTSMAN X2 550SPORTSMAN X2 550 EPSSPORTSMAN X2 850
Years 201020112012201320142015201620172018201920202021
