• MOSFET REGULATOR

MOSFET REGULATOR

MOSFET REGULATOR

Low stock! Only 2 left
$147.99
$147.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

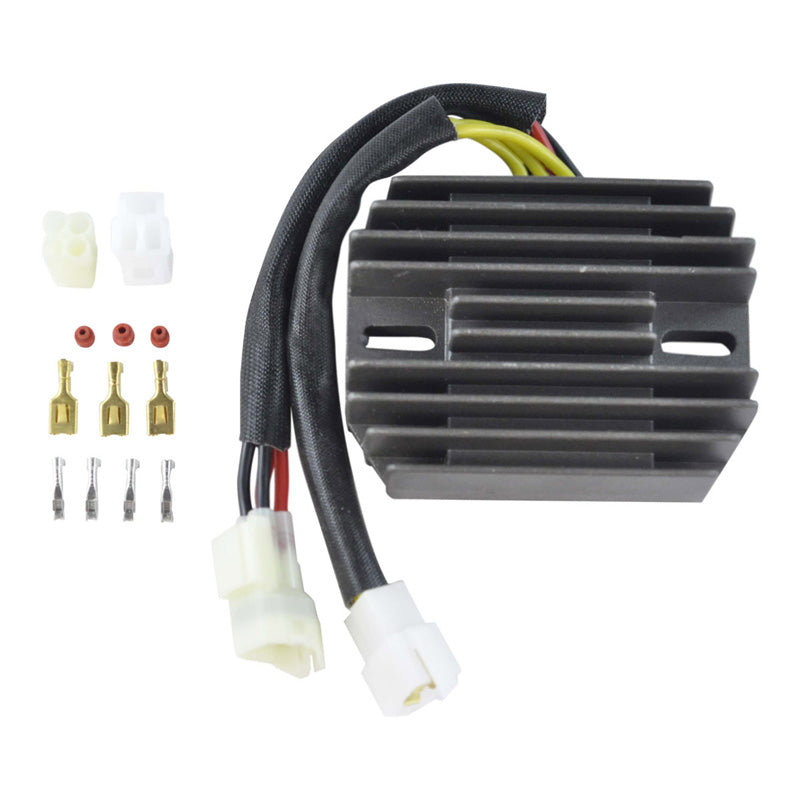

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions :
Width : 80mm
Length : 103mm
Height: 32mm
Fixation holes center to center : 75mm
Wires length: 200mm

Other specifications :
Number of plugs : 2
Number of pins : 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
MOSFET REGULATOR

$147.99

Product Specifications

General Information

Brandrms
LabelMOSFET REG A-C 375-500|SUZ SV650/1000|DL650 00-10
Universemoto,vtt_utv
Categorysysteme_de_charge
Supplier Part #RM30517
ITL ID351-021032

Dimensions & Physical

Weight 1.25 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications95
Applications ARCTIC CAT 375 2X4 AUTOMATIC 2002ARCTIC CAT 375 4X4 AUTOMATIC 2002ARCTIC CAT 400 2X4 AUTOMATIC FIS 2003ARCTIC CAT 400 2X4 AUTOMATIC FIS 2004ARCTIC CAT 400 2X4 MANUAL 2001ARCTIC CAT 400 2X4 MANUAL FIS 2002ARCTIC CAT 400 2X4 MANUAL FIS 2003ARCTIC CAT 400 2X4 MANUAL FIS 2004ARCTIC CAT 400 4X4 AUTOMATIC 2003ARCTIC CAT 400 4X4 AUTOMATIC 2004ARCTIC CAT 400 4X4 AUTOMATIC 2005ARCTIC CAT 400 4X4 AUTOMATIC FIS 2003ARCTIC CAT 400 4X4 AUTOMATIC FIS 2004ARCTIC CAT 400 4X4 AUTOMATIC FIS 2005ARCTIC CAT 400 4X4 AUTOMATIC FIS 2006ARCTIC CAT 400 4X4 AUTOMATIC FIS 2007ARCTIC CAT 400 4X4 AUTOMATIC FIS 2008ARCTIC CAT 400 4X4 AUTOMATIC TBX 2004ARCTIC CAT 400 4X4 AUTOMATIC TBX 2005ARCTIC CAT 400 4X4 AUTOMATIC TBX 2006ARCTIC CAT 400 4X4 AUTOMATIC TRV 2006ARCTIC CAT 400 4X4 AUTOMATIC TRV 2007ARCTIC CAT 400 4X4 AUTOMATIC TRV 2008ARCTIC CAT 400 4X4 AUTOMATIC VP 2005ARCTIC CAT 400 4X4 AUTOMATIC VP 2006ARCTIC CAT 400 4X4 MANUAL 2001ARCTIC CAT 400 4X4 MANUAL 2002ARCTIC CAT 400 4X4 MANUAL 2003ARCTIC CAT 400 4X4 MANUAL 2004ARCTIC CAT 400 4X4 MANUAL 2006ARCTIC CAT 400 4X4 MANUAL FIS 2002ARCTIC CAT 400 4X4 MANUAL FIS 2003ARCTIC CAT 400 4X4 MANUAL FIS 2004ARCTIC CAT 400 4X4 MANUAL FIS 2005ARCTIC CAT 400 4X4 MANUAL FIS 2006ARCTIC CAT 400 4X4 MANUAL FIS 2007ARCTIC CAT 400 4X4 MANUAL FIS 2008ARCTIC CAT 400 4X4 MANUAL VP 2005ARCTIC CAT 400 4X4 MANUAL VP 2006ARCTIC CAT 500 4X4 AUTOMATIC 2000ARCTIC CAT 500 4X4 AUTOMATIC 2001ARCTIC CAT 500 4X4 AUTOMATIC 2002ARCTIC CAT 500 4X4 AUTOMATIC 2009ARCTIC CAT 500 4X4 AUTOMATIC FIS 2002ARCTIC CAT 500 4X4 AUTOMATIC FIS 2003ARCTIC CAT 500 4X4 AUTOMATIC FIS 2004ARCTIC CAT 500 4X4 AUTOMATIC FIS 2005ARCTIC CAT 500 4X4 AUTOMATIC FIS 2006ARCTIC CAT 500 4X4 AUTOMATIC FIS 2007ARCTIC CAT 500 4X4 AUTOMATIC FIS 2008ARCTIC CAT 500 4X4 AUTOMATIC TBX 2002ARCTIC CAT 500 4X4 AUTOMATIC TBX 2003ARCTIC CAT 500 4X4 AUTOMATIC TBX 2004ARCTIC CAT 500 4X4 AUTOMATIC TBX 2005ARCTIC CAT 500 4X4 AUTOMATIC TBX 2006ARCTIC CAT 500 4X4 AUTOMATIC TRV 2003ARCTIC CAT 500 4X4 AUTOMATIC TRV 2004ARCTIC CAT 500 4X4 AUTOMATIC TRV 2005ARCTIC CAT 500 4X4 AUTOMATIC TRV 2006ARCTIC CAT 500 4X4 AUTOMATIC TRV 2008ARCTIC CAT 500 4X4 MANUAL 2002ARCTIC CAT 500 4X4 MANUAL 2009ARCTIC CAT 500 4X4 MANUAL FIS 2002ARCTIC CAT 500 4X4 MANUAL FIS 2003ARCTIC CAT 500 4X4 MANUAL FIS 2004ARCTIC CAT 500 4X4 MANUAL FIS 2005ARCTIC CAT 500 4X4 MANUAL FIS 2006ARCTIC CAT 500 4X4 MANUAL FIS 2007ARCTIC CAT 500 4X4 MANUAL FIS 2008SUZUKI DL650 V-STROM 2004SUZUKI DL650 V-STROM 2005SUZUKI DL650 V-STROM 2006SUZUKI DL650 V-STROM 2007SUZUKI DL650 V-STROM 2008SUZUKI DL650 V-STROM 2009SUZUKI SV1000S 2003SUZUKI SV1000S 2004SUZUKI SV1000S 2005SUZUKI SV1000S 2006SUZUKI SV1000S 2007SUZUKI SV650 2004SUZUKI SV650 2005SUZUKI SV650 2006SUZUKI SV650 2007SUZUKI SV650A 2008SUZUKI SV650A 2009SUZUKI SV650A 2010SUZUKI SV650S 2003SUZUKI SV650S 2004SUZUKI SV650S 2005SUZUKI SV650S 2006SUZUKI SV650S 2007SUZUKI SV650S 2008SUZUKI SV650S 2009SUZUKI SV650S 2010
Makes ARCTIC CATSUZUKI
Models 375 2X4 AUTOMATIC375 4X4 AUTOMATIC400 2X4 AUTOMATIC FIS400 2X4 MANUAL400 2X4 MANUAL FIS400 4X4 AUTOMATIC400 4X4 AUTOMATIC FIS400 4X4 AUTOMATIC TBX400 4X4 AUTOMATIC TRV400 4X4 AUTOMATIC VP400 4X4 MANUAL400 4X4 MANUAL FIS400 4X4 MANUAL VP500 4X4 AUTOMATIC500 4X4 AUTOMATIC FIS500 4X4 AUTOMATIC TBX500 4X4 AUTOMATIC TRV500 4X4 MANUAL500 4X4 MANUAL FISDL650 V-STROMSV1000SSV650SV650ASV650S
Years 20002001200220032004200520062007200820092010
