• MITSUBA 18-POLE STATOR (HONDA)

MITSUBA 18-POLE STATOR (HONDA)

MITSUBA 18-POLE STATOR (HONDA)

Low stock! Only 2 left
$280.99
$280.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

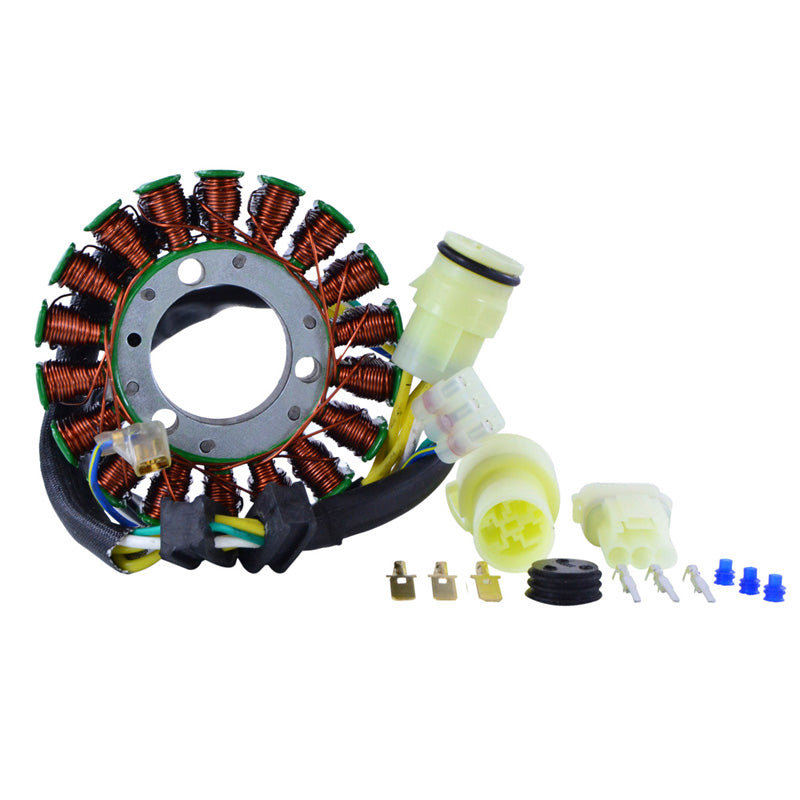

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 92 mm
Thickness : 16 mm
Length of wires stator to grommet : 70 mm
Length of wires grommet to plug : 270 mm
Length of pickup coil's wire to grommet : 20 mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6

Wire to wire resistance :
Alternator : Between each Yellow= 0.4 ohms +-20%
Source : Blue/Yellow to Ground = 350 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Fitment notice:

Two stators exists for the TRX 300 FW Fourtrax (12-Pole Denso & 18-Pole Mitsuba). Our stator replaces the 18-Pole Mitsuba stator. Please check your original stator before buying.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
MITSUBA 18-POLE STATOR (HONDA)

$280.99

Product Specifications

General Information

Brandrms
LabelSTATOR HON TRX300/FW 88-00
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS010-104213
ITL ID351-010355

Dimensions & Physical

Weight 1.53 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications26
Applications HONDA TRX300 2X4 FOURTRAX 1988HONDA TRX300 2X4 FOURTRAX 1989HONDA TRX300 2X4 FOURTRAX 1990HONDA TRX300 2X4 FOURTRAX 1991HONDA TRX300 2X4 FOURTRAX 1992HONDA TRX300 2X4 FOURTRAX 1993HONDA TRX300 2X4 FOURTRAX 1994HONDA TRX300 2X4 FOURTRAX 1995HONDA TRX300 2X4 FOURTRAX 1996HONDA TRX300 2X4 FOURTRAX 1997HONDA TRX300 2X4 FOURTRAX 1998HONDA TRX300 2X4 FOURTRAX 1999HONDA TRX300 2X4 FOURTRAX 2000HONDA TRX300FW 4X4 FOURTRAX 1988HONDA TRX300FW 4X4 FOURTRAX 1989HONDA TRX300FW 4X4 FOURTRAX 1990HONDA TRX300FW 4X4 FOURTRAX 1991HONDA TRX300FW 4X4 FOURTRAX 1992HONDA TRX300FW 4X4 FOURTRAX 1993HONDA TRX300FW 4X4 FOURTRAX 1994HONDA TRX300FW 4X4 FOURTRAX 1995HONDA TRX300FW 4X4 FOURTRAX 1996HONDA TRX300FW 4X4 FOURTRAX 1997HONDA TRX300FW 4X4 FOURTRAX 1998HONDA TRX300FW 4X4 FOURTRAX 1999HONDA TRX300FW 4X4 FOURTRAX 2000
Makes HONDA
Models TRX300 2X4 FOURTRAXTRX300FW 4X4 FOURTRAX
Years 1988198919901991199219931994199519961997199819992000
