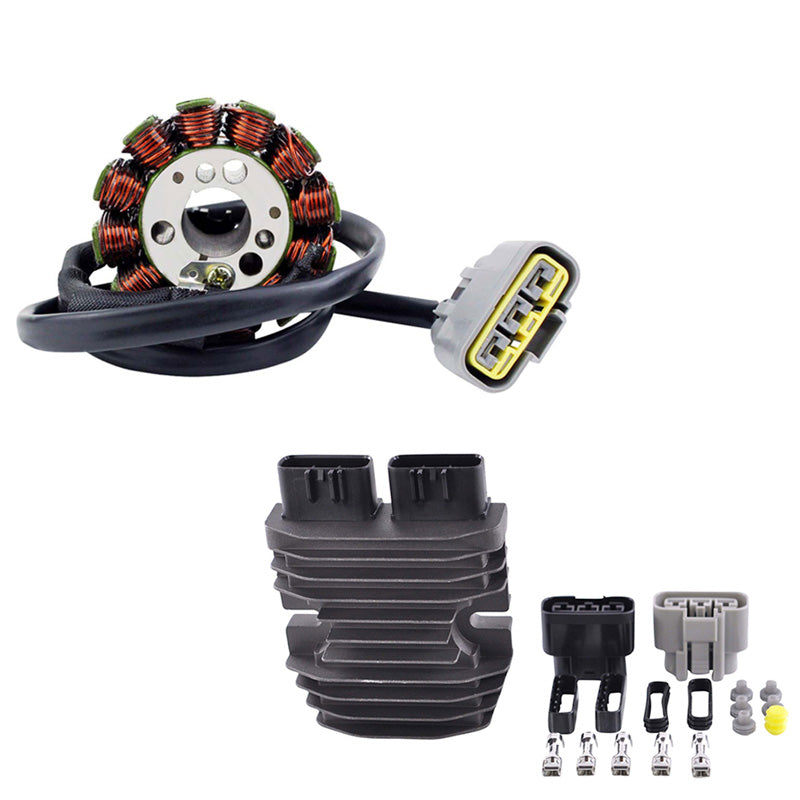

Brand New aftermarket Stator + Voltage Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Voltage Regulator Rectifier:

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Brand new aftermarket stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included

Specifications:

Voltage Regulator Rectifier Dimensions
Width : 30 mm
Length : 95 mm
Height: 110 mm
Fixation holes center to center : 78 mm

Other specifications :
Number of plugs : 2
Number of pins : 5

Generator Stator Dimensions
Interior diameter : 18 mm
Exterior diameter : 68 mm
Thickness : 42 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 500 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + VOLTAGE REGULATOR (YAMAHA)

$354.99

Product Specifications

General Information

Brandrms
LabelKIT YAM FZ1|YZF R1|FZ8 800 06-14
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-103939
ITL ID351-900182

Dimensions & Physical

Weight 0 lbs
Length9
Width13
Thickness2

Vehicle Fitment

Total Applications13
Applications YAMAHA FZ8N FZ8 2011YAMAHA FZ8N FZ8 2012YAMAHA FZS10 FZ-1 2006YAMAHA FZS10 FZ-1 2007YAMAHA FZS10 FZ-1 2008YAMAHA FZS10 FZ-1 2009YAMAHA FZS10 FZ-1 2010YAMAHA FZS10 FZ-1 2011YAMAHA FZS10 FZ-1 2012YAMAHA FZS10 FZ-1 2013YAMAHA FZS10 FZ-1 2014YAMAHA YZFR1 YZF-R1 2007YAMAHA YZFR1 YZF-R1 2008
Makes YAMAHA
Models FZ8N FZ8FZS10 FZ-1YZFR1 YZF-R1
Years 200620072008200920102011201220132014
