• KIT STATOR + VOLTAGE REGULATOR RECTIFIER (YAMAHA)

KIT STATOR + VOLTAGE REGULATOR RECTIFIER (YAMAHA)

KIT STATOR + VOLTAGE REGULATOR RECTIFIER (YAMAHA)

Low stock! Only 2 left
$457.99
$457.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

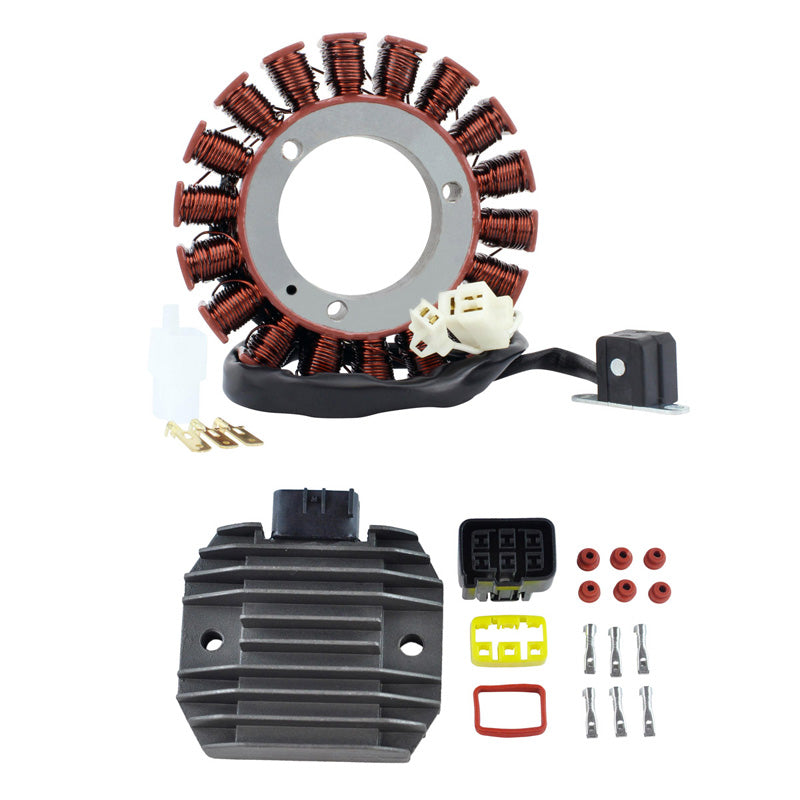

Brand New Kit Stator + Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.


Brand new aftermarket stator
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
Brand new aftermarket voltage regulator rectifier
  • Higher grade of electric components.
  • Improved heat sink and charging capabilities
  • The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Stator
Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 18 mm

Other specifications :
Number of wires: 3
Number of plugs: 2
Number of pins: 3

Wire to wire resistance :
Alternator: White between each White = 0.4 ohms +/-20%
Alternator: White to Ground = 0.L
Pickup: White to Black = 190 ohms +/-20%

Brand new aftermarket voltage regulator rectifier
Dimensions:
Width: 89 mm
Length: 91 mm
Height: 27 mm
Fixation holes center to center: 65 mm

Other specifications:
Number of plugs: 1
Number of pins: 6

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + VOLTAGE REGULATOR RECTIFIER (YAMAHA)

$457.99

Product Specifications

General Information

Brandrms
LabelKIT YAM V STAR 1100 XVS1100 99-02
Universemoto
Categorysysteme_de_charge
Supplier Part #RM23021
ITL ID351-900104

Dimensions & Physical

Weight 3.26 lbs
Length9
Width13
Thickness2

Vehicle Fitment

Total Applications7
Applications YAMAHA XVS11 V-STAR 1100 CUSTOM 1999YAMAHA XVS11 V-STAR 1100 CUSTOM 2000YAMAHA XVS11 V-STAR 1100 CUSTOM 2001YAMAHA XVS11 V-STAR 1100 CUSTOM 2002YAMAHA XVS11A V-STAR 1100 CLASSIC 2000YAMAHA XVS11A V-STAR 1100 CLASSIC 2001YAMAHA XVS11A V-STAR 1100 CLASSIC 2002
Makes YAMAHA
Models XVS11 V-STAR 1100 CUSTOMXVS11A V-STAR 1100 CLASSIC
Years 1999200020012002
