• KIT STATOR + VOLTAGE REGULATOR RECTIFIER (HONDA)

KIT STATOR + VOLTAGE REGULATOR RECTIFIER (HONDA)

KIT STATOR + VOLTAGE REGULATOR RECTIFIER (HONDA)

Out of stock
$398.99
$398.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

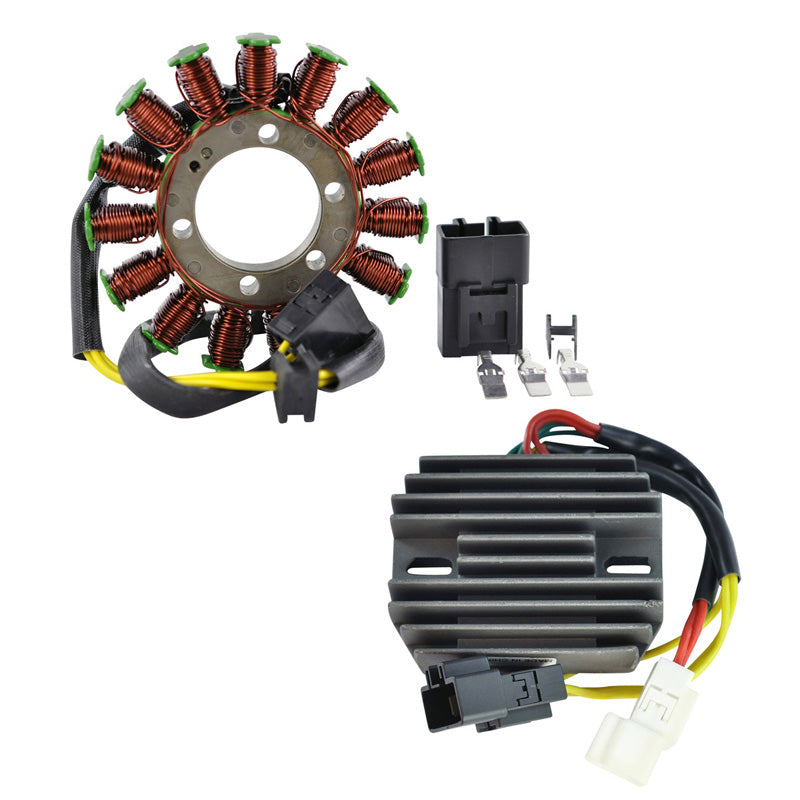

Brand New Kit Generator Stator + Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Connector included
  • All products shipped are tested

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Generator Stator
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Rubber grommet included
Voltage Regulator Rectifier
  • The Quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Generator Stator

Dimensions :
Interior diameter : 40mm
Exterior diameter : 115mm
Thickness : 12mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 255mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%


Voltage Regulator Rectifier

Dimensions :
Width : 80mm
Length : 90mm
Height: 27mm
Fixation holes center to center : 65mm
Wires length: 260mm and 200mm

Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT HON CBR600RR 07-12
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-101745
ITL ID351-900160

Dimensions & Physical

Weight 0 lbs
Length9
Width13
Thickness2

Vehicle Fitment

Total Applications6
Applications HONDA CBR600RR 2007HONDA CBR600RR 2008HONDA CBR600RR 2009HONDA CBR600RR 2010HONDA CBR600RR 2011HONDA CBR600RR 2012
Makes HONDA
Models CBR600RR
Years 200720082009201020112012
