• KIT STATOR + VOLTAGE REGULATOR RECTIFIER (HONDA)

KIT STATOR + VOLTAGE REGULATOR RECTIFIER (HONDA)

KIT STATOR + VOLTAGE REGULATOR RECTIFIER (HONDA)

Out of stock
$279.99
$279.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

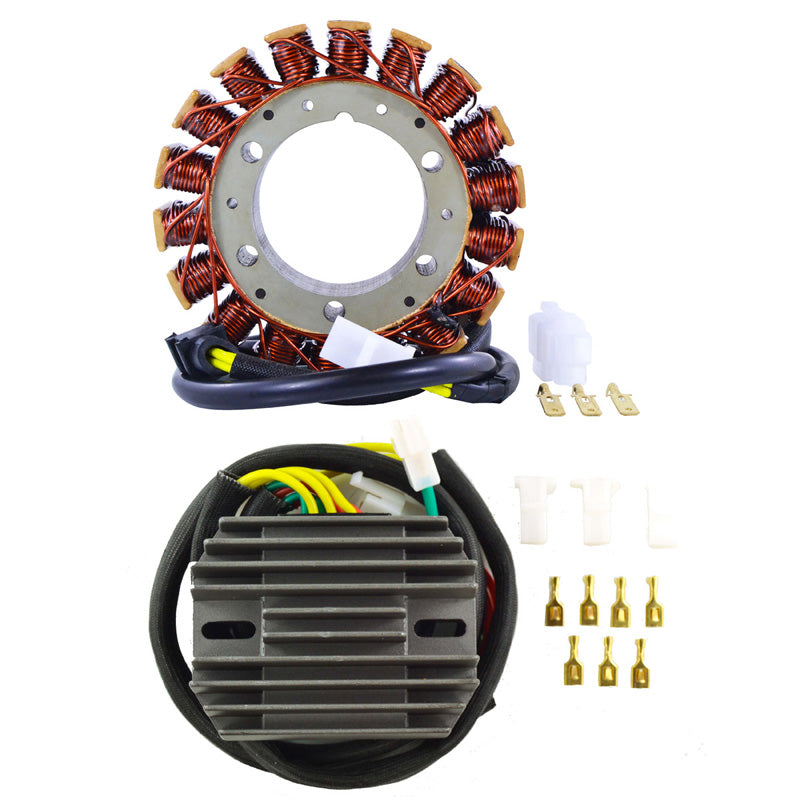

Brand New Kit Stator + Voltage Regulator Rectifier

  • All shipped products are tested

    • We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

    *All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Generator Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • No assembly required
  • Higher grade of electric components
  • Improved heat sink and charging capabilities
  • The quality exceeds the OEM equipment

Specifications:

Dimensions Stator :
Interior diameter : 53mm
Exterior diameter : 115 mm
Thickness : 27 mm
Length of wires stator to plug : 600 mm

Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = O.L. on display

Dimensions Regulator:
Width: 80 mm
Length: 103 mm
Height: 32 mm
Wires length: 630 mm & 635 mm br/> Fixation holes center to center: 75 mm

Other specifications :
Number of plugs: 3
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A 300W-200W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT HON SHADOW|SPIRIT 1100 87-07
Universemoto
Categorysysteme_de_charge
Supplier Part #RM22968
ITL ID351-900082

Dimensions & Physical

Weight 0 lbs
Length3
Width13
Thickness9.25

Vehicle Fitment

Total Applications25
Applications HONDA VT1100C SHADOW 1987HONDA VT1100C SHADOW 1988HONDA VT1100C SHADOW 1992HONDA VT1100C SHADOW 1993HONDA VT1100C SHADOW 1994HONDA VT1100C SHADOW 1995HONDA VT1100C SHADOW 1996HONDA VT1100C SHADOW SPIRIT 1997HONDA VT1100C SHADOW SPIRIT 1998HONDA VT1100C SHADOW SPIRIT 1999HONDA VT1100C SHADOW SPIRIT 2000HONDA VT1100C SHADOW SPIRIT 2001HONDA VT1100C SHADOW SPIRIT 2002HONDA VT1100C SHADOW SPIRIT 2003HONDA VT1100C SHADOW SPIRIT 2004HONDA VT1100C SHADOW SPIRIT 2005HONDA VT1100C SHADOW SPIRIT 2006HONDA VT1100C SHADOW SPIRIT 2007HONDA VT1100C2 SHADOW ACE 1995HONDA VT1100C2 SHADOW ACE 1996HONDA VT1100C2 SHADOW ACE 1997HONDA VT1100T SHADOW ACE TOUR 1998HONDA VT1100T SHADOW ACE TOUR 1999HONDA VT1100T SHADOW ACE TOUR 2000HONDA VT1100T SHADOW ACE TOUR 2001
Makes HONDA
Models VT1100C SHADOWVT1100C SHADOW SPIRITVT1100C2 SHADOW ACEVT1100T SHADOW ACE TOUR
Years 198719881992199319941995199619971998199920002001200220032004200520062007
