• KIT STATOR + VOLTAGE REGULATOR RECTIFIER

KIT STATOR + VOLTAGE REGULATOR RECTIFIER

KIT STATOR + VOLTAGE REGULATOR RECTIFIER

Low stock! Only 2 left
$398.99
$398.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

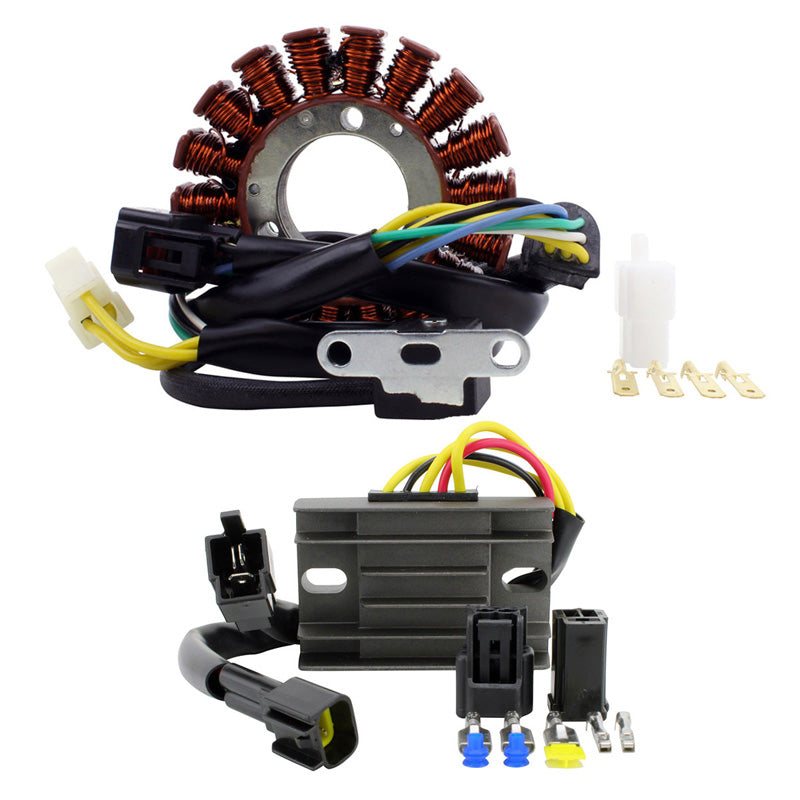

Brand new aftermarket high output stator and voltage regulator rectifier kit

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Brand new high output aftermarket stator
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.


Brand new aftermarket voltage regulator rectifier
  • You must re-install one of your original connectors
  • The Quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components.

Specifications:

Dimensions Stator :
Interior diameter: 34 mm
Exterior diameter: 93 mm
Thickness: 14 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 400 mm & 600 mm
Length of pickup coil's wire to grommet: 110 mm

Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance:
Alternator: = 0.4 ohms +/-20%
Pickup: = 350 ohms =+/-20%
Position Sensor: 0.2 ohms =+/-20%

Dimensions Voltage Regulator Rectifier :
Width : 48 mm
Length : 75 mm
Height: 25 mm
Fixation holes center to center : 60 mm

Other specifications :
Number of plugs : 1
Number of pins : 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 25 A - 35 A / 300 W - 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20? to 85?

Secure your shopping experience with various safe and trusted payment methods.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
FITMENT INFORMATION BELOW
KIT STATOR + VOLTAGE REGULATOR RECTIFIER

$398.99

Product Specifications

General Information

Brandrms
LabelKIT SUZ DRZ 400|E|S KAW KLX 400 2000-16
Universemoto
Categorysysteme_de_charge
Supplier Part #RM22956
ITL ID351-900074

Dimensions & Physical

Weight 0 lbs
Length3
Width13
Thickness9.25

Vehicle Fitment

Total Applications25
Applications KAWASAKI KLX400-B 2003KAWASAKI KLX400-B 2004SUZUKI DR-Z400E 2001SUZUKI DR-Z400E 2002SUZUKI DR-Z400E 2003SUZUKI DR-Z400E 2004SUZUKI DR-Z400E 2005SUZUKI DR-Z400E 2006SUZUKI DR-Z400E 2007SUZUKI DR-Z400S 2000SUZUKI DR-Z400S 2001SUZUKI DR-Z400S 2002SUZUKI DR-Z400S 2003SUZUKI DR-Z400S 2004SUZUKI DR-Z400S 2005SUZUKI DR-Z400S 2006SUZUKI DR-Z400S 2007SUZUKI DR-Z400S 2008SUZUKI DR-Z400S 2009SUZUKI DR-Z400S 2011SUZUKI DR-Z400S 2012SUZUKI DR-Z400S 2013SUZUKI DR-Z400S 2014SUZUKI DR-Z400S 2015SUZUKI DR-Z400S 2016
Makes KAWASAKISUZUKI
Models DR-Z400EDR-Z400SKLX400-B
Years 2000200120022003200420052006200720082009201120122013201420152016
