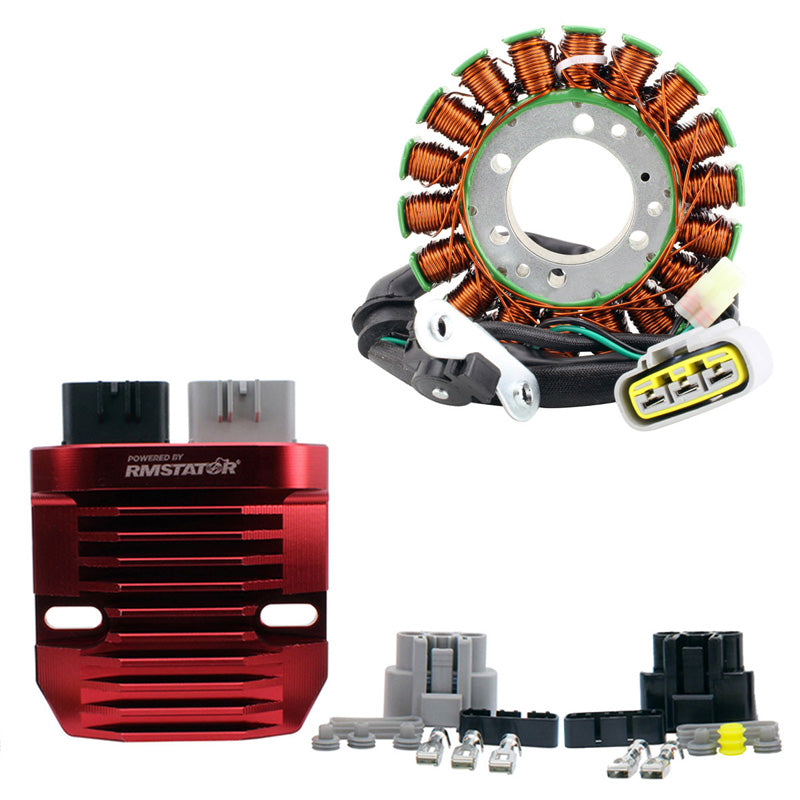

• KIT STATOR + RMKIT STATOR RED MACHINED ALUMINUM MOSFET REGULATOR (TRIUMPH)

KIT STATOR + RMKIT STATOR RED MACHINED ALUMINUM MOSFET REGULATOR (TRIUMPH)

KIT STATOR + RMKIT STATOR RED MACHINED ALUMINUM MOSFET REGULATOR (TRIUMPH)

Low stock! Only 2 left
$472.99
$472.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Brand new aftermarket Stator + Red Machined Aluminum Mosfet Regulator Kit



  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

stator



  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included



Machined Aluminum Mosfet Regulator

Our new red machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.



  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components





Why use Mosfet Enhanced technology?





Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.

Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.

Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.



Specifications:

Dimensions Stator : Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 250 mm
Length of wires grommet to plug # 1 : 195 mm
Length of wires grommet to plug # 2 : 500 mm
Length of pickup coil's wire to grommet : 280 mm



Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator : Between each Black = 0.6 ohms +-20%
Pickup : Green to Grey = 244 ohms +-20%

Dimensions Red Machined Aluminum Mosfet Regulator : Width : 103 mm
Length : 103 mm
Height : 28 mm
Fixation holes center to center : 80 mm



Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage : 14.5 V +- 0.5 V
Maximum Charging Current : 50 A / 500 W
Open Circuit Voltage : 15 V
Operation Temperature : -20?C to 85?C

Warning:

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note That there are multiple possible regulators and stators for Street Triple. Please refer to the notes below :

Street Triple Standard This part will only fit Street triple Standard with a VIN HIG
